Bently Nevada | Standard Mount Probe | 21504-00-08-10-02

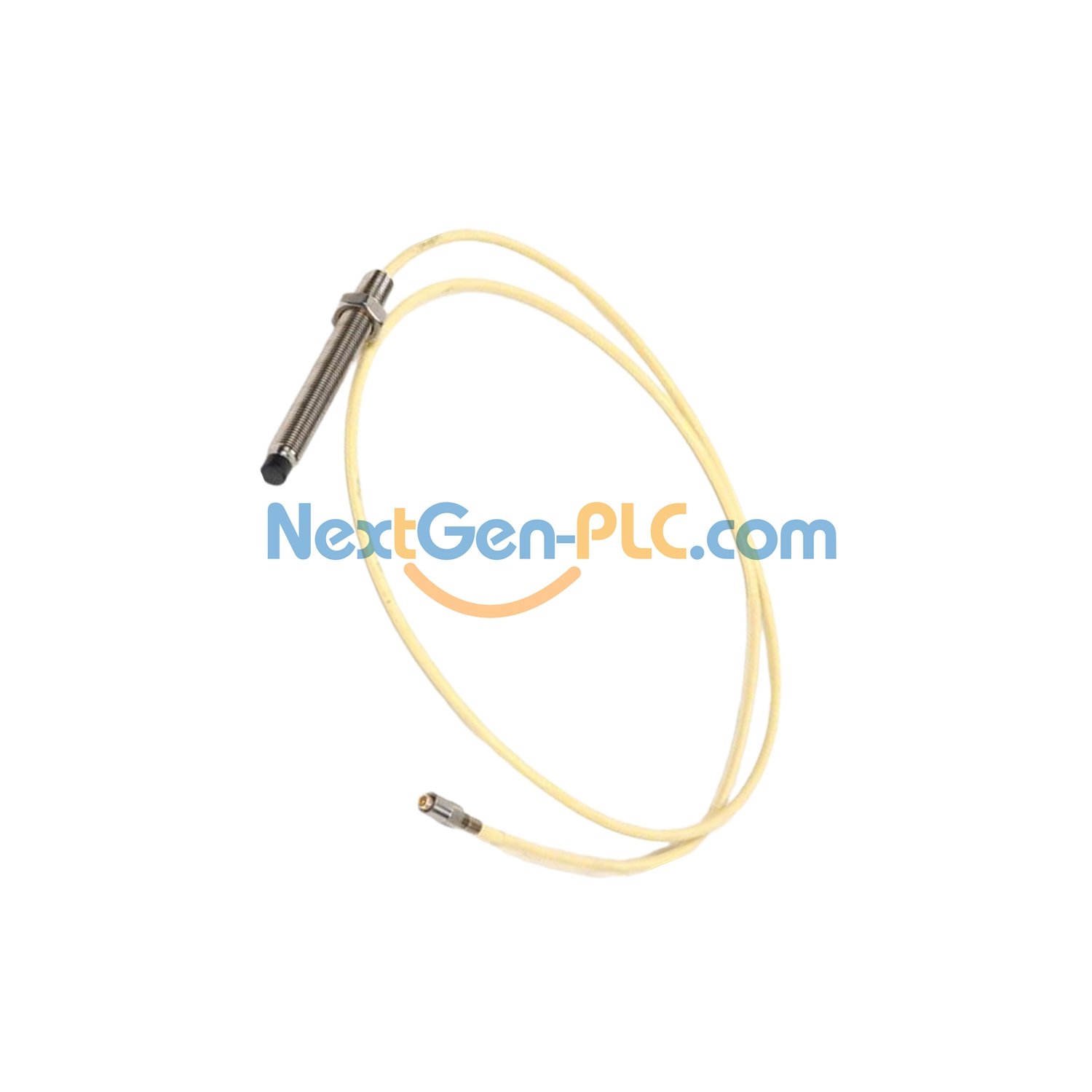

Bently Nevada Proximity Vibration Probe 21504-00-08-10-02 | New Factory-Sealed Sensor

Description

A new, factory-sealed vibration sensor from Bently Nevada. Used to measure machine vibrations in industrial settings. Ready to install straight from the package.

Technical Data

Model Suffix (21504-00-08-10-02)

00: Unthreaded length – 0 mm
08: Case length – 80 mm
10: Total length – 1.0 meter (can vary: +0.25m/-0.10m)
02: Connector – Small male coaxial

Key Specs

Brand: Bently Nevada
Model: Proximity Vibration Probe (21504-00-08-10-02)
Probe size: 8 mm
Threads: 3/8-24 (standard case)
Power: -17.5V to -26V dc (max 12 mA)
Output:
Measuring range: 80 mils (2.0 mm), starts ~10 mils (0.25 mm) from probe tip
Output scale: 200 mV/mil (7.87 V/mm), ±4% (when calibrated)
Accuracy: Within 0.8 mils (0.02 mm) (calibrated)
Frequency: 0-10 kHz (0-600,000 cpm)
Temp impact: ~-396 scale change at +150°F (+65°C) (50 mils gap)

Environment Limits

Proximitor: -60°F to +212°F (-51°C to +100°C)
Probe & cable: -30°F to +350°F (-34°C to +177°C)
Humidity: Up to 95% (no condensation)
Resists: Air, water, oil, ammonium hydroxide, 10% sulfuric acid, MEK, DMF

Install Tips

Comes with a small male coaxial connector. No lead armor makes setup easy.

Works With

Fits most common industrial monitoring systems.

What’s in Box

Probe, extension cable, small male coaxial connector (factory-sealed).
Download PDF file here:7200 Proximity Transducer Systems
