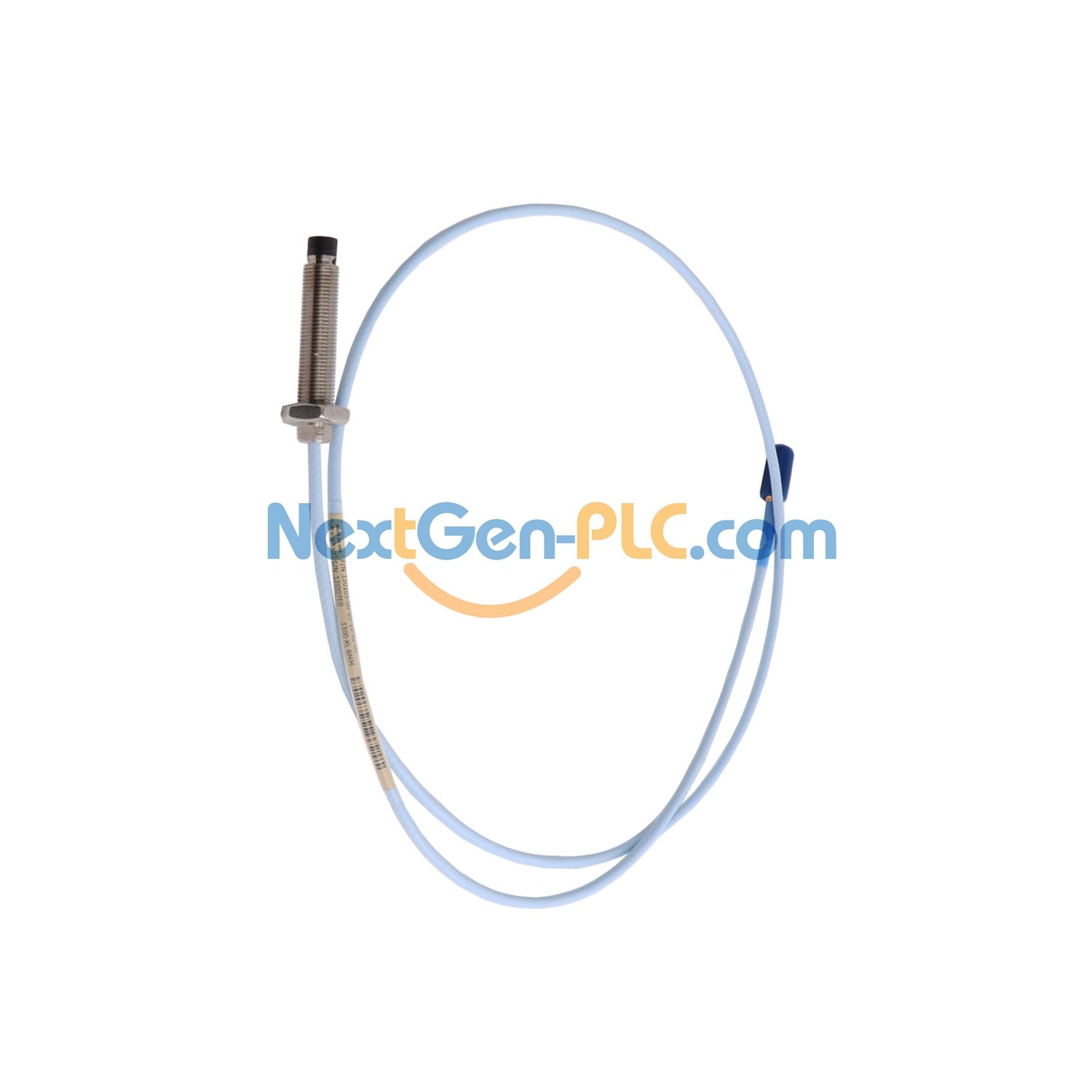

Bently Nevada – Proximity Probes 330709-000-070-10-02-00

Bently Nevada 3300 XL 11mm Proximity Probe – Trusted for Machine Monitoring

What It Does

This probe helps check machine parts like shafts and gears. It works in tough spots, from very cold to very hot. Made with strong materials, it lasts long and gives good data for keeping machines running well.

Key Facts (Technical Data)

Brand: Bently Nevada
Model: 330709-000-070-10-02-00
Type: 3300 XL 11mm Proximity Probe
Thread: M16 x 1.5 (stainless steel case)
Lengths:
Unthreaded: 0mm
Case: 70mm
Total: 1m (3.3ft)
Resistance: 5.9 ± 0.5 ohms (1m cable)
Cable: 75Ω triaxial, FEP insulated (1/5/9m options)
Connector: Mini coaxial ClickLoc (standard)

Use Tips

Target Size: Flat surfaces need at least 30.5mm (1.2in) width. Shafts need at least 152mm (6in) diameter.
Temp Range: Works from -52°C to 177°C (-62°F to 351°F). Avoid temps below -34°C (30°F) to keep it safe.

Install Guide

Torque: Screw probe case tight (63.3 N•m / 560 in•lb). Connector: finger tight, max 0.565 N•m (5 in•lb).
Bend: Don’t bend less than 25.4mm (1in) radius.
Thread: Screw in up to 24mm deep.

What’s Inside the Box

1x 330709-000-070-10-02-00 probe
1x 1m triaxial cable (with ClickLoc connector)
1x quick-start guide
1x material cert (AISI 304 stainless case, PPS tip)

Warranty

1-year warranty covers issues from making or materials. No coverage for damage from wrong use.

Real-World Uses

Factories: Checks turbine shafts (152mm+ diameter) to stop breaks.
Pumps: Monitors gear wear in 30.5mm+ flat parts, cuts repair time by 20%.
Power Plants: Works in 170°C heat to track compressor health.

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
