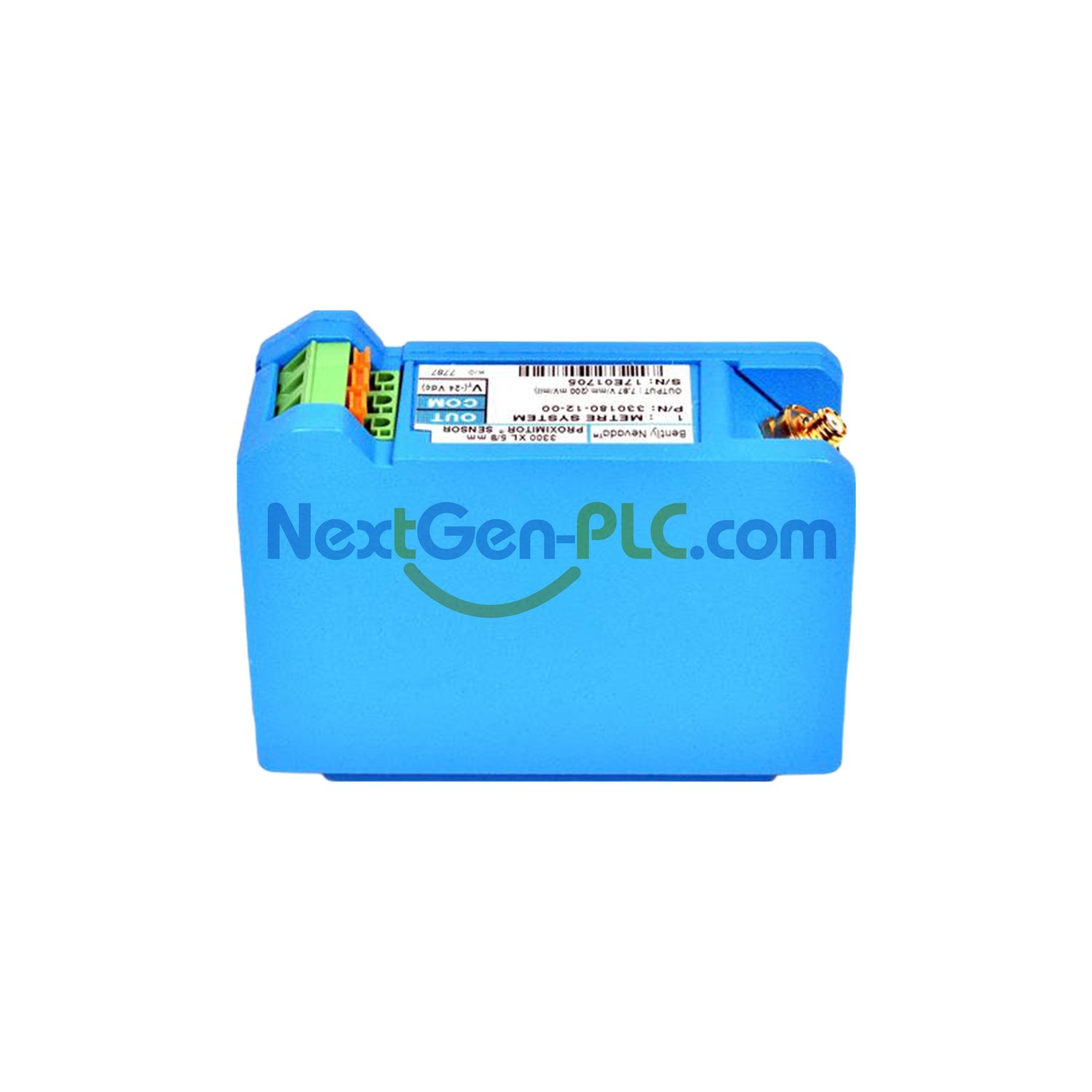

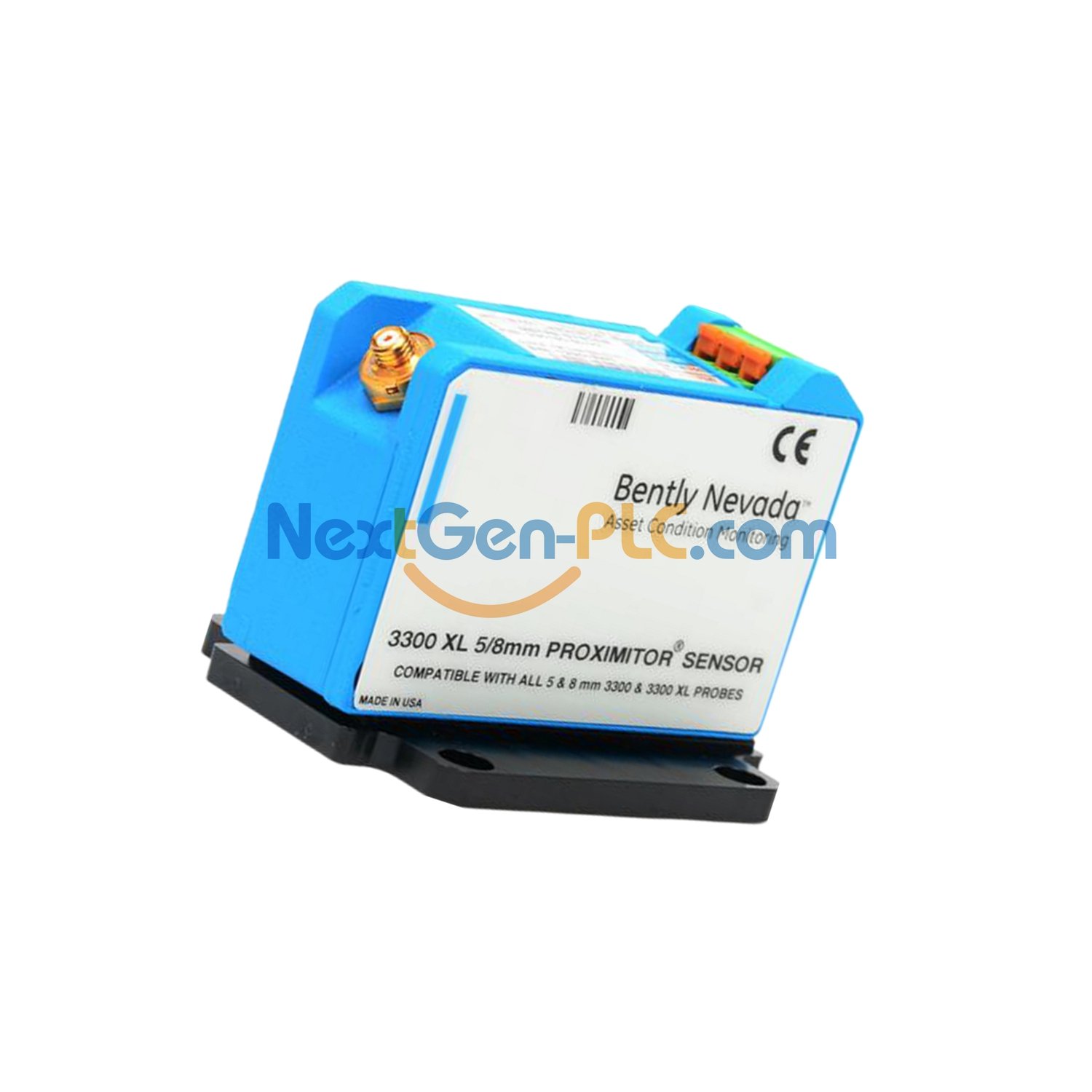

Bently Nevada 3300 XL Proximitor Sensor
Thin vibration sensor for machines. Fights radio noise well. Mounts on panel or DIN rail. Set for AISI 4140 steel at the factory.
Complete Model: 330878-51-05
| 330878 | Base model |
| -51 | 5.0m cable with panel mount |
| -05 | Multiple approvals |
Technical Data
| Brand | Bently Nevada |
| Model | 330878-51-05 |
| Power | -17.5Vdc to -26Vdc (12mA max) |
| Output | 50 ohms |
| Cable | 69.9 pF/m (21.3 pF/ft) |
| Temp Range | -51°C to +100°C |
| Housing | A380 aluminum |
Key Features
- Mount on DIN rail or panel
- Easy wiring with SpringLoc terminals (no tools)
- CE certified. Fights noise very well.
- Set for AISI 4140 steel. Other materials on request.
Works With
All 3300 XL 50mm probes. Needs standard cables.
Setup Guide
Mount on panel with included parts. Keep voltage at -23.5Vdc or lower for best results.
Certifications
Meets many world standards. CE mark for Europe. No special mounting needed.
What’s in the Box
- Sensor unit
- Mounting parts
- Setup guide
Download PDF file here:3300 XL 50 mm Proximity Transducer System Datasheet
