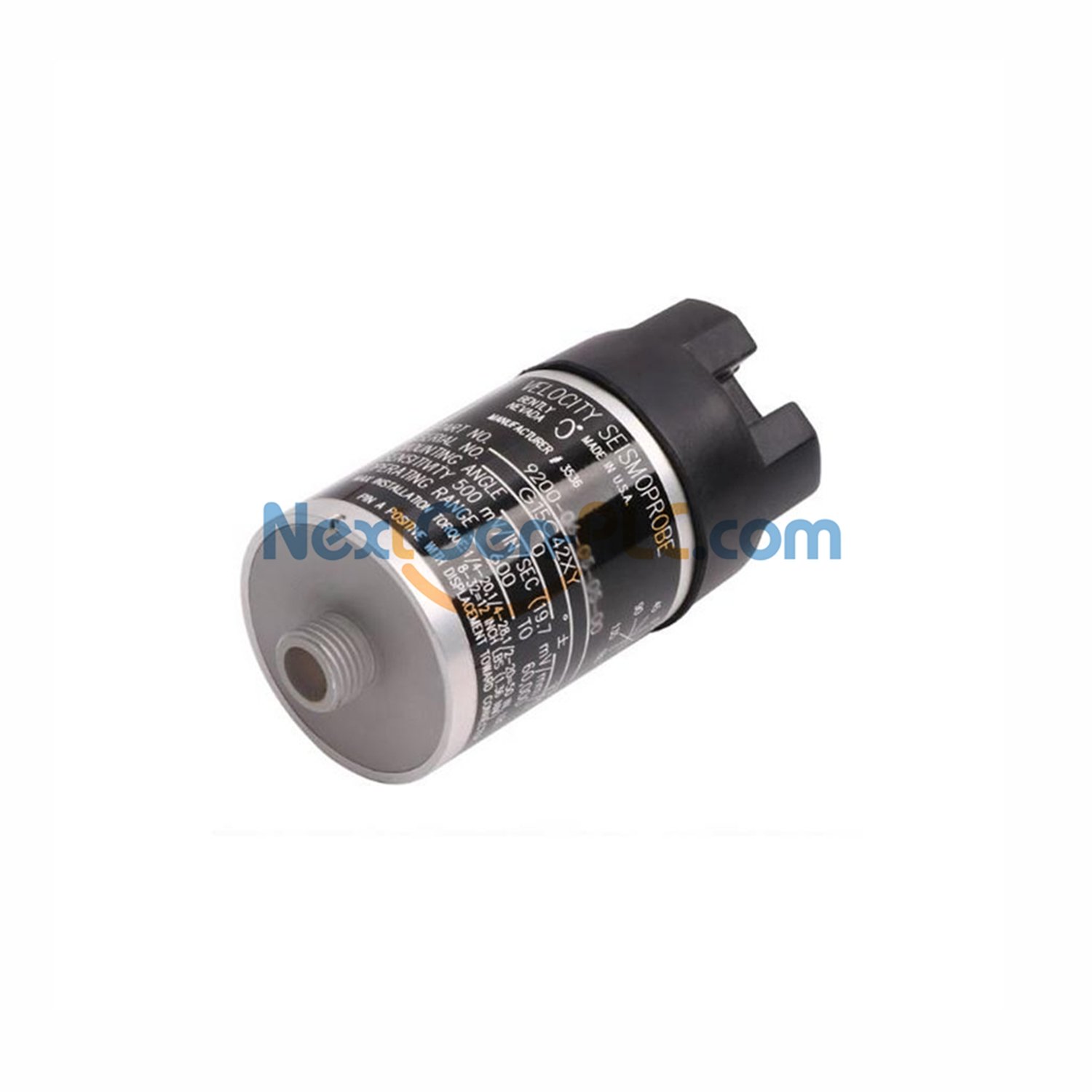

Bently Nevada 9200 Two-Wire Vibration Sensor: Precision Motion Detection

Core Specifications

Model: 9200-03-05-05-00
Sensitivity: 20mV/mm/s (±5%)
Range: 25mm/s velocity | 2.54mm displacement
Temp Range: -29°C to +121°C

Technical Highlights

• 10kΩ calibration load for ±0.2%/°C stability
• 1.25kΩ coil resistance (±5% tolerance)
• 125mH locked coil inductance
• IP54 equivalent dust/moisture protection

Installation Guide

1. Mount at 90° ±2.5° angle
2. Use 1/2-in 20 UNF-3A stud
3. Connect via top terminal block

Package Includes

• Sensor unit (41mm diameter)
• Neoprene gasket
• Technical documentation
• 1-year factory warranty

Industrial Application

Monitors gas compressor vibrations at 4.5Hz-100Hz
Maintains accuracy in 95% humidity environments

Download PDF file here:9200 and 74712 Seismoprobe Velocity Transducers Datasheet – 141626
