Bently Nevada | 330903-00-03-05-12-05 | 3300 NSv Proximity Probes

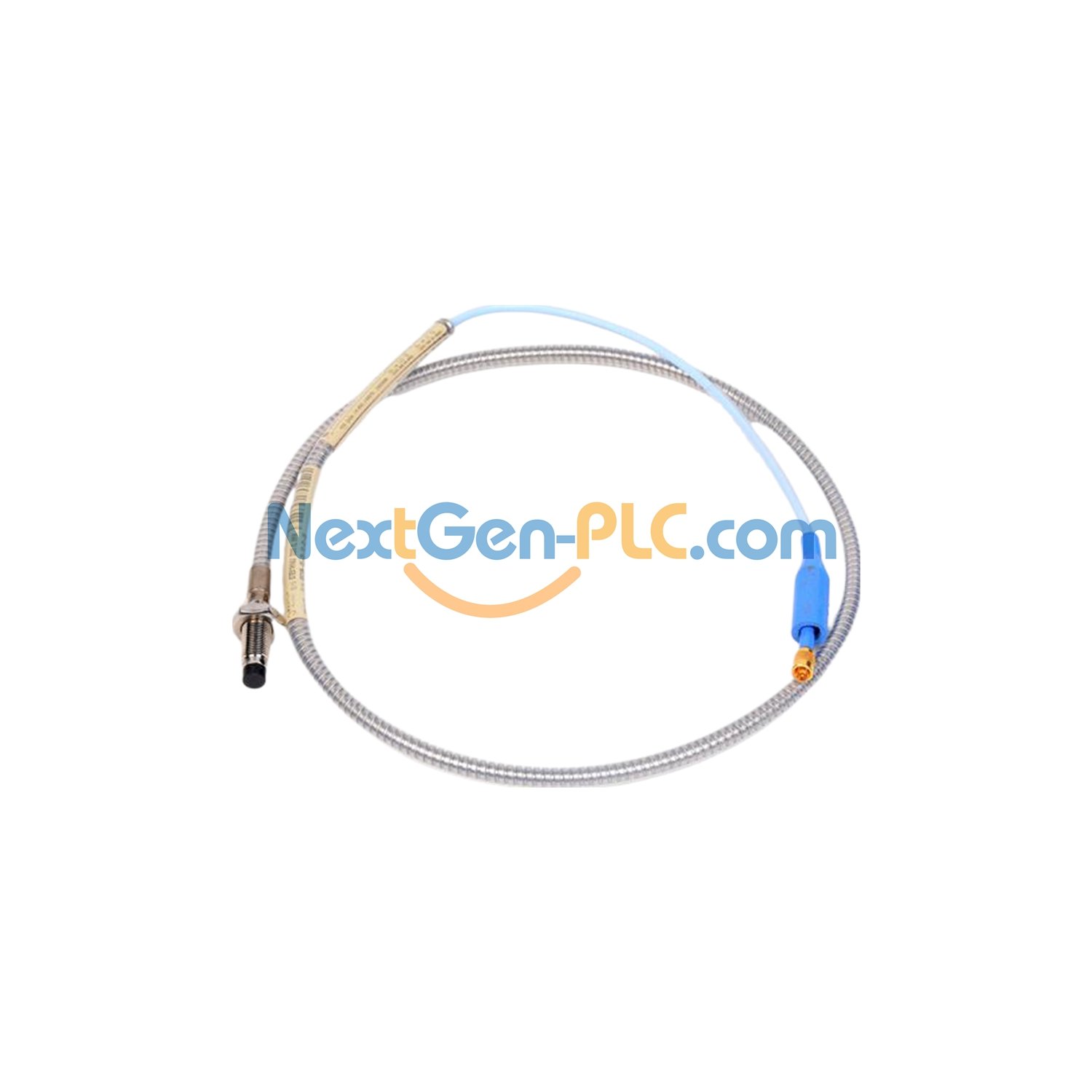

Bently Nevada 330903-00-03-05-12-05 3300 NSv Proximity Probe

Model Breakdown (Tree View)

330903-00-03-05-12-05
├─ Base Model: 330903 (M8X1 thread, no armor)
├─ Unthreaded Length: -00 (00 mm)
├─ Case Length: -03 (30 mm)
├─ Total Length: -05 (0.5 meters/20 in)
├─ Connector Type: -12 (Mini ClickLoc, FluidLoc cable)
└─ Approvals: -05 (Multiple certifications)

What It Does

This Bently Nevada sensor works well in tough industrial spots. It resists chemicals better than older 3300 RAM models, making it great for process compressors. It also beats 3000-series 190 probes in side-view performance at the same target distance.

Key Specs

Range: 0.25-1.75 mm (10-70 mils). Best gap: 1.0 mm (40 mils).
Scale Factor: 7.87 V/mm (200 mV/mil) ±12.5%/-20% (includes errors).
Resistance: 4.0 ±0.5 ohms (0.5m probe).
Frequency: 0-10 kHz (-3 dB max, up to 305m wiring).
Target Size: Min 8.9mm (0.35in); best 13mm (0.5in).
Materials: PPS tip, stainless steel case, 75Ω FEP cable.
Temp: -52°C to +177°C (-62°F to +351°F) (work/storage).

Install Tips

Torque: Tighten by hand. Max: 0.56 N•m (5 in•lb).
Bend: Min 25.4mm (1.0in) (with/without armor).
Wiring: Use 0.2-1.5 mm² (16-24 AWG) shielded cable. Max length: 305m (1,000ft).

Works With

Fits Bently Nevada’s 3300 RAM probes and extension cables.

Packaging

Brand new, factory-sealed.
Download PDF file here:3300 XL NSv Proximity Transducer System Datasheet – 147385
