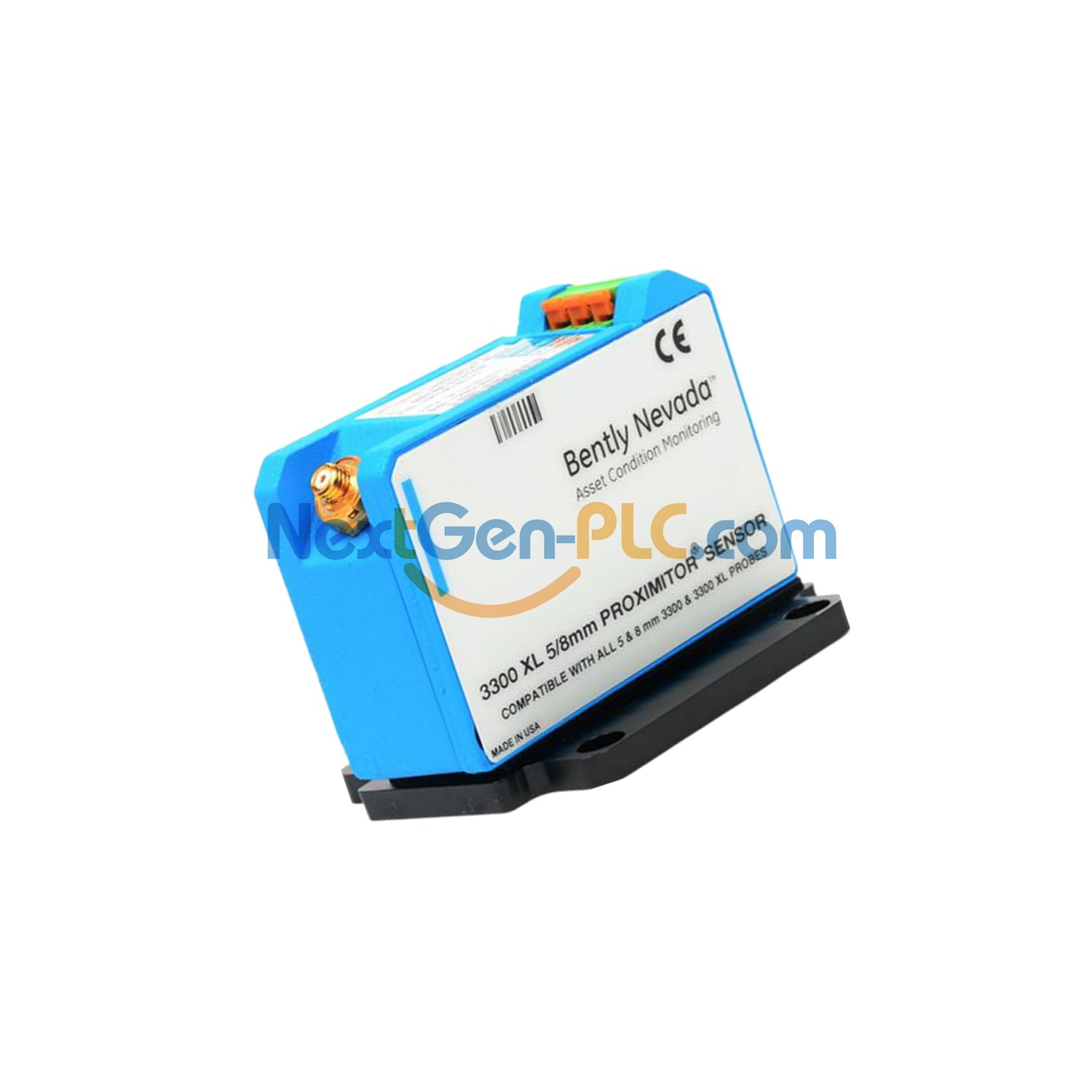

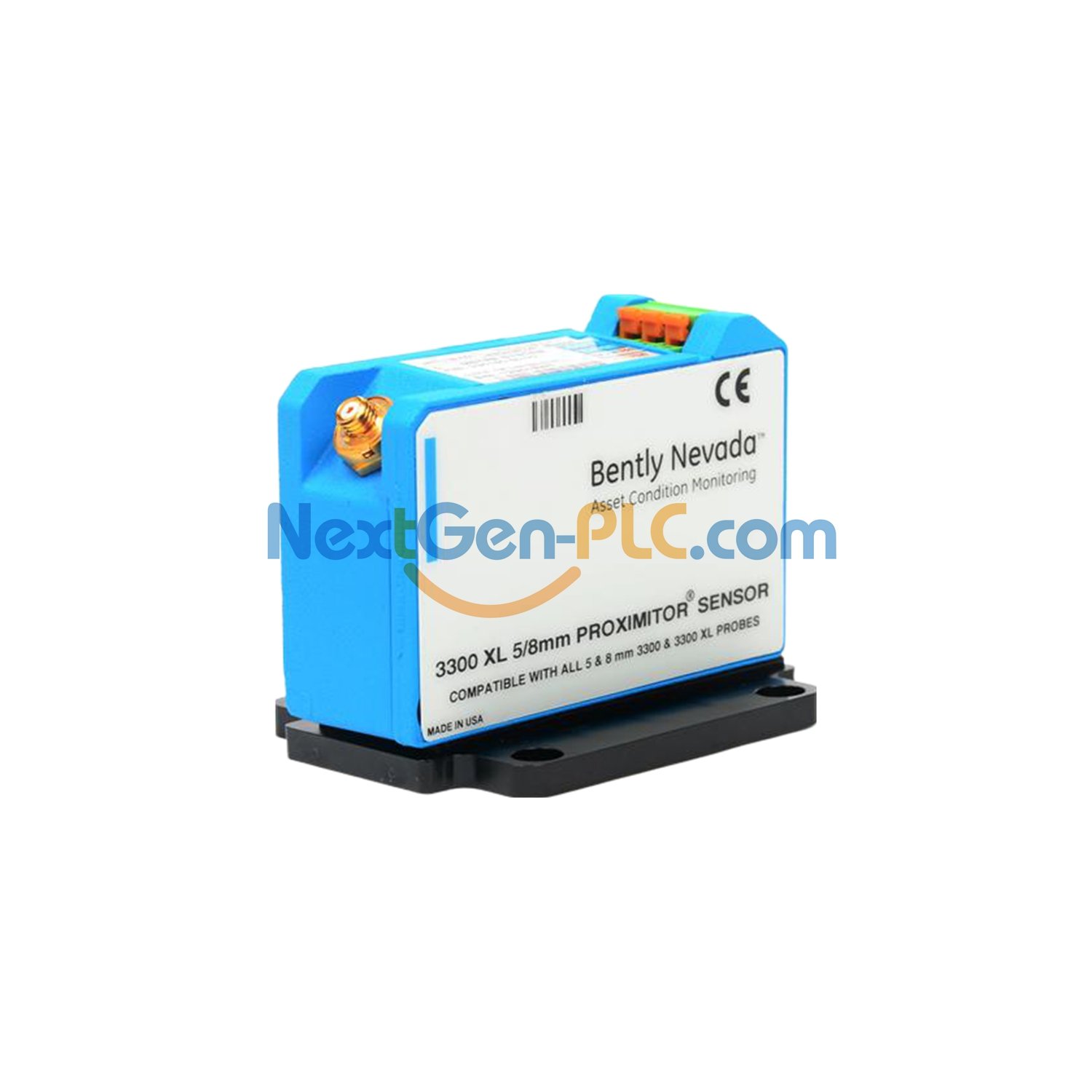

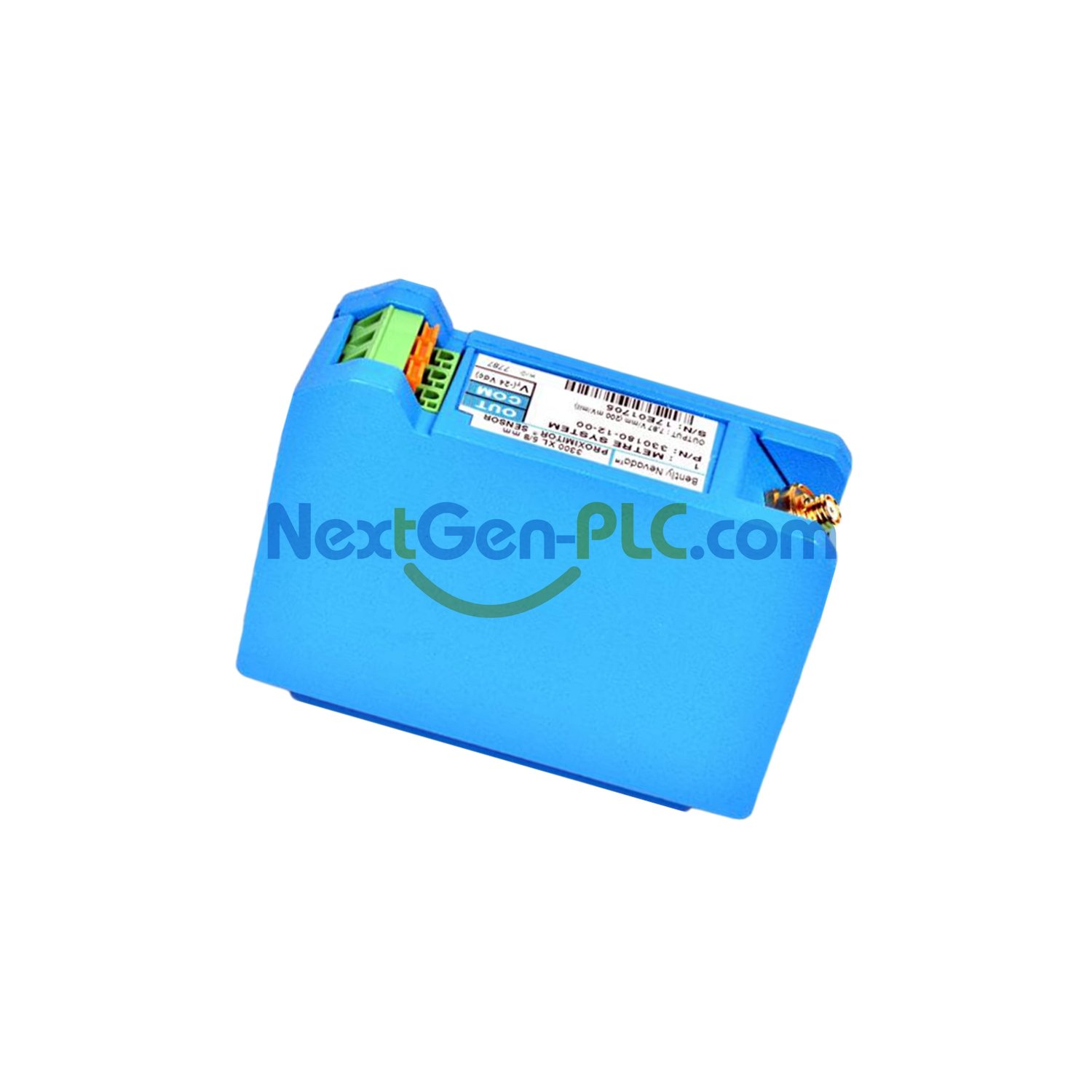

Bently Nevada 3300 XL Proximitor Sensor

Thin vibration sensor for machines. Fights radio noise well. Mounts on DIN rail. Set for AISI 4140 steel at the factory.

Complete Model: 330878-X1-00

Technical Data

• Brand: Bently Nevada
• Model: 330878-X1-00
• Power: -17.5Vdc to -26Vdc (12mA max)
• Output: 50 ohms
• Cable: 69.9 pF/m (21.3 pF/ft)
• Temp Range: -51°C to +100°C
• Housing: A380 aluminum

Key Features

• DIN rail mounting only
• Easy wiring with SpringLoc terminals (no tools)
• Fights radio noise very well
• Set for AISI 4140 steel. Other materials on request

Works With

All 3300 XL 50mm probes. Needs standard cables.

Setup Guide

Mount on DIN rail with included parts. Keep voltage at -23.5Vdc or lower for best results.

What’s in the Box

• Sensor unit
• DIN rail mounting parts
• Setup guide

Download PDF file here:3300 XL 50 mm Proximity Transducer System Datasheet
