Bently Nevada 330704-000-060-10-02-00 Armored Proximity Probes

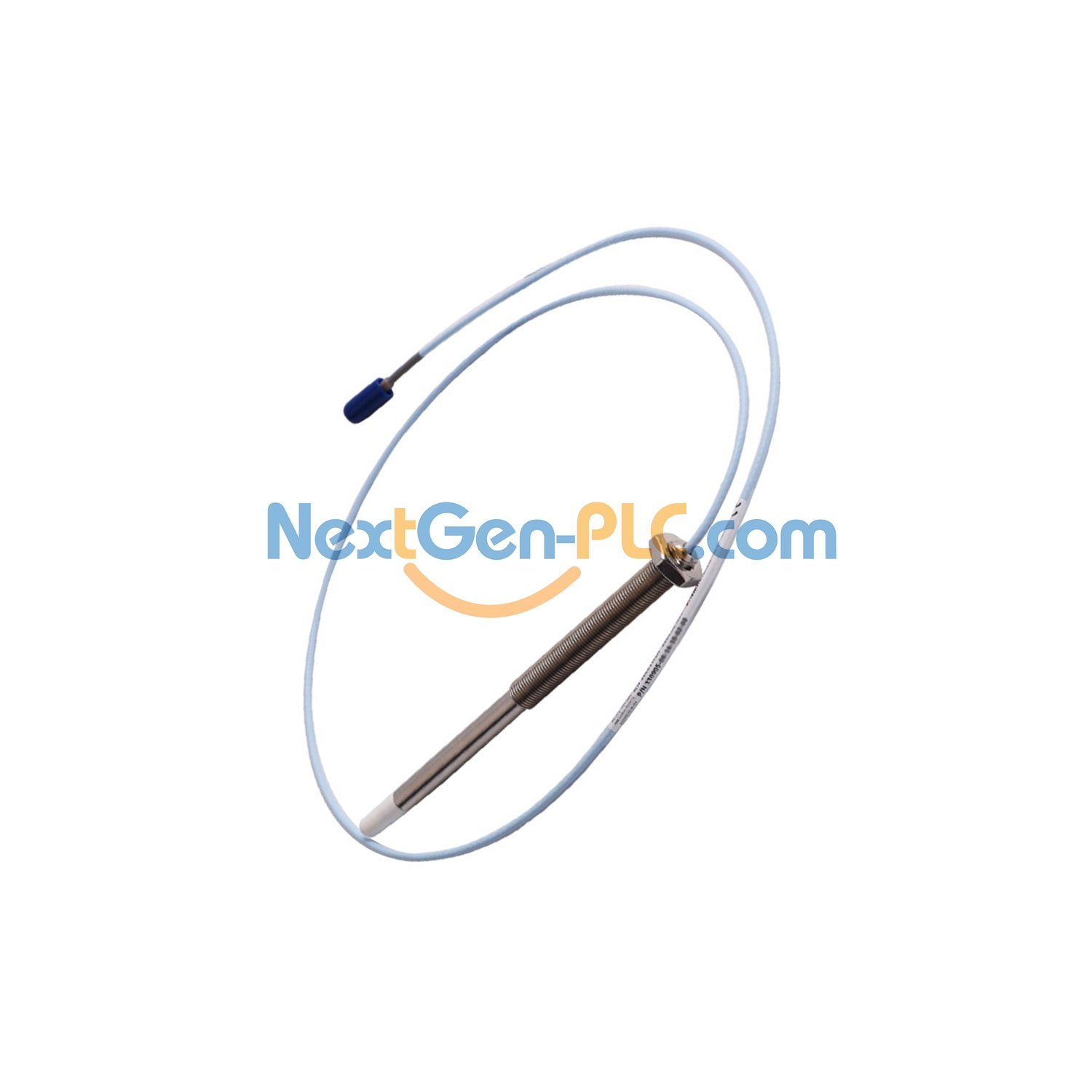

Bently Nevada 3300 XL 11 mm Proximity Probe (Part No.: 330704-000-060-10-02-00)

What It Is

This Bently Nevada sensor measures machine parts without touching them. Good for factories, it checks movement in turbines, compressors, and generators.

Key Details

Brand: Bently Nevada
Model: 3300 XL 11 mm Proximity Probes (Metric)
Part No.: 330704-000-060-10-02-00
Condition: New, factory-sealed
Warranty: 12 months
Tech Specs:

Thread: M14 x 1.5 (with armor)
Cable Length: 1.0m (3.3ft)
Connector: Small coaxial ClickLoc
Resistance: 5.9 ± 0.5 ohms (1.0m probe)
Magnetic Field Effect (60 Hz, 300 Gauss):
0.5mm gap: 0.001 mil pp/gauss
2.5mm gap: 0.009 mil pp/gauss
4.6mm gap: 0.027 mil pp/gauss
Range: Up to 4mm (160 mils)
Output: 100 mV/mil (3.94 V/mm)
Temp: Works from -51°C to 177°C (-60°F to 350°F)
Certifications: CSA, ATEX, IECEx

How to Install

Screw in using M14 x 1.5 thread.
Use the lock nut to keep it tight (8-12 N·m torque).
Set gap to 2.5mm (100 mils) first.
Protect the cable: avoid sharp bends.

Works With

Fits Bently Nevada 3500 systems. Also works with 3300 XL 11mm cables and old 7200 series.

What’s in the Box

1 probe (with armor)
1 cable (1.0m)
1 connector cover
1 lock nut
Factory packaging

Warranty

12-month factory warranty covers issues with parts or making.

Where It’s Used

Turbines: Checks rotor movement.
Compressors: Tracks rod position.
Power plants: Measures generator expansion.
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
