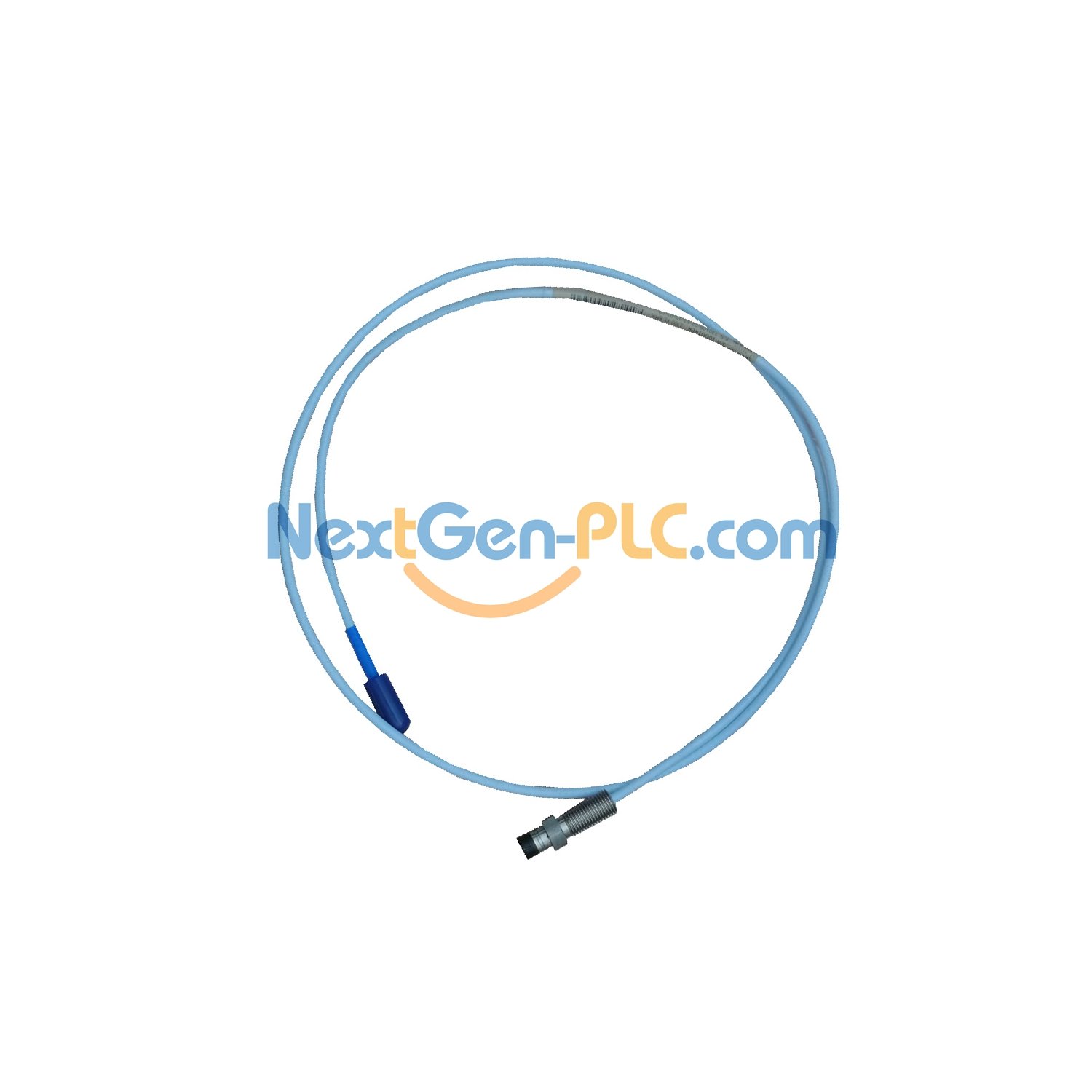

Bently Nevada 330191-02-16-90-00: Heavy-Duty 8mm Proximity Probe
Industrial-grade vibration sensor with 9m armored cable and 0.2″ unthreaded section. Perfect for large rotating equipment in harsh environments.
Model Number Breakdown
└ 330191 (Base model: 3300 XL 8mm ETR Probe)
└ 02 (0.2″ unthreaded length)
└ 16 (1.6″ case length)
└ 90 (9.0 meter cable)
└ 00 (No special approvals required)
Key Specifications
- Thread: 3/8-24 UNF (no armor)
- Power: -17.5 to -26 VDC @ 12mA max
- Resistance: 9.87Ω ±0.50 (9m cable)
- Temp Range: -55°C to +232°C
- Body: AISI 303/304 stainless steel
- Weight: 323 g/m (11.4 oz/ft)
Premium Features
TipLoc Technology
Stronger tip-to-body bond
CableLoc Design
330N (75 lbf) pull strength
FluidLoc Option
Prevents oil leaks
Installation Guide
- Max thread engagement: 0.563″
- Connector torque: 0.565 N•m (5 in-lbf) max
- Viton® O-ring seal (not pressure tested)
- Works with all Bently Nevada systems
Ideal For
- Power generation turbines
- Large centrifugal compressors
- Paper mill roll bearings
- Mining equipment monitoring
Package Contents
- 1 × 3300 XL 8mm probe (9m cable)
- Factory documentation
- Protective packaging
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
