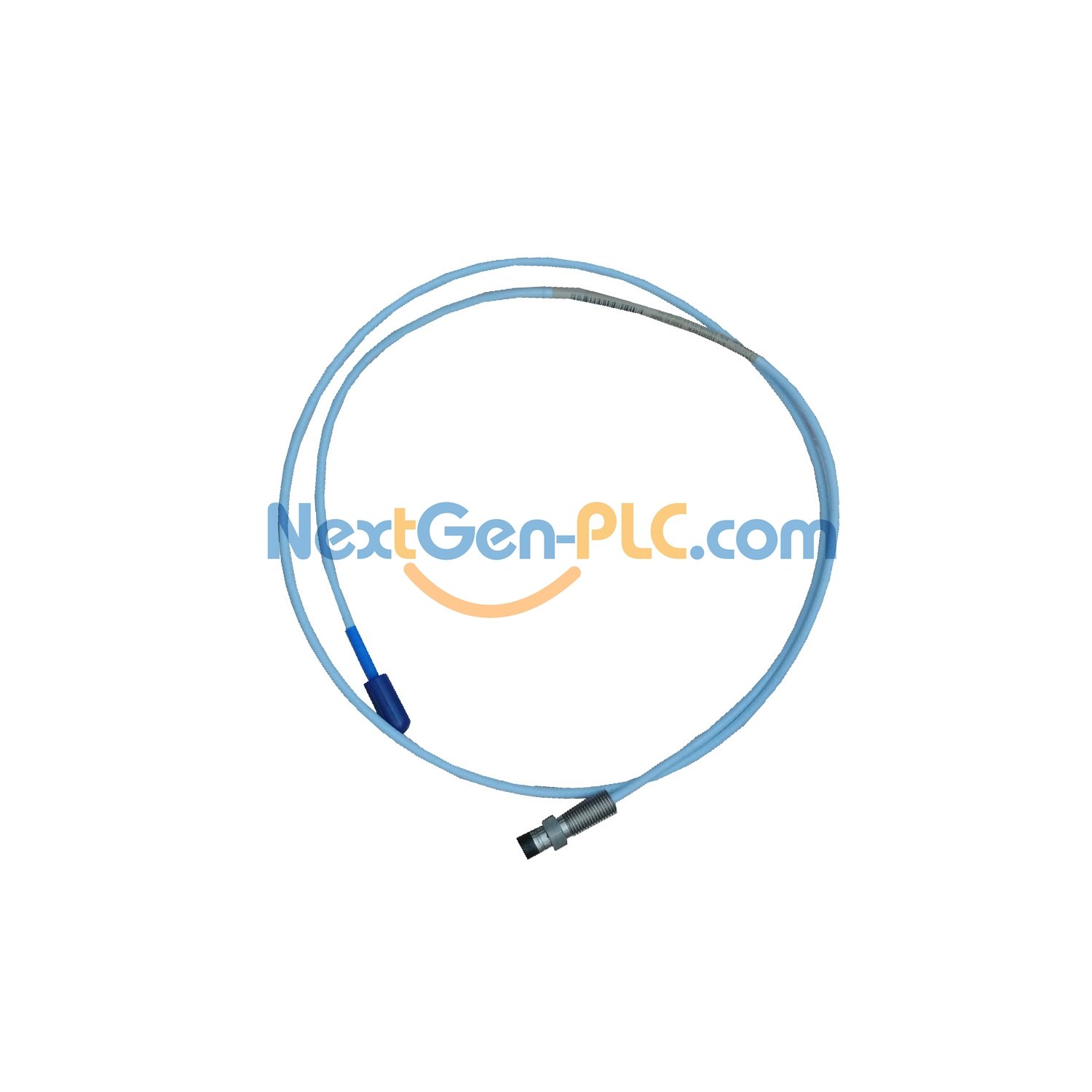

Bently Nevada – 330173-00-08-05-02-05 | 3300 5mm Probe

Bently Nevada Short-Range Vibration Monitor

Compact 80mm vibration probe with premium ClickLoc connector for precision industrial diagnostics.

Critical Specifications

Model: 330173-00-08-05-02-05
Case: 80mm stainless steel
Cable: 0.5m FEP-insulated
Thread: M8×1 mounting

Electrical Performance

▸ Power: -17.5 to -26 VDC (±0.5V)
▸ Current: <12mA consumption
▸ Output: 50Ω resistance
▸ DC Resistance: 7.45±0.50Ω
▸ Sensitivity: <2mV/V variation

Mechanical Properties

★ Tensile Strength: 222N (50lbf)
★ Torque Range: 5.1-7.3N·m
★ Bend Radius: >25.4mm
★ Materials: PPS tip + 304 SST

Installation Guide

Mount with M8×1 thread at 1.27mm gap. Apply 5.1N·m torque. Avoid temperatures below -34°C.

System Compatibility

Direct integration with Bently Nevada 3300/3500 systems. Ideal for motors, pumps and gearboxes under 3000 RPM.

Global Certifications

Meets multiple international standards (05 suffix). Complies with industrial safety requirements.

Package Contents

Vibration probe, 0.5m cable, ClickLoc connector. Optional COO available.

Quality Guarantee

12-month manufacturer warranty. Precision calibrated in USA.

Industrial Application

Monitors conveyor motor vibrations in mining operations, detecting 0.1mm displacements at 1200 RPM with 98% accuracy.

Download PDF file here:3300 5 mm Transducer System Datasheet – 172036
