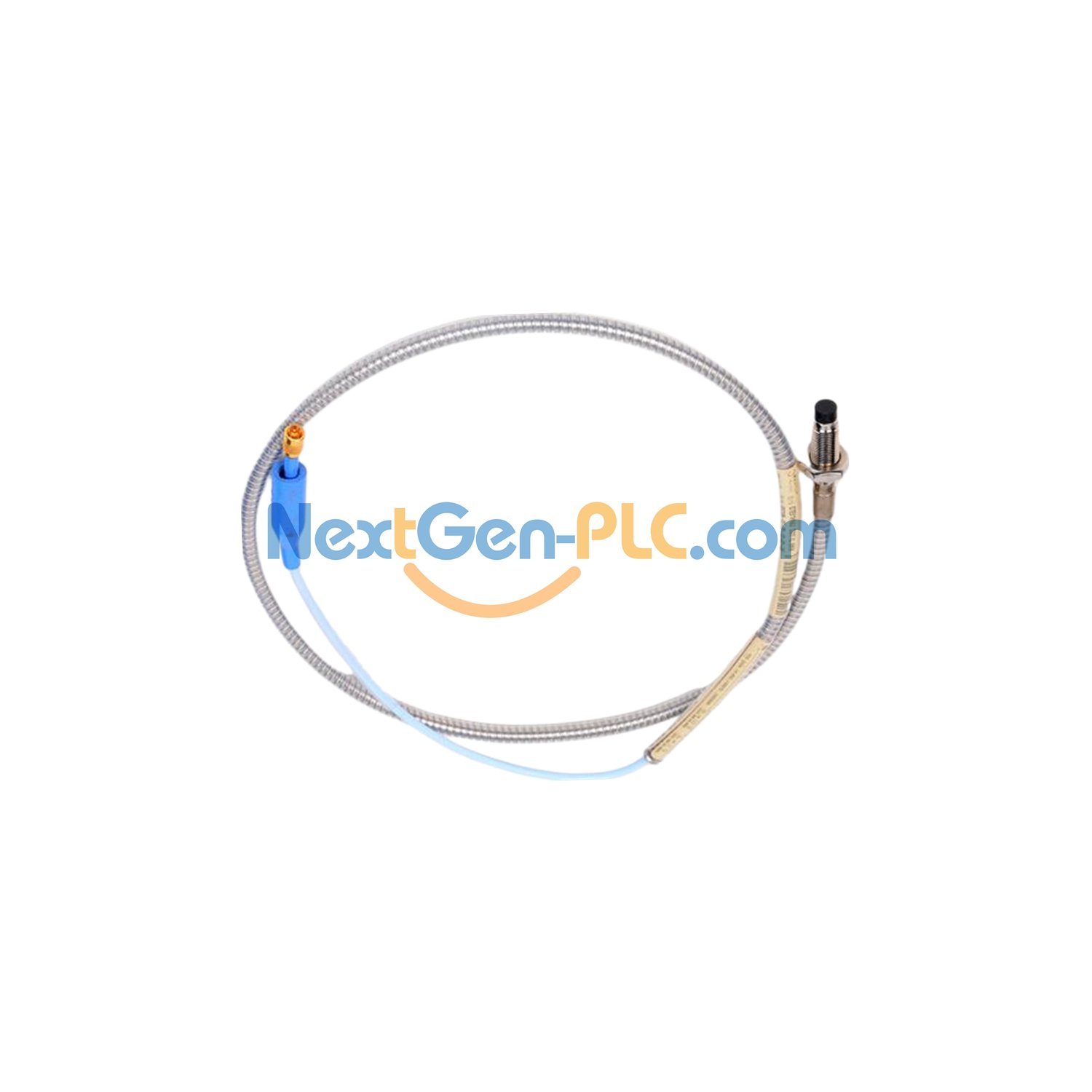

Bently Nevada 5mm Armored Vibration Probe
Model: 330172-05-63-05-02-05
Made in USA • 6.3″ steel body • 0.5m armored cable
Key Features
- 5mm sensing tip
- 6.3″ stainless steel body
- 0.5″ unthreaded section
- 0.5m armored cable (1.6 ft)
- Works in extreme temperatures
Tech Specs
- Power: -17.5V to -26V DC
- Thread: 1/4-28 UNF
- Max temp: +177°C (+351°F)
- Min temp: -35°C (-31°F)
- Weight: 0.32 kg
Model Number Explained
| 330172 | Armored probe |
| 05 | 0.5″ smooth section |
| 63 | 6.3″ total length |
| 05 | 0.5m cable |
| 02 | Standard connector |
| 05 | Multiple approvals |
Installation Guide
Drilling
- Use #3 drill bit
- Tap with 1/4-28 UNF
Mounting
- Tighten to 45 in-lb
- Max 65 in-lb
- 0.375″ max thread depth
What’s Included
- 1 vibration probe
- 0.5m armored cable
- ClickLoc connector
Download PDF file here:3300 5 mm Transducer System Datasheet – 172036
