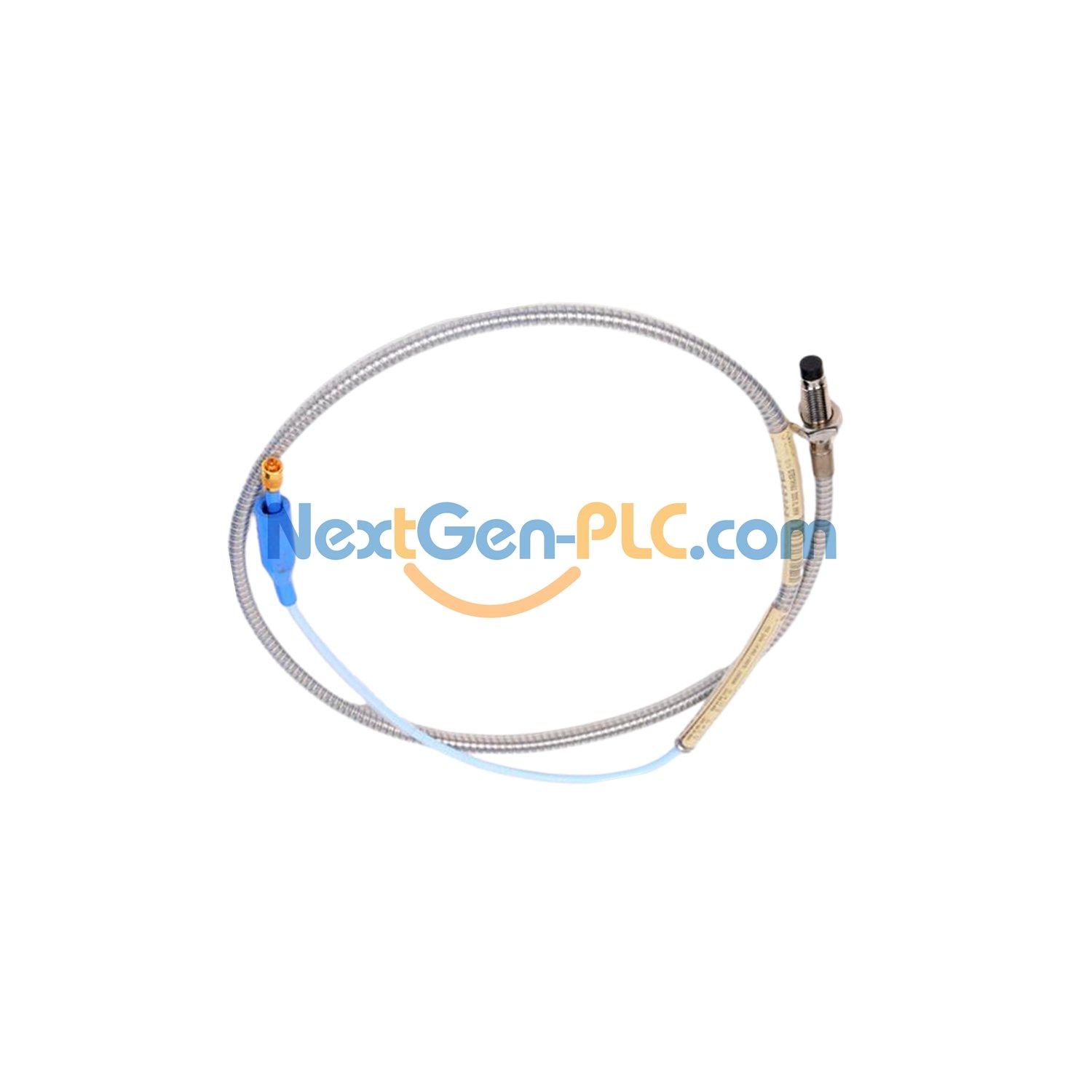

Bently Nevada 5mm Vibration Probe
Model: 330172-00-28-10-01-05
MADE IN USA
5mm Sensing Tip
2.8″ Case Length
1m Armored Cable
-35°C to +177°C
Technical Specifications
Thread Type:
1/4-28 UNF
1/4-28 UNF
Case Material:
304 Stainless Steel
304 Stainless Steel
Tip Material:
PPS Plastic
PPS Plastic
Power Supply:
-17.5V to -26V DC
-17.5V to -26V DC
Connector:
Protected ClickLoc
Protected ClickLoc
Approvals:
Multiple Certifications
Multiple Certifications
Understanding Your Model Number
| 330172 | Base Model |
| 00 | Fully Threaded (0″ unthreaded) |
| 28 | 2.8″ Case Length |
| 10 | 1.0m Cable |
| 01 | Protected Connector |
| 05 | Multiple Approvals |
Installation Guide
1
Drill with #3 or larger bit
2
Max 0.375″ thread depth
3
Tighten to 45 in-lbs torque
4
Keep 1″ cable bend radius
Common Applications
Turbines
Compressors
Generators
Pumps
What’s Included
- 1 × 5mm Vibration Probe
- Installation Guide
- Optional COO Available
Download PDF file here:3300 5 mm Transducer System Datasheet – 172036
