Bently Nevada | 330130-075-13-00 | Standard Extension Cable

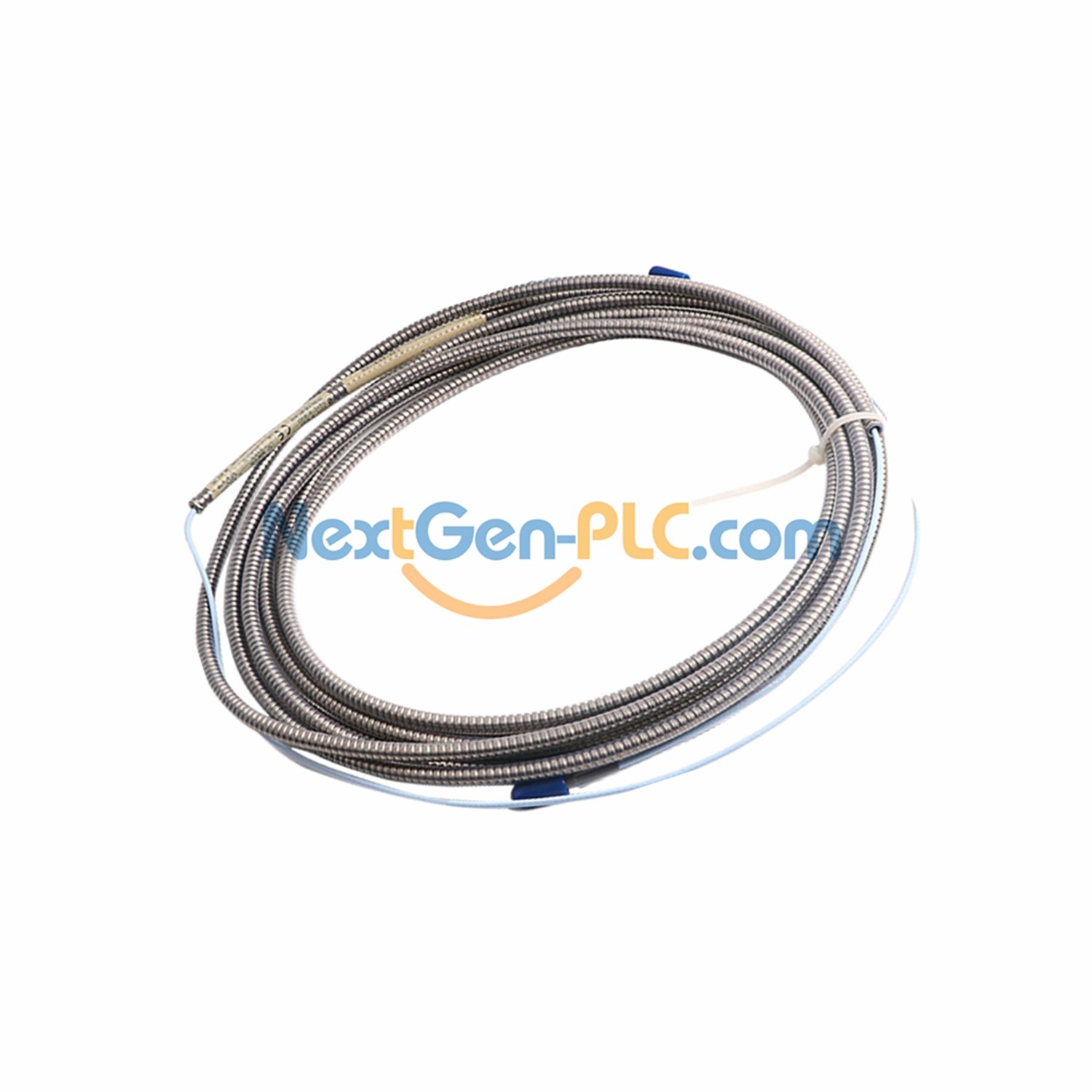

Bently Nevada 330130-075-13-00 Extension Cable – 7.5m FluidLoc Connector

What It Is

This extension cable works with Bently Nevada’s 3300-series proximity sensors. It has a FluidLoc design to stop oil or liquid leaks. Gold-plated, corrosion-resistant connectors keep signals strong. Good for industrial systems that need steady signal transfer.

Model Numbers Explained

330130: Base code for 3300 XL extension cables.
075: Cable length – 7.5 meters (24.6 feet).
13: FluidLoc cable with a connector protector (stops leaks).
00: No extra approvals needed.

Key Specs

Brand: Bently Nevada
Model: 330130-075-13-00
Type: Extension Cable
Length: 7.5m (24.6ft)
Weight: 0.204kg (standard) or 0.618kg (armored)
Capacitance: 69.9pF/m (21.3pF/ft) (typical)
DC Resistance:
Center: 1.65Ω ±0.25 (7.5m)
Outer: 0.49Ω ±0.10 (7.5m)
Power: -17.5Vdc to -26Vdc (no barriers) / -23Vdc to -26Vdc (with barriers)
Output Resistance: 50Ω
Linear Range: 2mm (80 mils) (works best 0.25mm to 2.3mm from target)
Temp Range: +18°C to +27°C (+64°F to +80°F)

Works With

3300-series 5mm probes
3300 8mm probes
3300 XL 8mm probes

Install Tips

Use 0.2-1.5mm² (16-24 AWG) shielded triad cable.
Max field wiring: 305m (1,000ft).
Don’t use silicone tape (included) if connections touch turbine oil – use the protector instead.

What’s in the Box

1x 7.5m 3300 XL extension cable
Silicone tape (optional for connectors)
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
