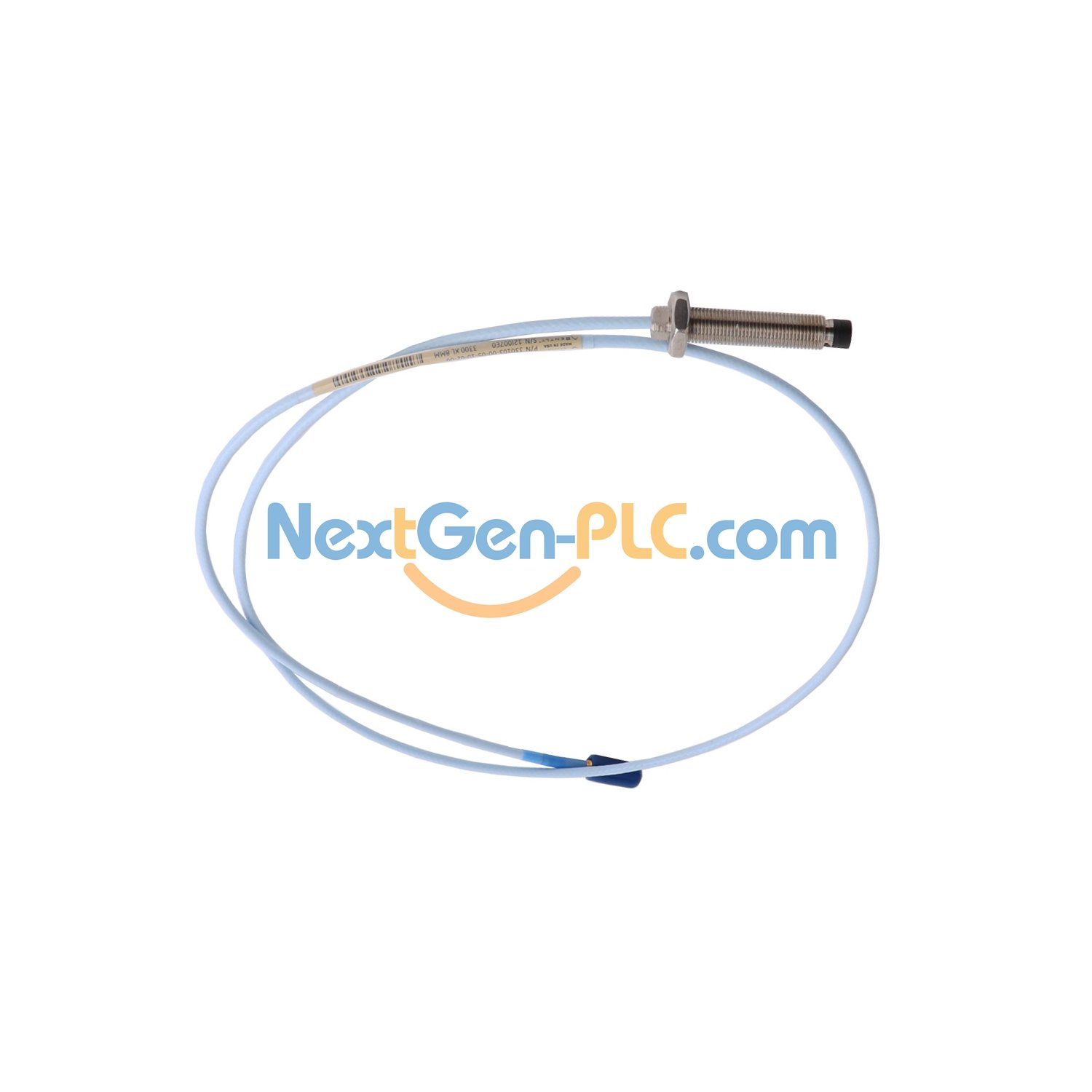

Bently Nevada 330104-08-16-10-02-00 3300 XL 8mm Proximity Probe

Description

A non-contact sensor for industrial machine monitoring. Features a PPS tip (polyphenylene sulfide) and a durable stainless steel body (AISI 303/304). A Viton O-ring seals pressure between the tip and body for stable performance.

Brand & Model

Brand: Bently Nevada
Model: 330104-08-16-10-02-00

Model Suffix Breakdown

-08: Unthreaded length (80mm)
-16: Overall case length (160mm)
-10: Total cable length (1.0m/3.3ft)
-02: Connector type (mini coaxial ClickLoc, standard cable)
-00: No country-specific approvals needed

Key Specifications

Probe resistance: 7.59 ± 0.50 Ω (1.0m cable)
Power supply: -17.5Vdc to -26Vdc (12mA max; -23Vdc to -26Vdc with barriers)
Output resistance: 50 Ω
Sensitivity: <2mV change per volt input
Operating temp: 18°C–27°C (64°F–80°F)
Max altitude: 2000 meters

Installation Guide

Works with 3300-series 5mm or 3300 XL 8mm probes and extension cables. Use -24Vdc power and 10kΩ load for best results. Avoid voltages above -23.5Vdc to keep linear range.

Compatibility

Designed for 3300 XL 8mm systems only. Accuracy applies to Bently Nevada AISI 4140 steel targets.

Certifications & Ratings

Intrinsically Safe (ia): For Class I, Zone 0 (AEx/Ex ia IIC T5…T1 Ga); Class I Groups A/B/C/D, Class II Groups E/F/G, Class III.
Nonincendive (nA/ec): For Class I, Zone 2 (AEx/Ex nA/ec IIC T5…T1 Gc); Class I Division 2 Groups A/B/C/D.
Temperature Ratings:
EPL Ga/Gc: T1 (-55°C to +232°C) to T5 (-55°C to +40°C).
EPL Dc: T280°C (Ta -55°C to +232°C) to T90°C (Ta -55°C to +40°C).

Package Includes

3300 XL 8mm probe unit, standard cable, and user manual.
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
