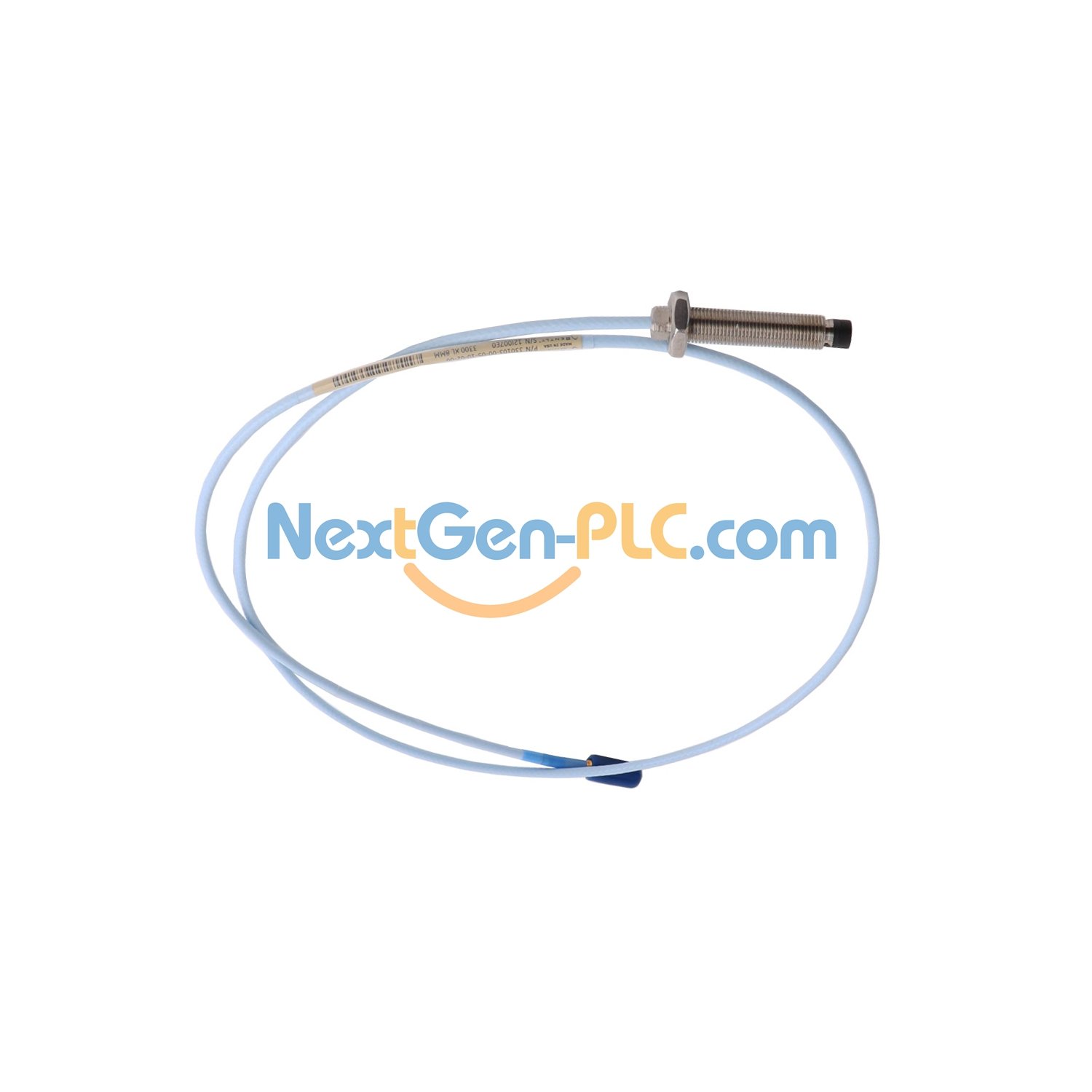

Bently Nevada 330104-01-05-05-02-CN 3300 XL 8mm Proximity Probe

Description

This non-contact sensor from Bently Nevada is made for industrial checks. It has a PPS tip (polyphenylene sulfide) and a strong stainless steel body (AISI 303/304). A Viton O-ring helps seal pressure. Good for measuring rotating machines.

Technical Data

Brand & Model

Brand: Bently Nevada
Model: 330104-01-05-05-02-CN

Model Suffix Meanings

-01: Unthreaded length (10mm)
-05: Body length (50mm)
-05: Total cable length (0.5m/1.6ft)
-02: Connector type (mini coaxial ClickLoc, standard cable)
-CN: Country-specific approval

Key Specs

Probe resistance: 7.45 ± 0.50 Ω (0.5m cable)
Power needed: -17.5Vdc to -26Vdc (12mA max; -23Vdc to -26Vdc with barriers)
Output resistance: 50 Ω
Sensitivity: <2mV change per volt input
Work temp: +18°C to +27°C (+64°F to +80°F)
Max height: 2000 meters

Install Tips

Works with 3300-series 5mm or 3300 XL 8mm probes and extension cables. Use -24Vdc power and 10kΩ load for best results. Avoid voltages above -23.5Vdc to keep linear range.

What It Fits

Only works with 3300 XL 8mm systems. Accuracy is only for Bently Nevada AISI 4140 steel targets.

Certifications

Comes with CN approval for local rules.

What’s in the Box

3300 XL 8mm probe, standard cable, user manual.
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
