Bently Nevada | 330104-00-08-10-01-05 | Proximity Armored Probe

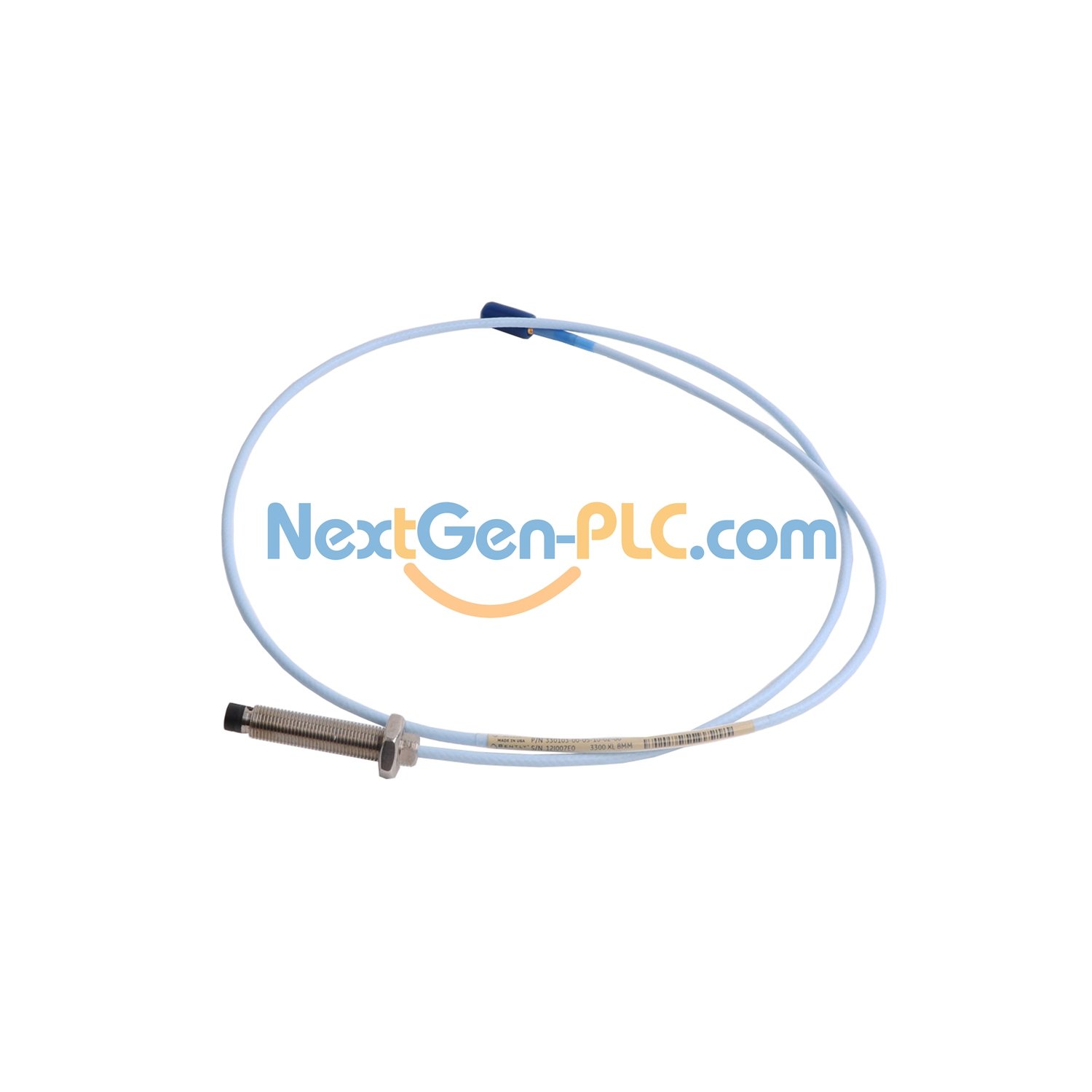

Bently Nevada 330104-00-08-10-01-05 3300 XL 8mm Proximity Probe

What It Is

A non-contact sensor for checking industrial machines. Has a PPS tip (polyphenylene sulfide) and a tough stainless steel body (AISI 303/304). A Viton O-ring seals pressure between the tip and body for steady use.

Brand & Model

Brand: Bently Nevada
Model: 330104-00-08-10-01-05

Model Codes Explained

-00: No unthreaded length (0mm)
-08: Body length (80mm)
-10: Cable length (1.0m/3.3ft)
-01: Connector type (mini coaxial ClickLoc with protector, standard cable)
-05: Approved for CSA, ATEX, IECEx

Key Specs

Probe resistance: 7.59 ± 0.50 Ω (1.0m cable)
Needs power: -17.5Vdc to -26Vdc (12mA max; -23Vdc to -26Vdc with barriers)
Output resistance: 50 Ω
Sensitivity: <2mV change per volt input
Work temp: 18°C–27°C (64°F–80°F)
Max height: 2000 meters

Install Tips

Works with 3300 5mm or 3300 XL 8mm probes/cables. Use -24Vdc power and 10kΩ load. Avoid voltages over -23.5Vdc to keep range.

What It Fits

Only for 3300 XL 8mm systems. Accurate with Bently Nevada AISI 4140 steel targets.

Certifications

Approved for CSA, ATEX, IECEx for safe use.

Box Includes

3300 XL 8mm probe, standard cable, user manual.
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
