Bently Nevada | 330103-00-11-10-12-05 | 3300 XL 8 mm Probes

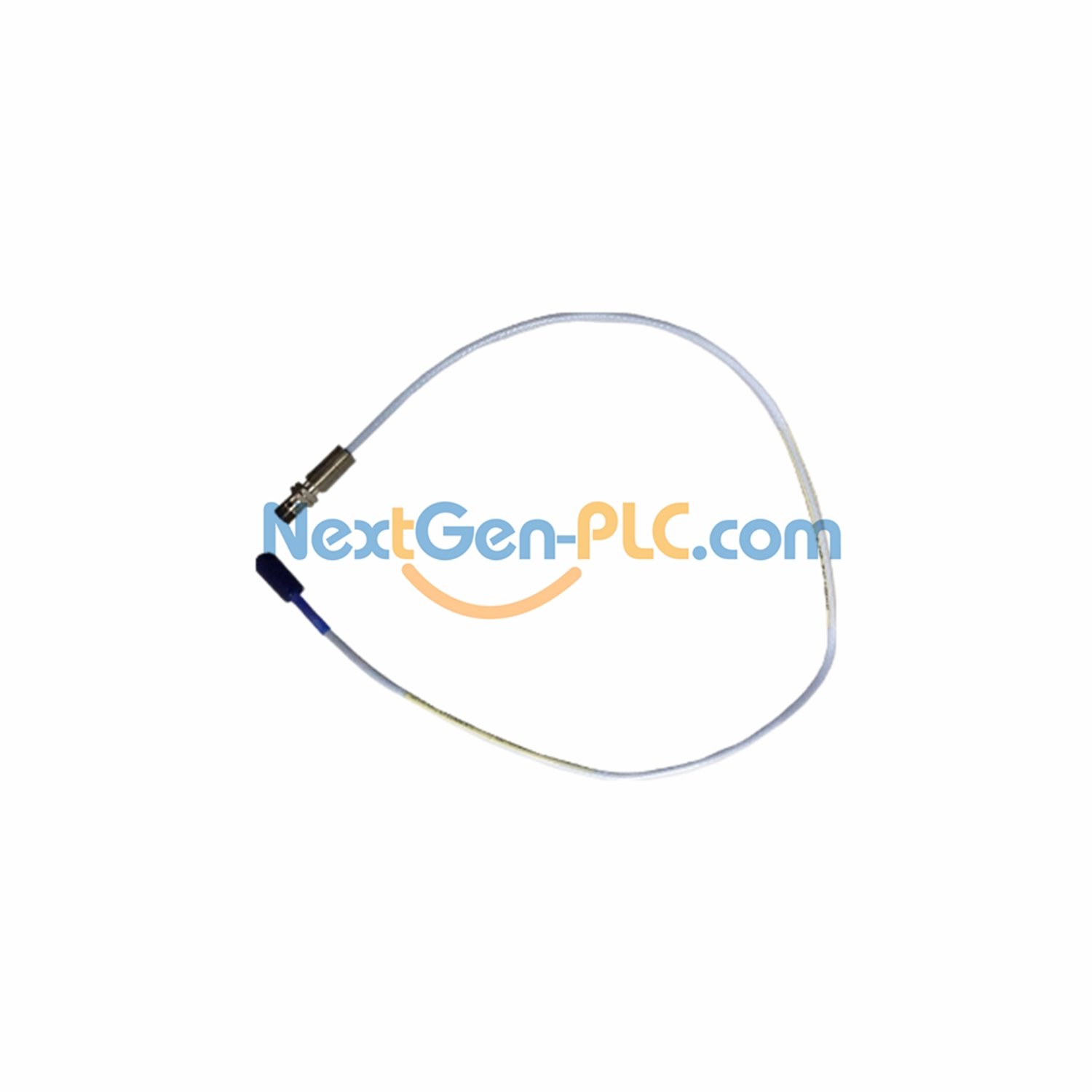

Bently Nevada 3300 XL 8mm Vibration Probe (330103-00-11-10-12-05)

Professional-grade vibration sensor for industrial equipment monitoring. Built to withstand tough conditions.

Key Features

• 8mm sensing tip with PPS material
• Stainless steel housing (AISI 303/304)
• 110mm case length
• 1 meter FluidLoc cable with ClickLoc connector
• Certified for hazardous areas (CSA, ATEX, IECEx)

Model Breakdown

330103-00-11-10-12-05 means:

• 330103: 8mm probe with M10x1 thread
• 00: 0mm unthreaded length
• 11: 110mm case length
• 10: 1.0 meter cable
• 12: Mini coaxial ClickLoc connector
• 05: Safety approvals

Technical Specifications

• Measurement range: 0.25-2.3mm (10-90 mils)
• Output: -1 to -17 Vdc
• Resistance: 7.59Ω ±0.50
• Temperature range: -52°C to +177°C (-62°F to +350°F)
• Thread: M10x1 (max 15mm engagement)
• Weight: 323g/m (11.4 oz/ft)

Installation Guide

• Recommended gap: 1.27mm (50 mils) for vibration
• Use shielded cable (16-24 AWG)
• Max cable length: 305m (1,000 ft)
• Sealed with Viton® O-ring (not pressure tested)

Certifications

• Class I, Zone 0: AEx/Ex ia IIC T1-T5
• Class I, Zone 2: AEx/Ex nA/ec IIC T1-T5
• Groups A-G compliant

What’s Included

• 1 × 3300 XL 8mm Probe
• 1 × ClickLoc connector
• 1 × 1m FluidLoc cable

Typical Applications

• Gas turbines
• Centrifugal compressors
• Industrial pumps
• Power generation equipment

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
