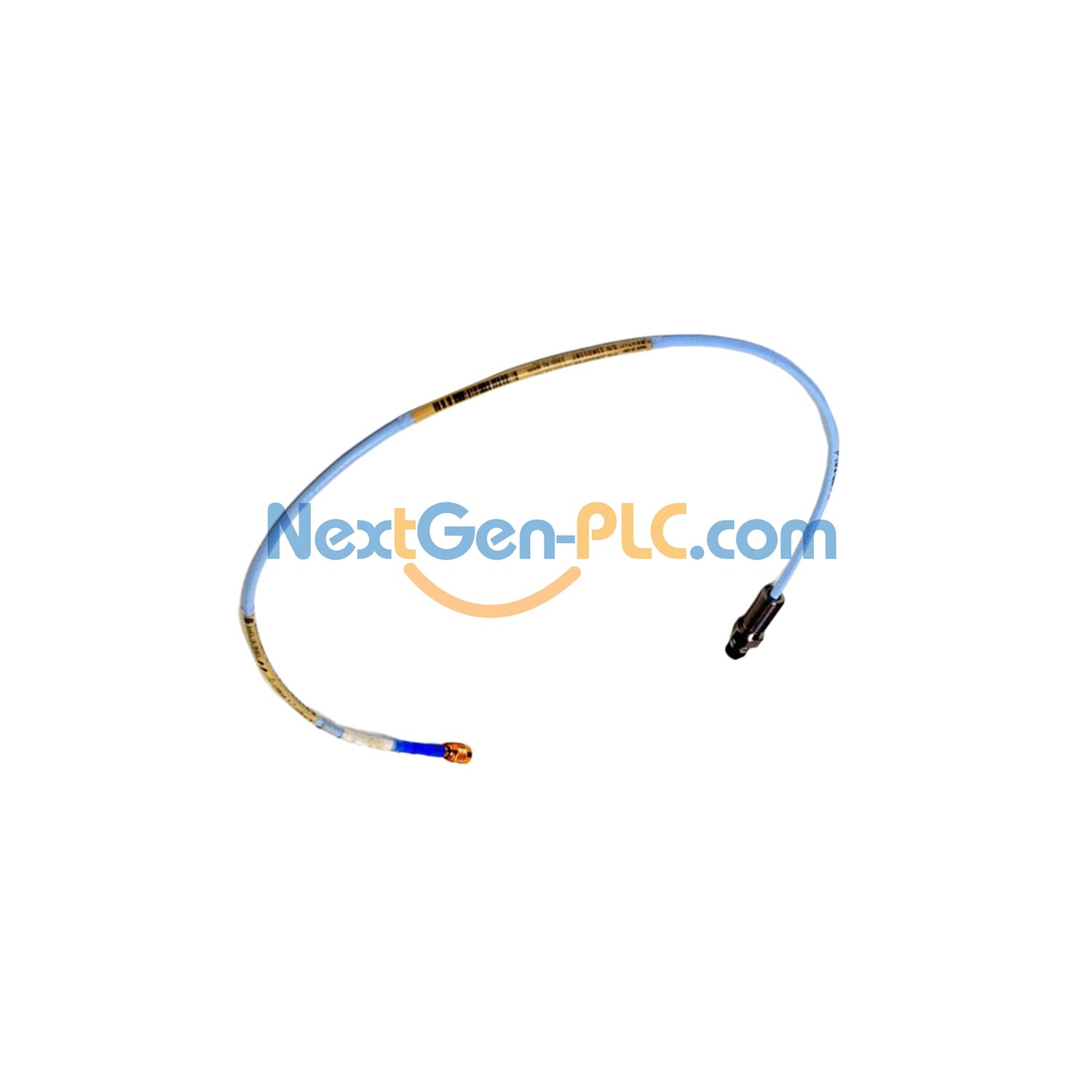

Bently Nevada 3300 XL 8mm Proximity Probe
Model: 330103-00-08-10-12-00
80mm stainless steel body 1m FluidLoc cable ClickLoc connector
Key Specifications
- Probe Diameter: 8mm
- Case Length: 80mm
- Cable Length: 1.0m (3.3ft) FluidLoc
- Thread Size: M10x1
- Measurement Range: 0.25-2.3mm
- Temperature Range: -52°C to +177°C
Technical Details
Output Signal
-1V to -17V DC
-1V to -17V DC
Optimal Gap
1.27mm (50 mils)
1.27mm (50 mils)
Resistance
7.59Ω ±0.50
7.59Ω ±0.50
Weight
323g/m (11.4 oz/ft)
323g/m (11.4 oz/ft)
Installation Notes
- Use with shielded 3-conductor cable (0.2-1.5mm²)
- Maximum 305m cable run to monitor
- Thread engagement: 15mm maximum
- FluidLoc cable resists oil and moisture
Important Notice
Do not expose to temperatures below -34°C (-30°F) to prevent seal damage.
Package Contents
- 1 × 8mm proximity probe
- 1 × 1.0m FluidLoc cable with ClickLoc connector
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
