Bently Nevada 11 mm Proximity Probes 330710-000-060-10-02-00

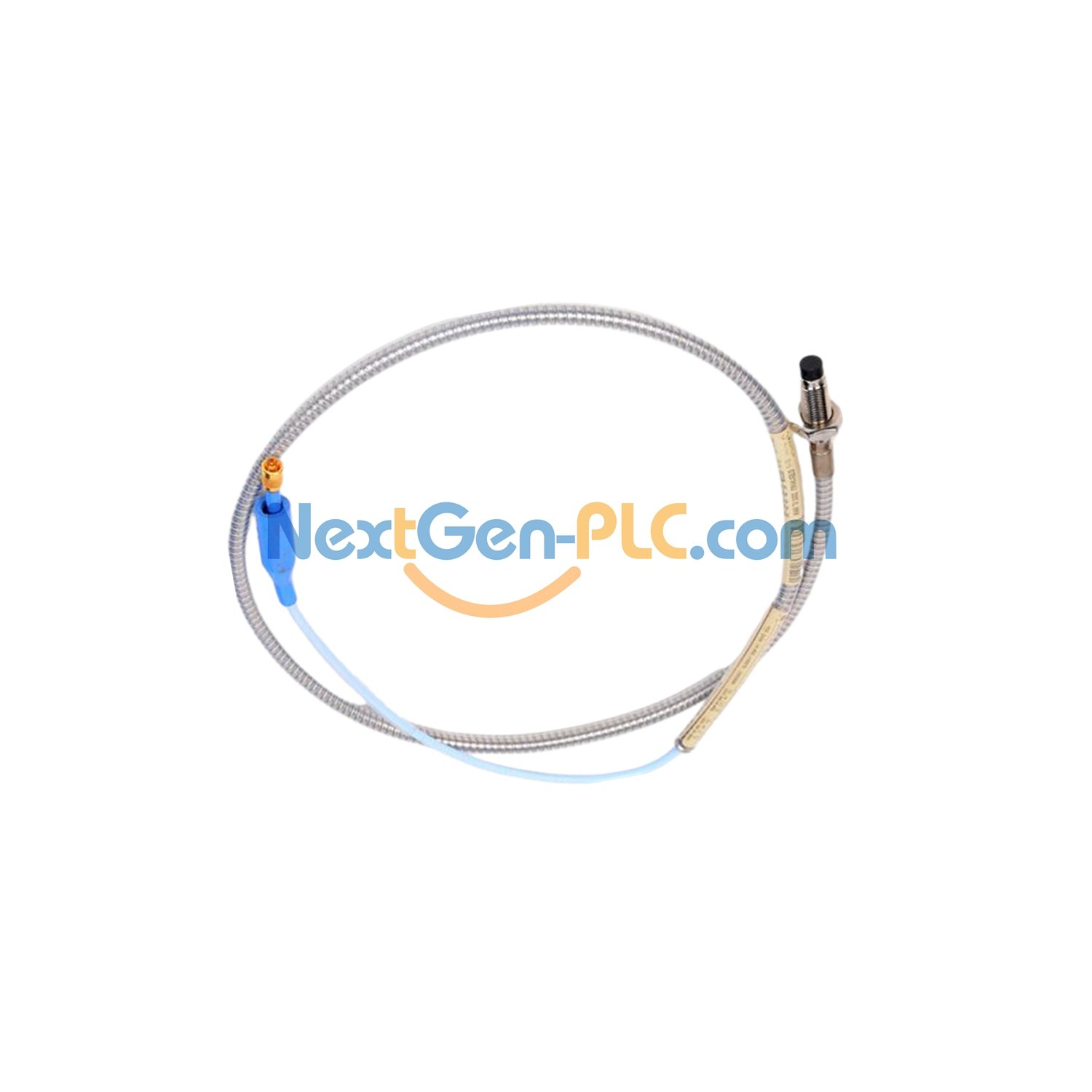

Bently Nevada 330710-000-060-10-02-00 3300 XL 11mm Armored Proximity Probe

Quick Overview

A tough sensor for close-up machine checks. Built with armor to protect the cable, it’s great for tight spaces needing short, reliable monitoring (1.0m total length).

Model Code Breakdown

330710-000-060-10-02-00 tells you key details:

000: No extra unthreaded part (0mm)
060: Case length = 60mm (smaller for tight spots)
10: Total cable = 1.0m (3.3ft) (easy to install in small areas)
02: Small ClickLoc connector + basic cable (simple to use)
00: No special approvals needed (works almost anywhere)

Tech Details You Need

Resistance: 6.1Ω (1.0m cable, ±0.6Ω) (stable signal)
Case: 304 stainless steel (strong, won’t rust)
Tip: PPS material (stays good up to 177°C)
Cable: 75Ω triaxial FEP insulation (flexible, lasts long)
Humidity: Works in 10%-95% (no water drops)
Weight: ~0.3kg (light for easy handling)

Heat & Cold Rules

Works/stores from -52°C to 177°C (-62°F to 351°F). Below -34°C, the seal may break early—avoid cold spots.

Install Tips

Case tightness: 63.3N•m (560in•lb) (use a torque tool)
Connector tightness: Hand-tight only (max 0.565N•m/5in•lb) (no tools needed)
Bend it small: Min 25.4mm (1.0in) (even with armor)
Thread fit: M16x1.5, max 24mm deep (don’t over-tighten)

What It Works With

Flat targets: Need ≥30.5mm (1.2in) wide (like small metal parts)
Shafts: Need ≥152mm (6.0in) wide (like pump shafts)
Used in: Small motors, pumps, conveyor systems (checks vibration/position)

What’s Included

Comes with: Armored probe body, 1.0m triaxial cable, Mini ClickLoc connector.

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
