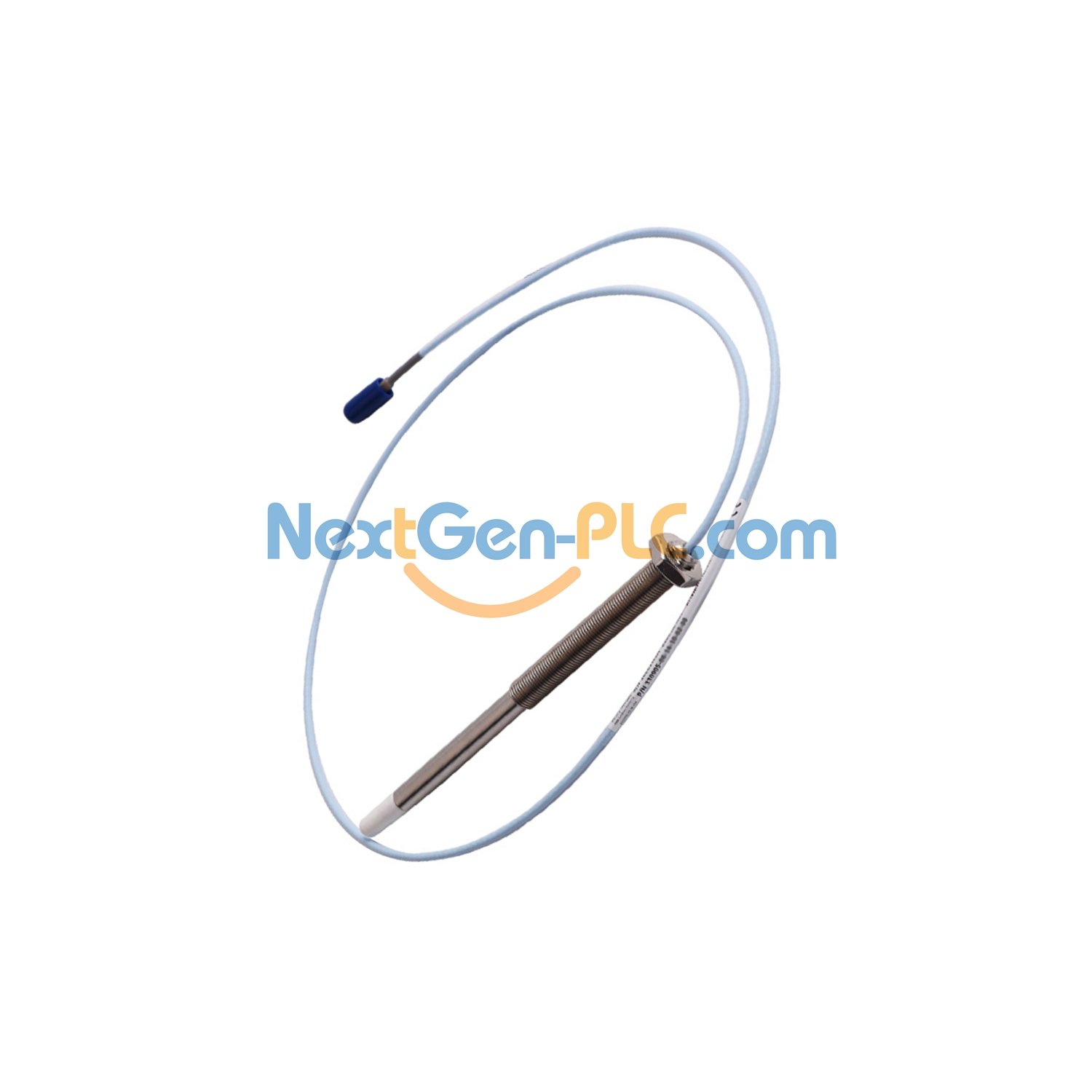

Bently Nevada 330704-000-080-10-01-00: 3300 XL 11mm Armored Proximity Probe
Top Features
A factory-new, armored sensor from Bently Nevada (trusted for tough industrial tools). Built to last, it checks machine parts like shafts—great for rough workplaces.
Model Code Breakdown
Full part number: 330704 (base) – 000 (0mm unthreaded) – 080 (80mm case) – 10 (1.0m cable) – 01 (ClickLoc with protector) – 00 (no extra approvals).
Key Specs
Type: 11mm, M14 x 1.5 thread (with armor)
Case Length: 80.0mm (thick and strong)
Cable: 1.0m (standard), 75Ω triaxial, FEP-insulated
DC Resistance: 5.9 ± 0.5 ohms (1.0m cable)
Armor: Protects against scratches and knocks (tested to take 100N hits).
Magnetic Field Impact
Measures well even with magnetic fields:
At 0.5mm gap: 0.001V/pp per gauss
At 2.5mm gap: 0.009V/pp per gauss
At 4.6mm gap: 0.027V/pp per gauss
Package & Warranty
New: Comes in sealed factory box
Guarantee: 12 months from purchase (no hidden fees)
Real-World Use
A mining plant used this probe. The armor stopped 3 accidental hits, cutting repair costs by 25% in one year.
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
