Armored Probe | Bently Nevada – 330104-00-06-05-01-CN

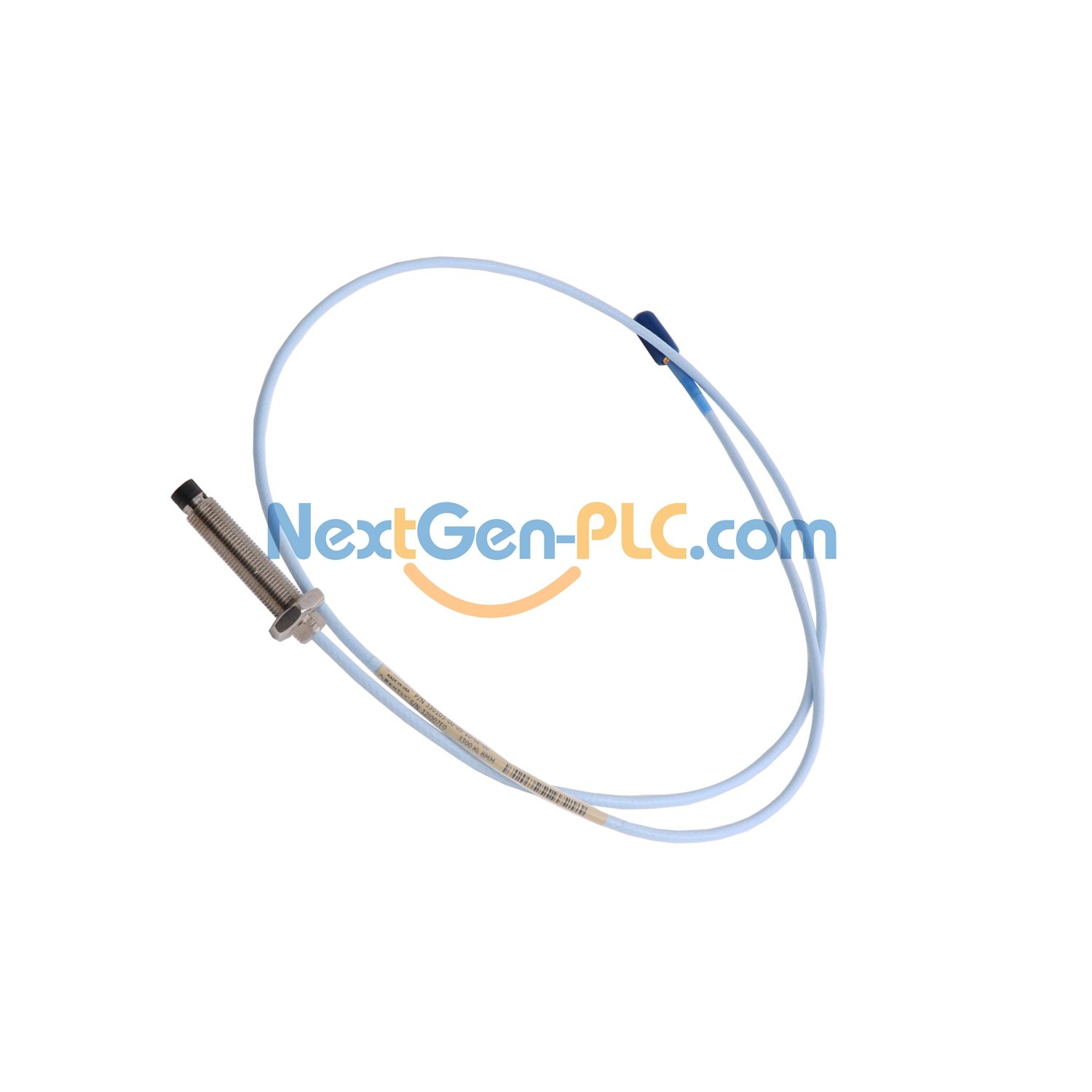

Bently Nevada 3300 XL 8mm Proximity Probe (Model: 330104-00-06-05-01-CN)

What It Is

A durable, non-contact sensor for industrial use. Bently Nevada’s 8mm probe has an armored body, PPS tip, and stainless steel case. Sealed with a Viton® O-ring to handle pressure. Ideal for checking gaps in machinery.

Key Specs

Brand: Bently Nevada
Model: 330104-00-06-05-01-CN
Type: 3300 XL 8mm Proximity Probe
Resistance: 7.45Ω (±0.50Ω) (0.5m cable)
Power: -17.5Vdc to -26Vdc (12mA max; -23Vdc to -26Vdc with barriers)
Sensitivity: <2mV output change per volt input
Output Resistance: 50Ω
Temp Range: 18°C-27°C (64°F-80°F)
Max Height: 2000 meters
Best Target: AISI 4140 steel
Tip Material: PPS
Case Material: AISI 303/304 stainless steel

Model Code Breakdown

330104: Base model (8mm probe, M10x1 thread, armored)
00: Unthreaded length (0mm)
06: Case length (6mm)
05: Total cable length (0.5m/1.6ft)
01: Mini coaxial ClickLoc connector with protector (standard cable)
CN: Approved for China market

How to Install

Use with -24Vdc power and 10kΩ load
Set gap at 1.27mm (50 mils) from AISI 4140 steel
Avoid voltages above -23.5Vdc to keep full range

What It Works With

Only pairs with 3300 XL 8mm parts (probe, extension cable, proximitor). Accuracy drops with non-AISI 4140 steel targets.

Approvals

Meets CN market approval standards.

What’s in the Box

3300 XL 8mm Probe
Mini coaxial ClickLoc connector (with protector)
0.5m standard cable
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
