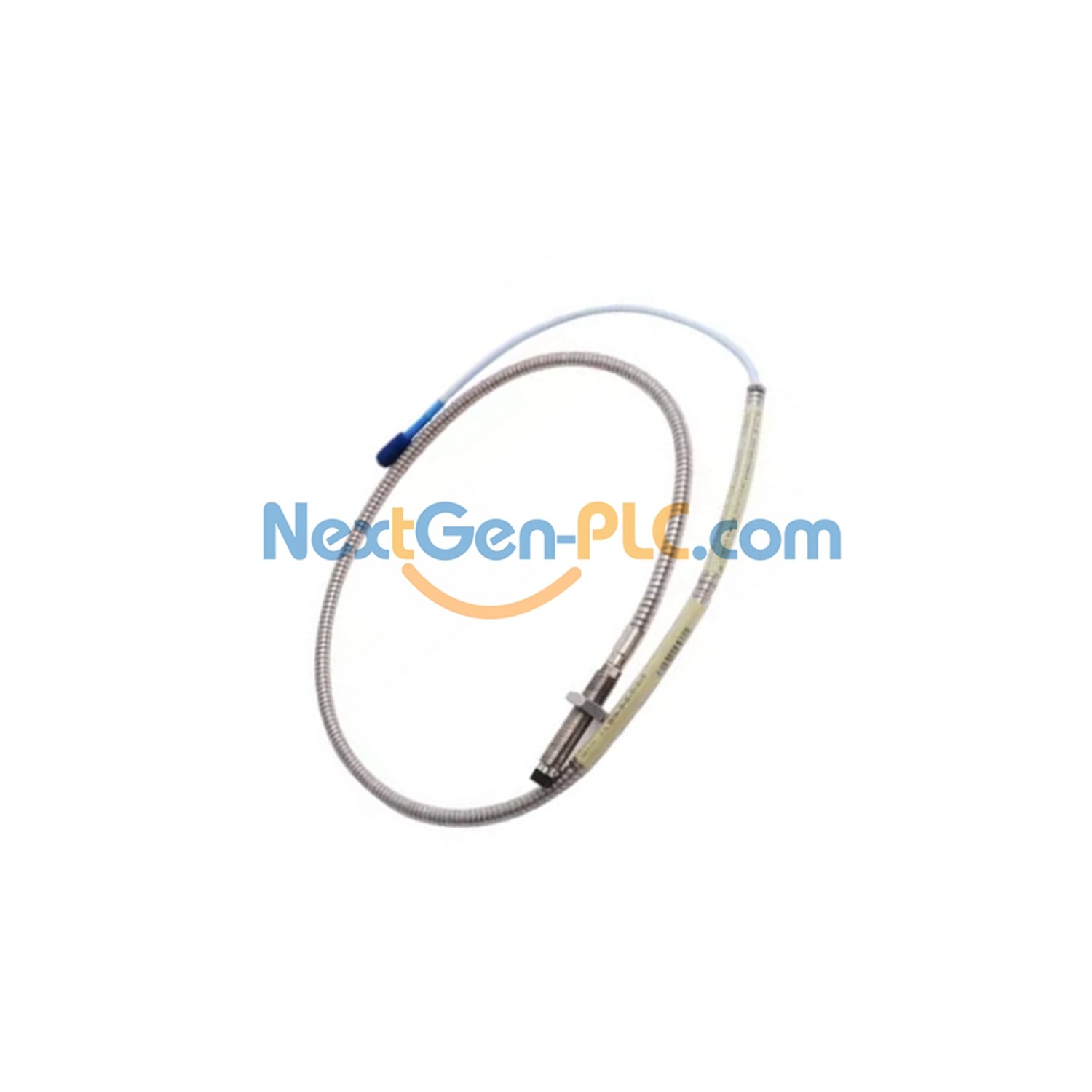

Bently Nevada 3300 XL 11mm Proximity Probe
Model: 330708-00-10-90-12-00
Made in USA | 9m FluidLoc Cable
PRODUCT CONFIGURATION
330708
Base Probe
11mm • 5/8-18 UNF
Base Probe
11mm • 5/8-18 UNF
→
00
Length
0″ unthreaded
Length
0″ unthreaded
→
10
Case
1.0″ length
Case
1.0″ length
→
90
Cable
9 meters
Cable
9 meters
→
12
Connector
ClickLoc + FluidLoc
Connector
ClickLoc + FluidLoc
→
00
Approvals
Standard
Approvals
Standard
📏
9m Reach
Extra-long 29.5ft cable for flexible installation
🌡️
Extreme Temp
Operates from -51°C to +177°C
🛡️
FluidLoc
Oil/chemical resistant cable
🔩
Stainless Steel
304 SST rugged construction
TECHNICAL DETAILS
Probe Diameter: 11mm
Thread: 5/8-18 UNF
Tip Material: PPS plastic
Cable Type: 75Ω triaxial
Resistance: 5.9 ± 0.5Ω
Weight: 0.17kg
INSTALLATION GUIDE
- Max thread engagement: 0.938″ (23.8mm)
- Recommended torque: 15.2 N•m (133 in-lb)
- Min cable bend radius: 25.4mm (1″)
- Connectors: Finger tight (max 0.565 N•m)
Note: Avoid temperatures below -34°C to prevent seal damage
INDUSTRIAL APPLICATIONS
🛳️ Ships worldwide via FedEx/UPS/DHL
📦 Includes: Probe, 9m cable, connector
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
