Armored 11 mm Probe | Bently Nevada – 330708-00-24-90-01-05

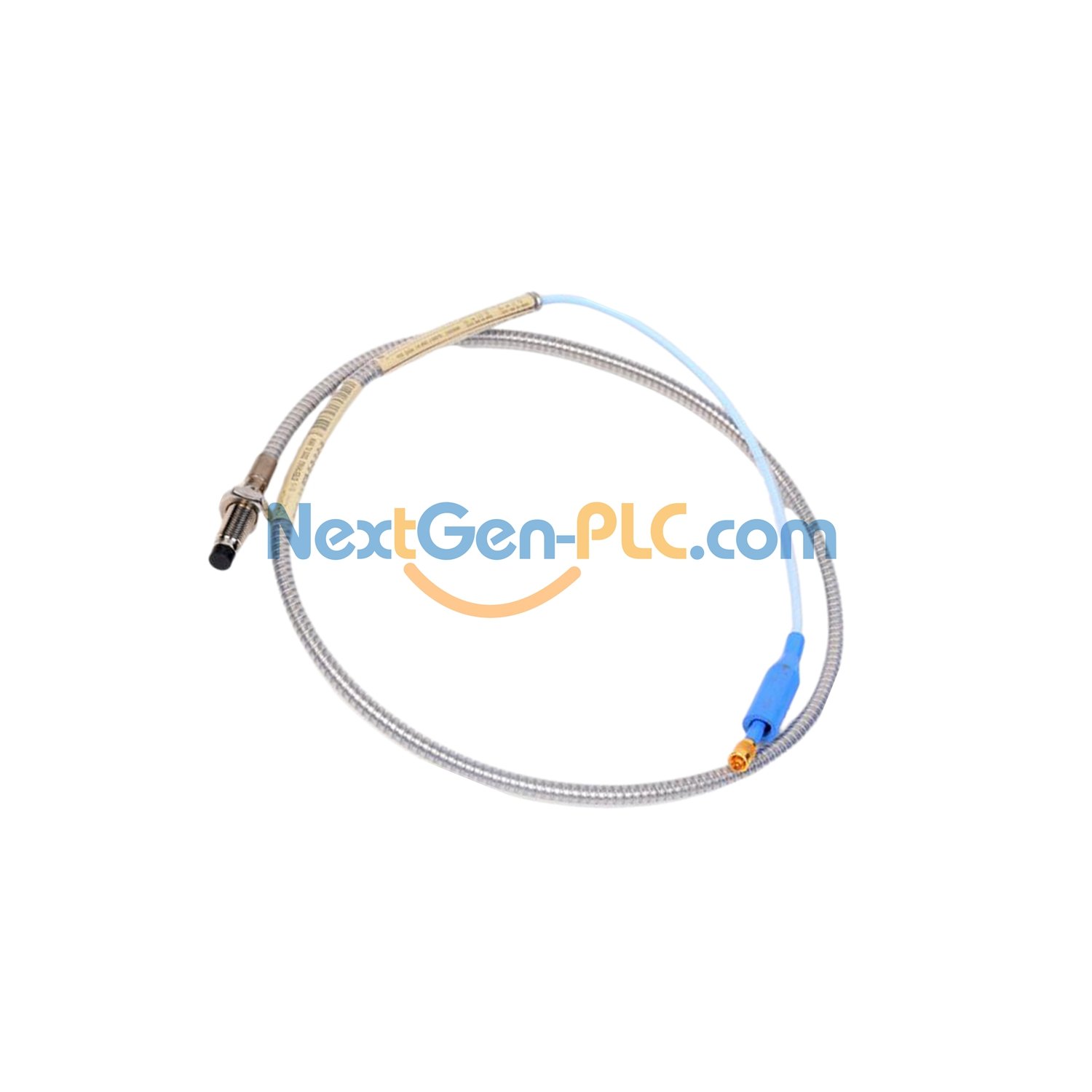

Bently Nevada 3300 XL 11 mm Proximity Probe (330708-00-24-90-01-05)

The 3300 XL 11 mm Proximity Probe from Bently Nevada is a reliable sensor. It measures vibration and movement in machines without touching them. Good for turbines and compressors. Works in tough conditions. Strong build. Wide temperature range.

Product Suffix Meaning

330708: 3300 XL 11 mm Probe, 5/8-18 UNF thread, no armor
00: Unthreaded Length: 0 in
24: Case Length: 2.4 in
90: Total Length: 9.0 meters (29.5 feet)
01: Small ClickLoc connector with protector, standard cable
05: Multiple agency approvals

Tech Specs

Brand: Bently Nevada
Model: 330708-00-24-90-01-05
Tip Material: Polyphenylene sulfide (PPS)
Case Material: 304 stainless steel
Cable: 75 Ω triaxial, FEP insulated (9m)
Temp Range: -51°C to +177°C (-60°F to +351°F)
Resistance: 5.9 ± 0.5 ohms (1m cable)
Weight: 0.17 Kg

How to Install

Thread: 5/8-18 UNF (max fit: 0.938 in)
Torque: 15.2 N•m (133 in•lb)
Connector: Finger-tight (max 0.565 N•m / 5 in•lb)
Bend Radius: 25.4 mm (1.0 in)

What It Fits

Fits 3300 XL systems. Needs software setup for 3500 systems. Replaces older 7200 series 11mm/14mm sensors (upgrade all parts to 3300 XL).

Certifications

EMC: Meets European EMC standards
RFI/EMI: Resists radio interference
Multiple Approvals: Complies with global industry standards
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
