Armored 11 mm Probe | Bently Nevada – 330708-00-24-10-02-00

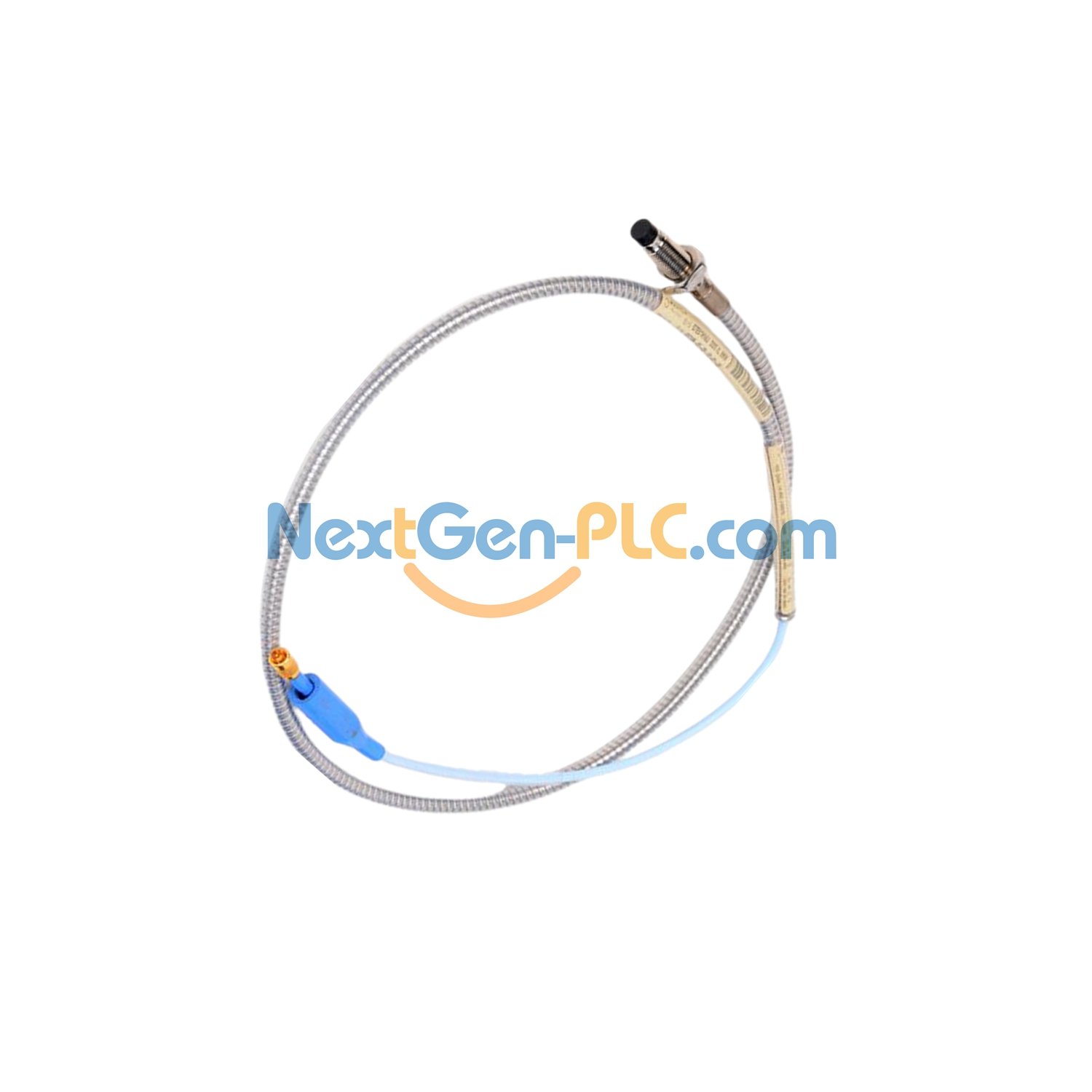

Bently Nevada 3300 XL 11mm Proximity Probe (330708-00-24-10-02-00)

Product Summary

This 3300 XL 11mm Proximity Probe by Bently Nevada (USA) comes with 1m FEP cable and Mini ClickLoc connector. Built with PPS tip and 304 stainless steel case, it works in -51°C to +177°C environments.

Model Code Details

• 330708: 11mm probe, 5/8-18 UNF thread, no armor
• 00: 0in unthreaded length
• 24: 2.4in case length
• 10: 1.0m cable (3.3ft)
• 02: Mini ClickLoc connector + standard cable
• 00: No agency approvals required

Key Specs

• Brand: Bently Nevada
• Type: 3300 XL 11mm Proximity Probe
• Materials: PPS tip, 304 stainless steel case
• Cable: 75Ω triaxial FEP-insulated (1m)
• Temp Range: -51°C to +177°C (-60°F to +351°F)
• Resistance: 5.9±0.5 ohms
• Weight: 0.17kg

Installation Guide

• Thread: 5/8-18 UNF
• Max Thread Depth: 0.938in
• Case Torque: 15.2 N•m (133 in•lb)
• Connector Torque: Finger tight (max 5 in•lb)
• Bend Radius: 25.4mm (1.0in)

Package Content

1 x 3300 XL 11mm Proximity Probe
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
