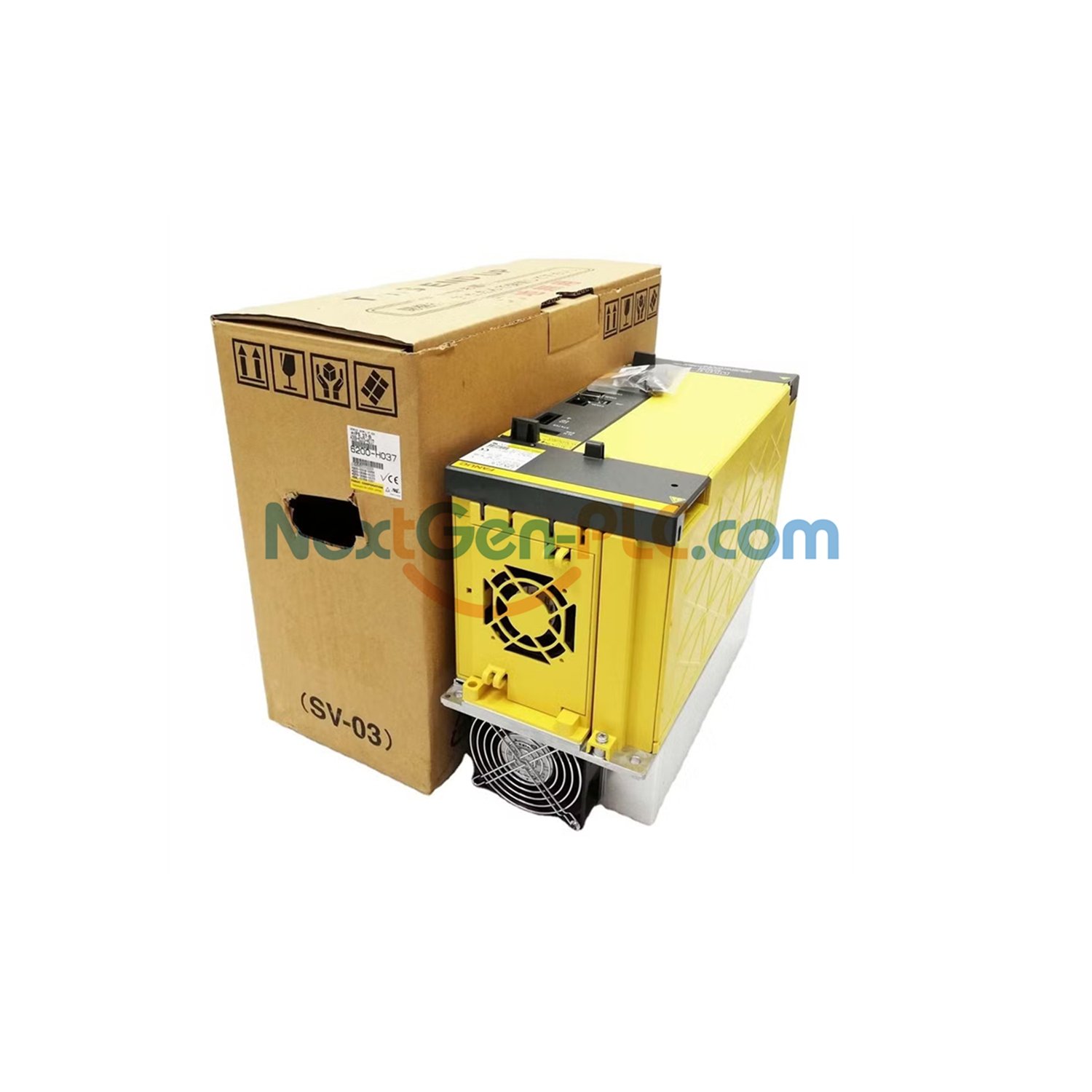

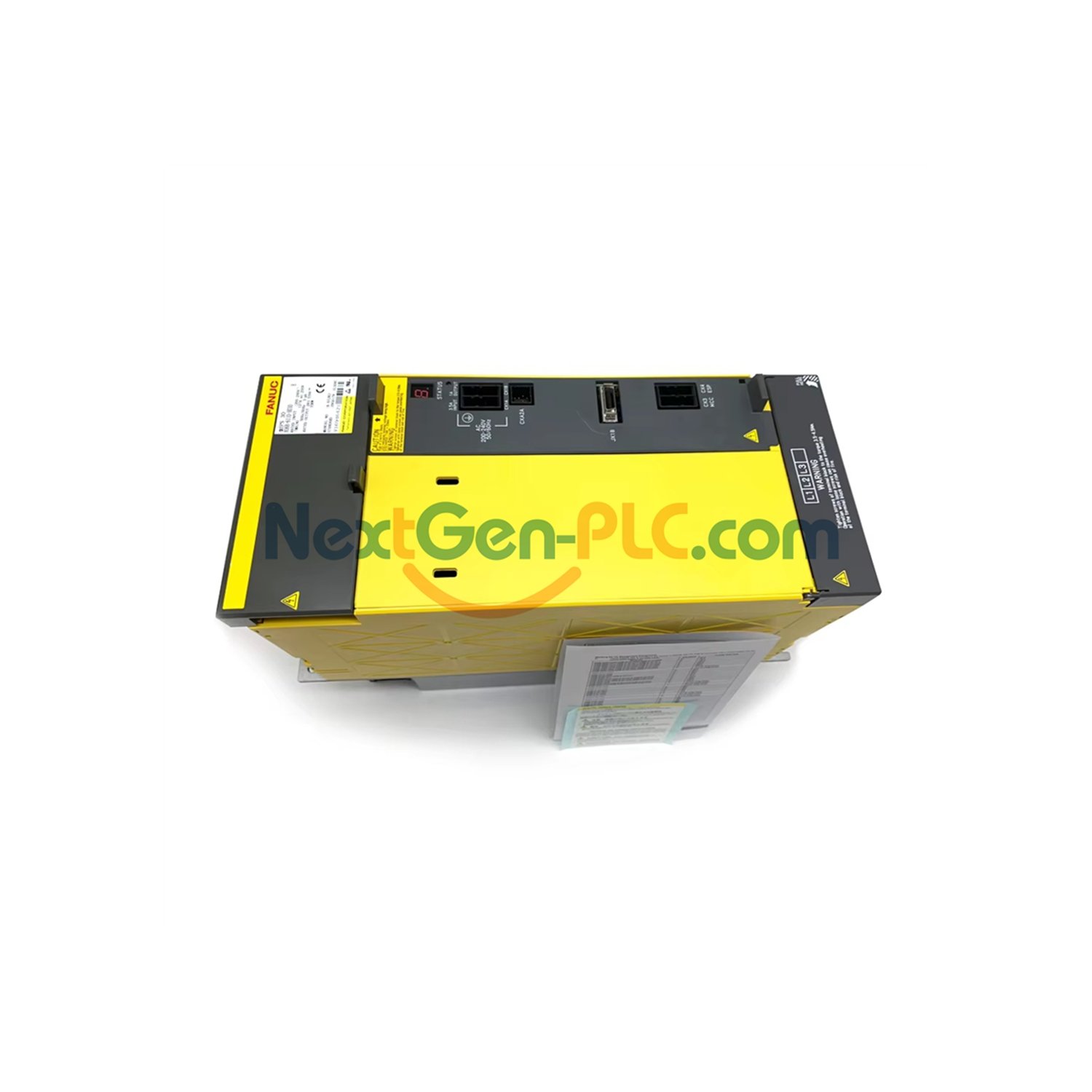

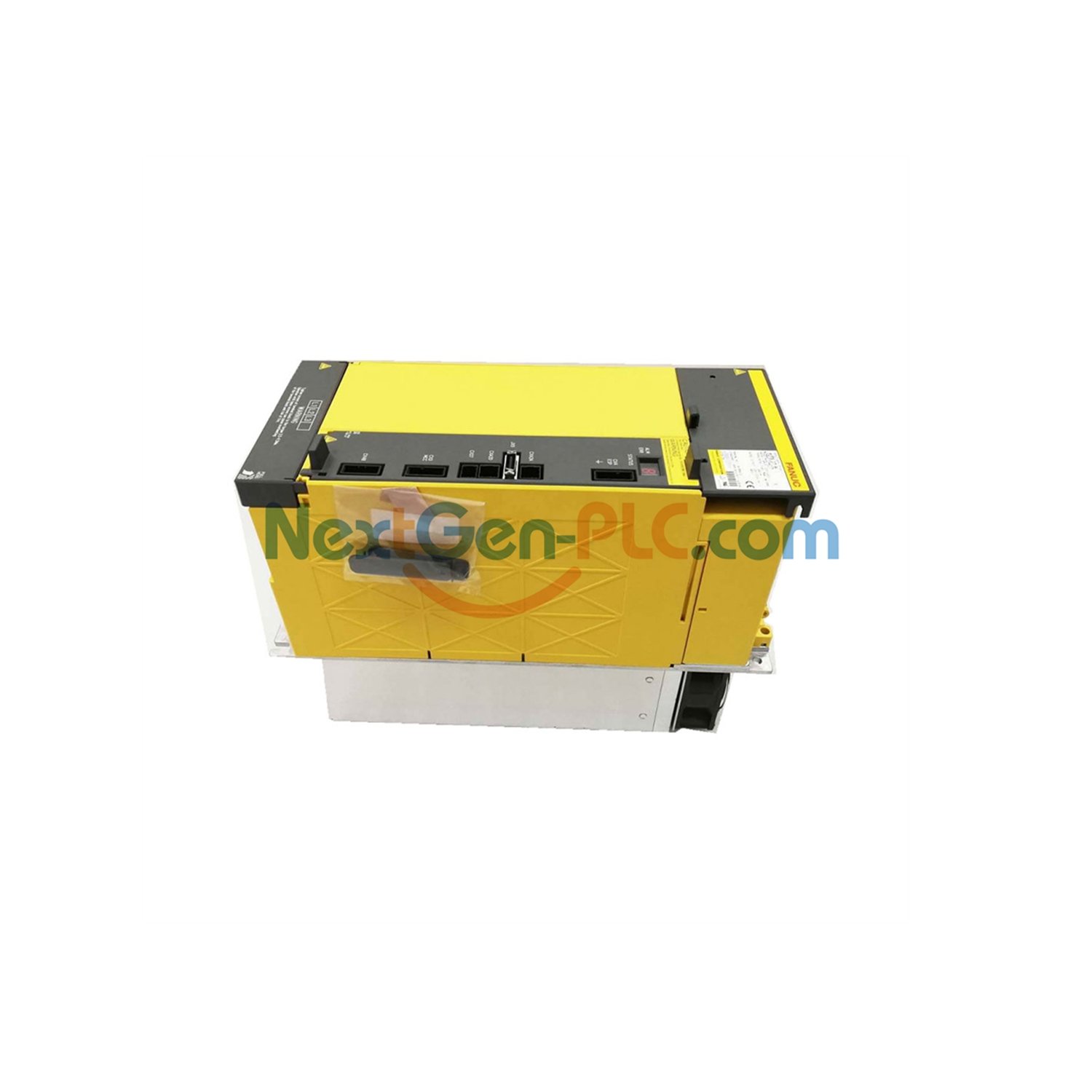

A06B-6250-H045 FANUC Servo Amplifier Module | 54 kW

FANUC A06B-6250-H045 High-Power Servo Amplifier Module

Key Technical Specifications

• Manufacturer: FANUC – a trusted name in industrial automation.
• Product Model: A06B-6250-H045.
• Product Type: Servo amplifier module.
• Rated Output Power: 54 kW for heavy-duty applications.
• Input Voltage: 380–480 VAC.
• Output Voltage: 537–679 VDC.
• Number of Phases: 3-phase system.
• Rated Input Current: 99 A at 400 V.
• Input Frequency: Works with 50/60 Hz power.
• Ambient Operating Temperature: Runs from 0°C to 55°C.
• Weight: 9.07 kg (20.00 lbs).

Environmental & Operational Durability

• Operates reliably in temperatures from 0°C to 55°C.
• Handles 50 Hz and 60 Hz input frequencies without adjustment.
• Delivers 54 kW output power for large motors and heavy loads.
• Output voltage range of 537–679 VDC ensures stable motor control.
• Built for continuous duty in industrial environments.
• Meets FANUC quality standards for long service life.

Frequently Asked Questions (FAQ)

• Q: Is this FANUC A06B-6250-H045 a new unit?
  A: Yes, it is 100% new and original. No refurbished or counterfeit items.
• Q: What input voltage does this servo amplifier need?
  A: It requires 380–480 VAC, 3-phase, 50/60 Hz input power.
• Q: What is the output voltage range?
  A: It delivers 537–679 VDC output voltage.
• Q: What is the rated power of the A06B-6250-H045?
  A: It provides 54 kW rated output power.
• Q: What is the input current rating?
  A: It draws 99 A at 400 V input current.
• Q: What is the operating temperature range?
  A: It works from 0°C to 55°C.
• Q: Does this module support both 50 Hz and 60 Hz?
  A: Yes, it works with 50 Hz and 60 Hz input frequencies.
• Q: How fast do you ship?
  A: We ship within 5 business days.
• Q: What carriers do you use?
  A: We use FedEx, UPS, and DHL.
• Q: Can I return this unit?
  A: Yes, we offer 30-day returns for unused items in original packaging.
