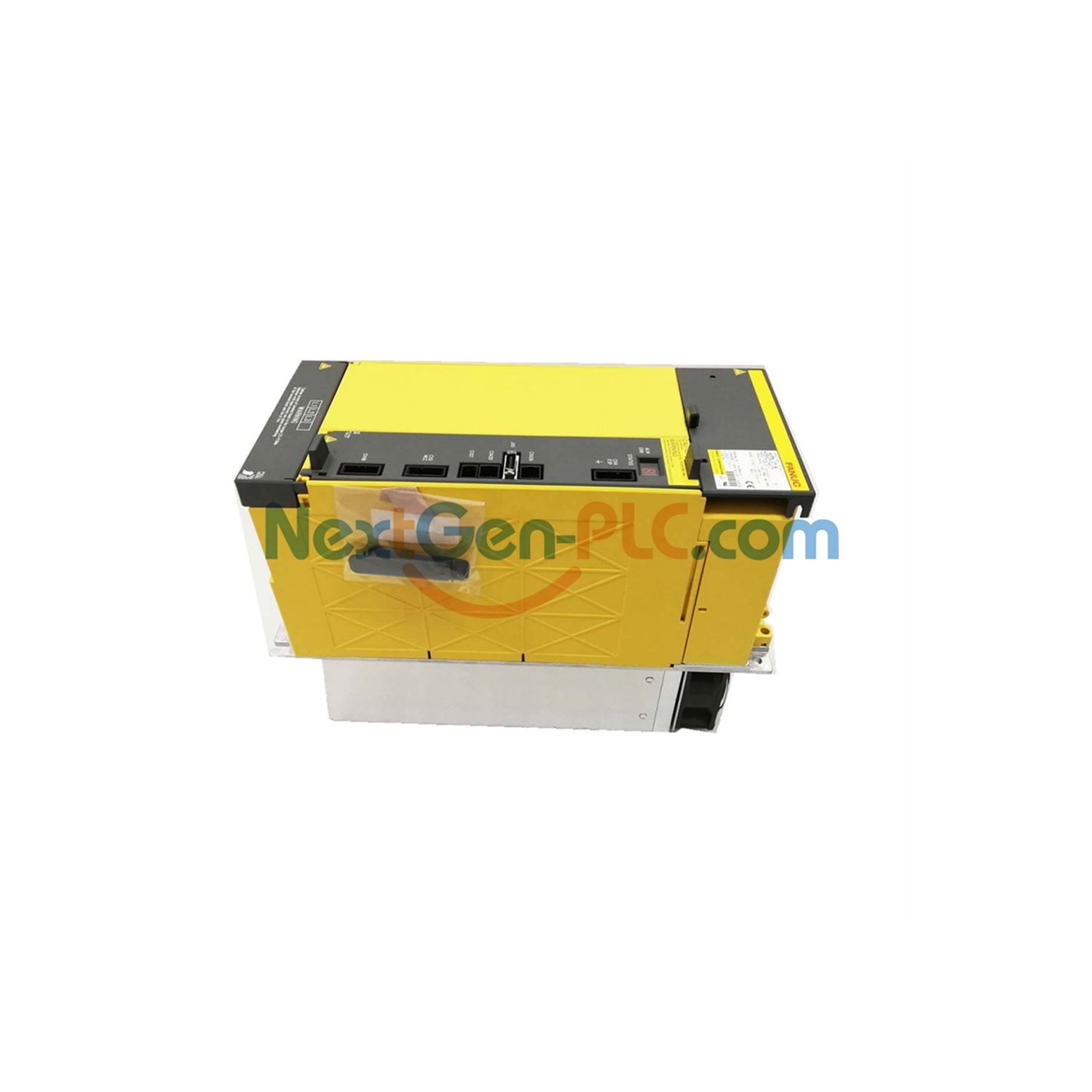

A06B-6120-H045 FANUC Power Supply Module | 50kW

FANUC A06B-6120-H045 Power Supply Module – High-Capacity Industrial Power

Key Technical Specifications

• Manufacturer & Series: FANUC – A06B product line
• Model Number: A06B-6120-H045
• Unit Type: Power Supply Module
• AC Input Voltage Range: 400–480 VAC (3-Phase)
• Input Current: 92 A at 400 VAC
• Input Frequency: 50/60 Hz
• Number of Phases: 3-Phase
• Output Voltage: 565–679 VDC
• Rated Output Power: 50 kW
• Maximum Output Current: 20 A
• Control Frequency: 2.5 kHz
• Ambient Operating Temperature Range: 0°C to 55°C
• Ambient Humidity: ≤90% RH (non-condensing)
• Weight: 30.00 lbs (13.61 kg)

Frequently Asked Questions (FAQ)

• Q: What is the typical lead time for shipping?
  A: We dispatch orders within 5 business days after payment confirmation.
• Q: Which shipping carriers do you use?
  A: We ship via FedEx, UPS, and DHL to ensure fast and trackable delivery worldwide.
• Q: What input voltage does this power supply module require?
  A: The A06B-6120-H045 requires a three-phase 400–480 VAC input; operating outside this range may cause malfunction.
• Q: What output voltage does this module provide?
  A: It delivers a DC output voltage range of 565–679 VDC, suitable for powering FANUC servo amplifiers and control systems.
• Q: What is the rated output power capacity?
  A: The module provides 50 kW rated output power with a maximum output current of 20 A.
• Q: What is the control frequency of this power supply?
  A: It operates at a control frequency of 2.5 kHz, enabling fast response to load changes.
• Q: What ambient temperature range does this unit support?
  A: It operates reliably from 0°C to 55°C, making it suitable for industrial environments.
• Q: Can I return the product if it does not meet my application needs?
  A: Absolutely. We support 30-day returns for unused items in original condition.
