A06B-6117-H103 FANUC Servo Amplifier Module | 2.5kW 283-339VDC

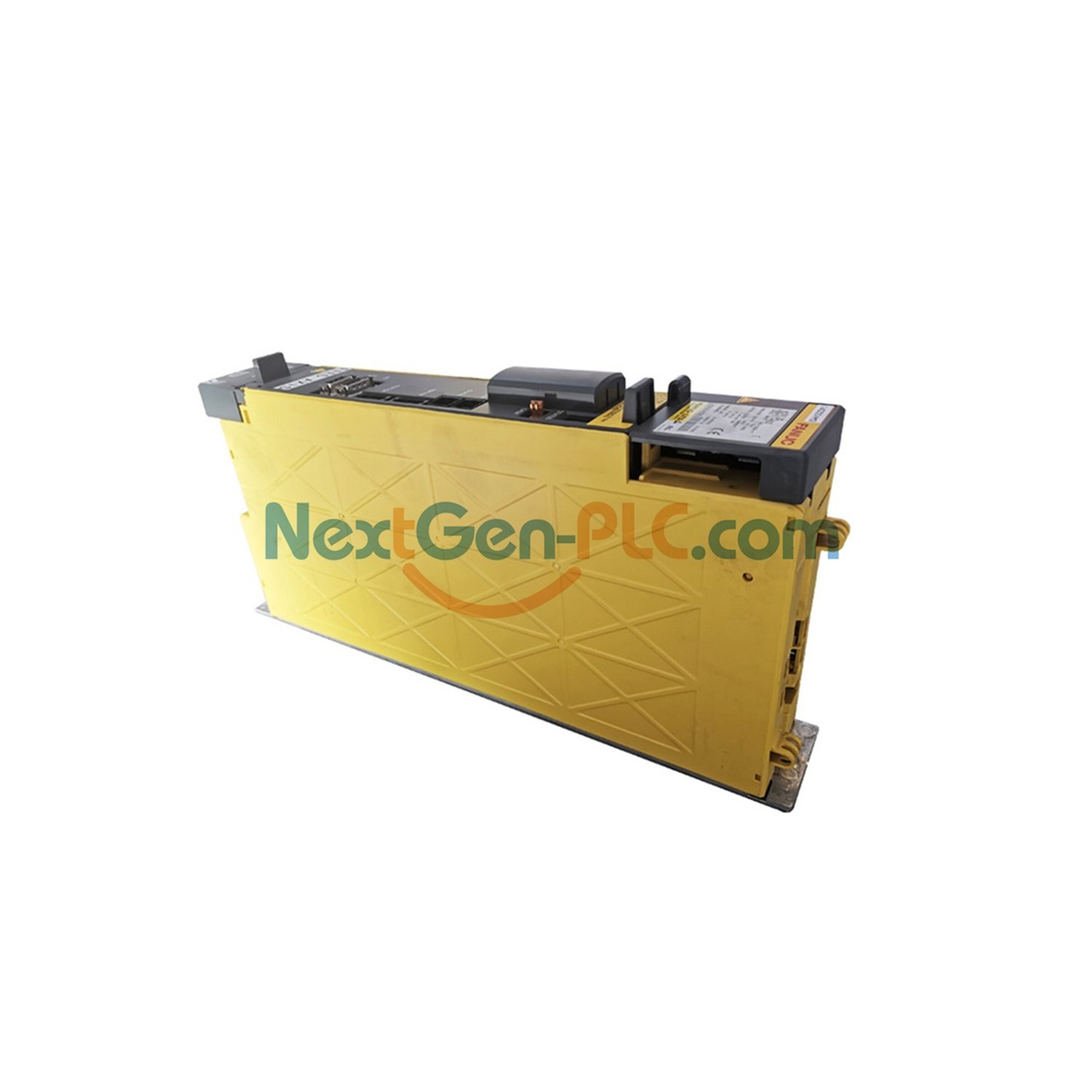

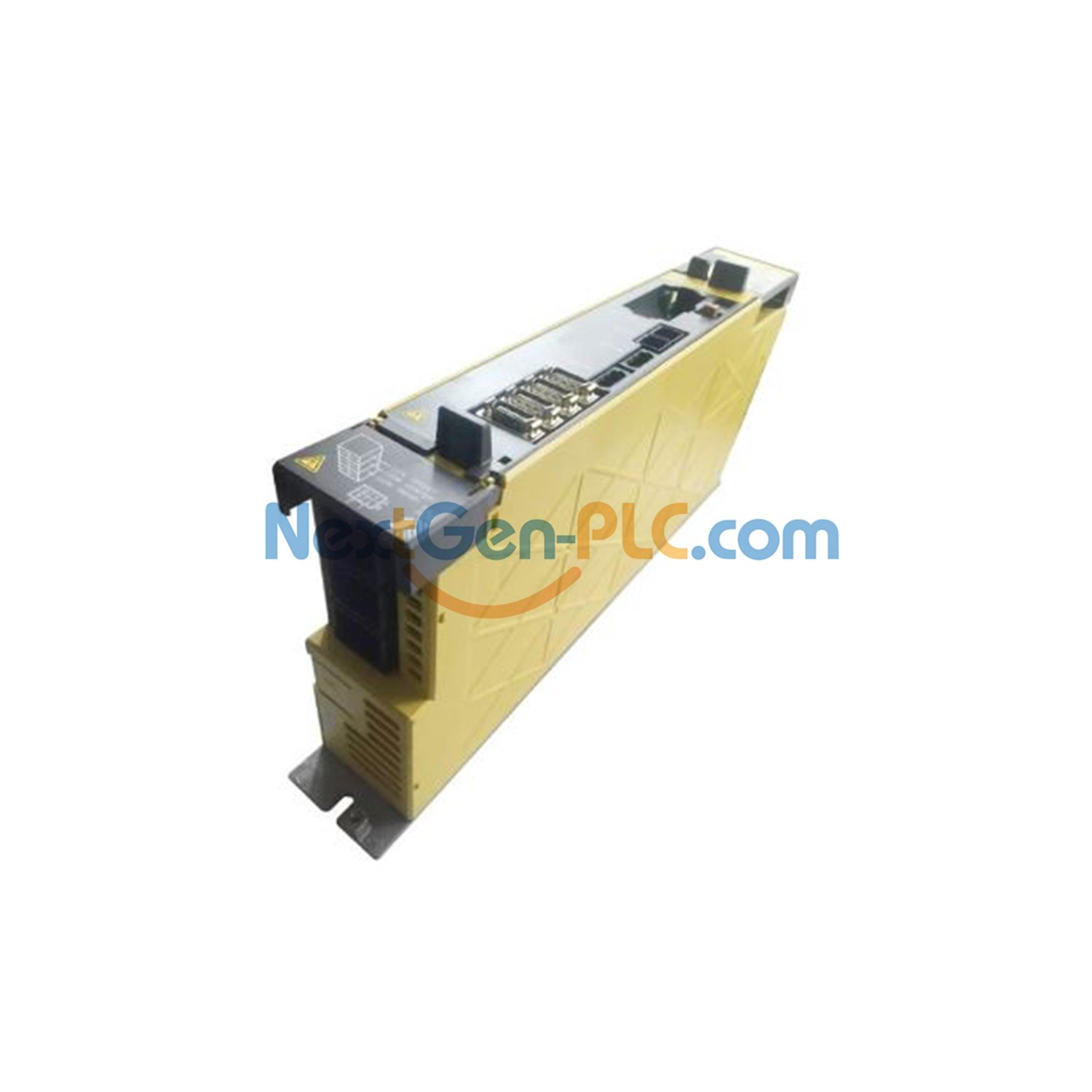

FANUC A06B-6117-H103 Servo Amplifier Module – Compact Precision Control

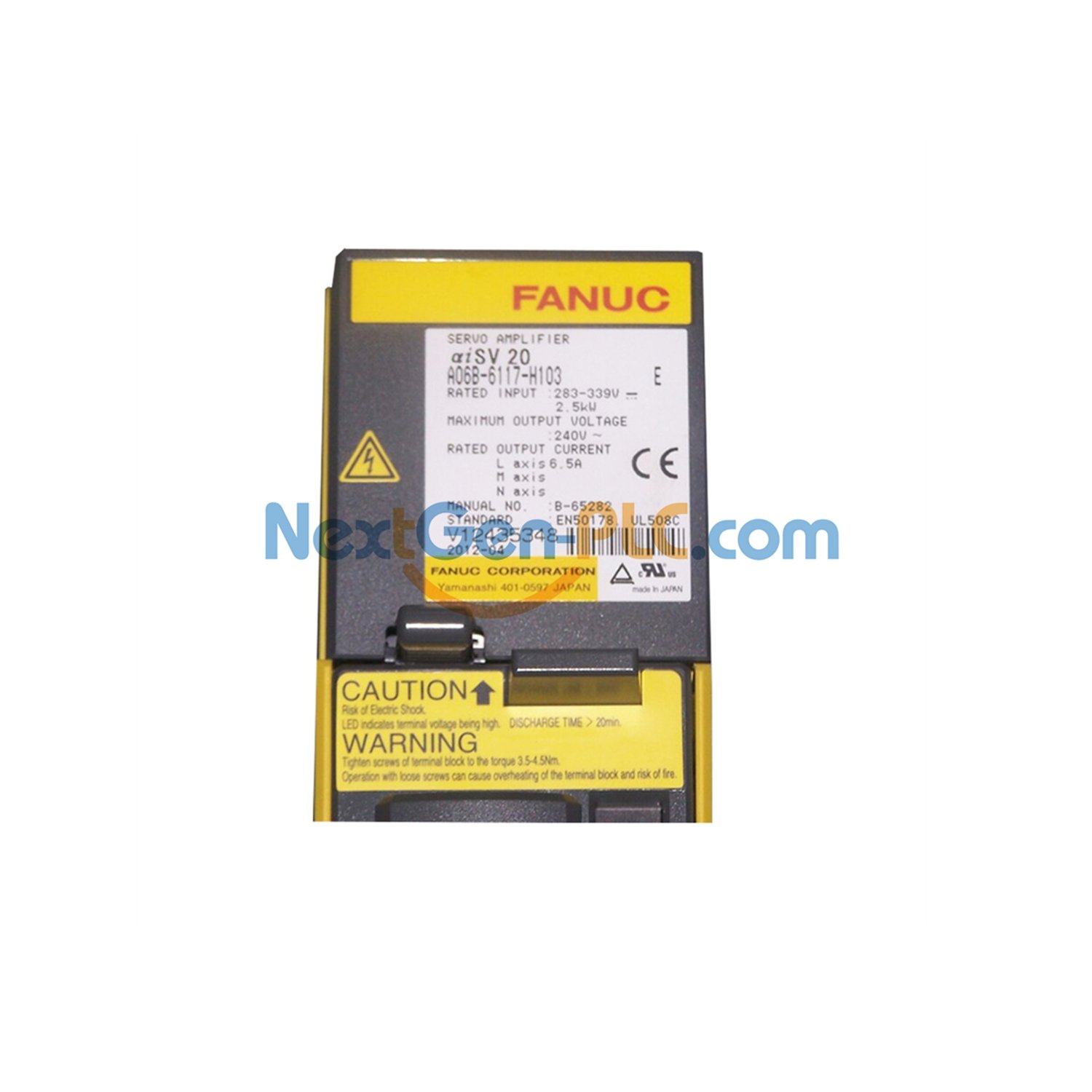

Key Technical Specifications

• Manufacturer & Series: FANUC – A06B product line
• Model Number: A06B-6117-H103
• Unit Type: Servo Amplifier Module
• DC Input Voltage Range: 283–339 VDC
• Rated Input Power: 2.5 kW
• Input Frequency: 50/60 Hz
• Output Voltage: 200–240 VAC
• Rated Output Current: 6.5 A (L-axis)
• Output Frequency Range: 0.1 – 800 Hz
• Maximum Ambient Operating Temperature: 55°C
• Minimum Ambient Operating Temperature: 0°C
• Ambient Humidity: ≤90% RH (non-condensing)
• Weight: 11.00 lbs (4.99 kg)

Reliable Environmental & Mechanical Design

• Operates consistently across a wide temperature range from 0°C up to 55°C.
• Withstands humidity levels up to 90% RH without condensation, ensuring stable performance.
• Weighs only 11.00 lbs (4.99 kg) for straightforward integration into compact control cabinets.
• Delivers a wide output frequency span from 0.1 to 800 Hz, enabling versatile motor control.
• Built specifically for L-axis control with a rated output current of 6.5 A.

Frequently Asked Questions (FAQ)

• Q: What is the typical lead time for shipping?
  A: We dispatch orders within 5 business days after payment confirmation.
• Q: Which shipping carriers do you use?
  A: We ship via FedEx, UPS, and DHL to ensure fast and trackable delivery worldwide.
• Q: What is the rated output current for this servo amplifier?
  A: The A06B-6117-H103 provides 6.5 A on the L-axis, suitable for compact servo motor control.
• Q: What input voltage does this module require?
  A: It strictly requires 283–339 VDC input; operating outside this range may cause malfunction.
• Q: Can I return the product if it does not meet my application needs?
  A: Absolutely. We support 30-day returns for unused items in original condition.
• Q: What output frequency range does this amplifier support?
  A: The module delivers an output frequency range from 0.1 Hz to 800 Hz, providing flexibility for various servo motors.
• Q: Does this unit withstand high ambient temperatures in factory environments?
  A: Yes, it operates reliably up to 55°C ambient temperature, meeting rigorous industrial demands.
