A06B-6096-H302 FANUC Servo Amplifier | 3-Axis 2.4 kW CNC Drive

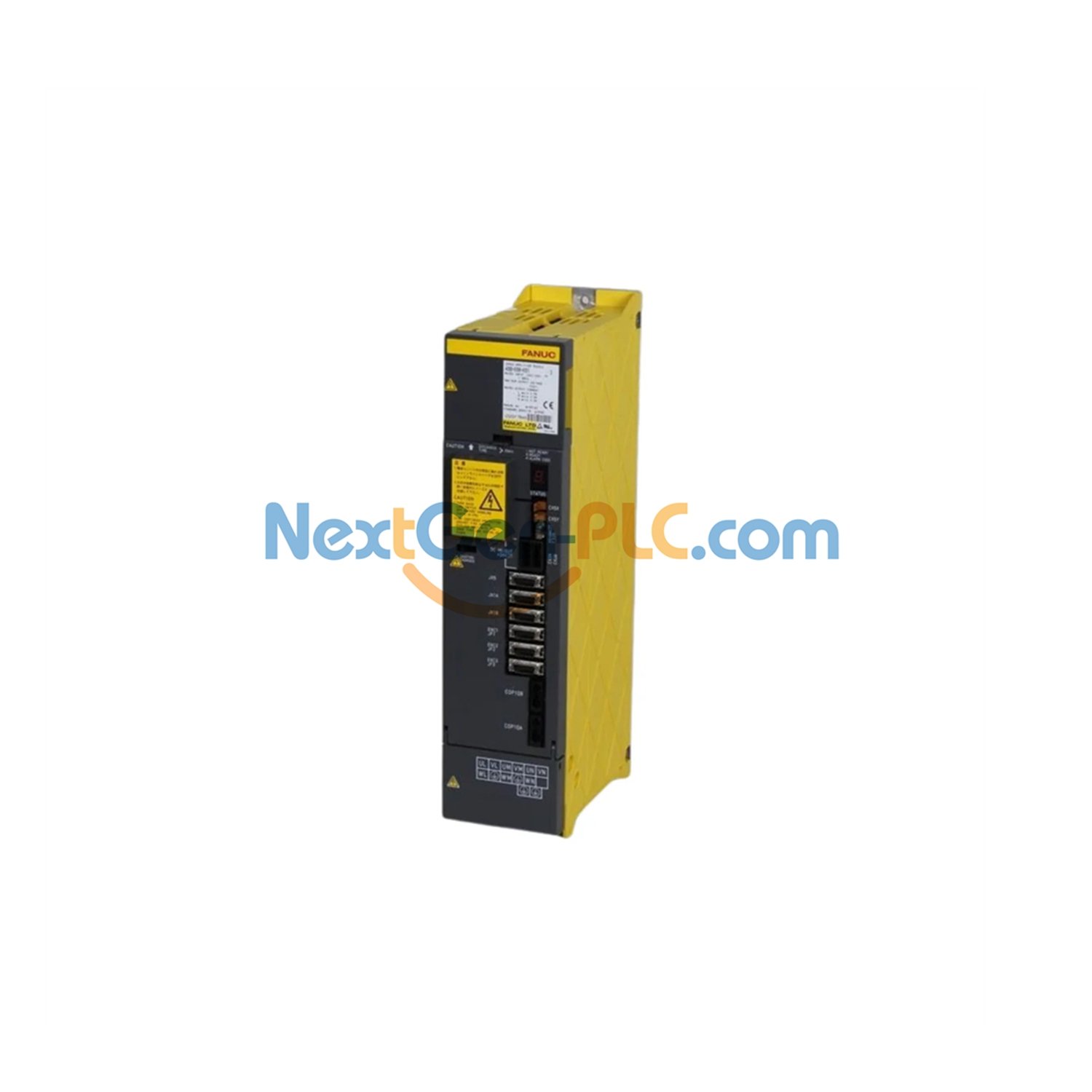

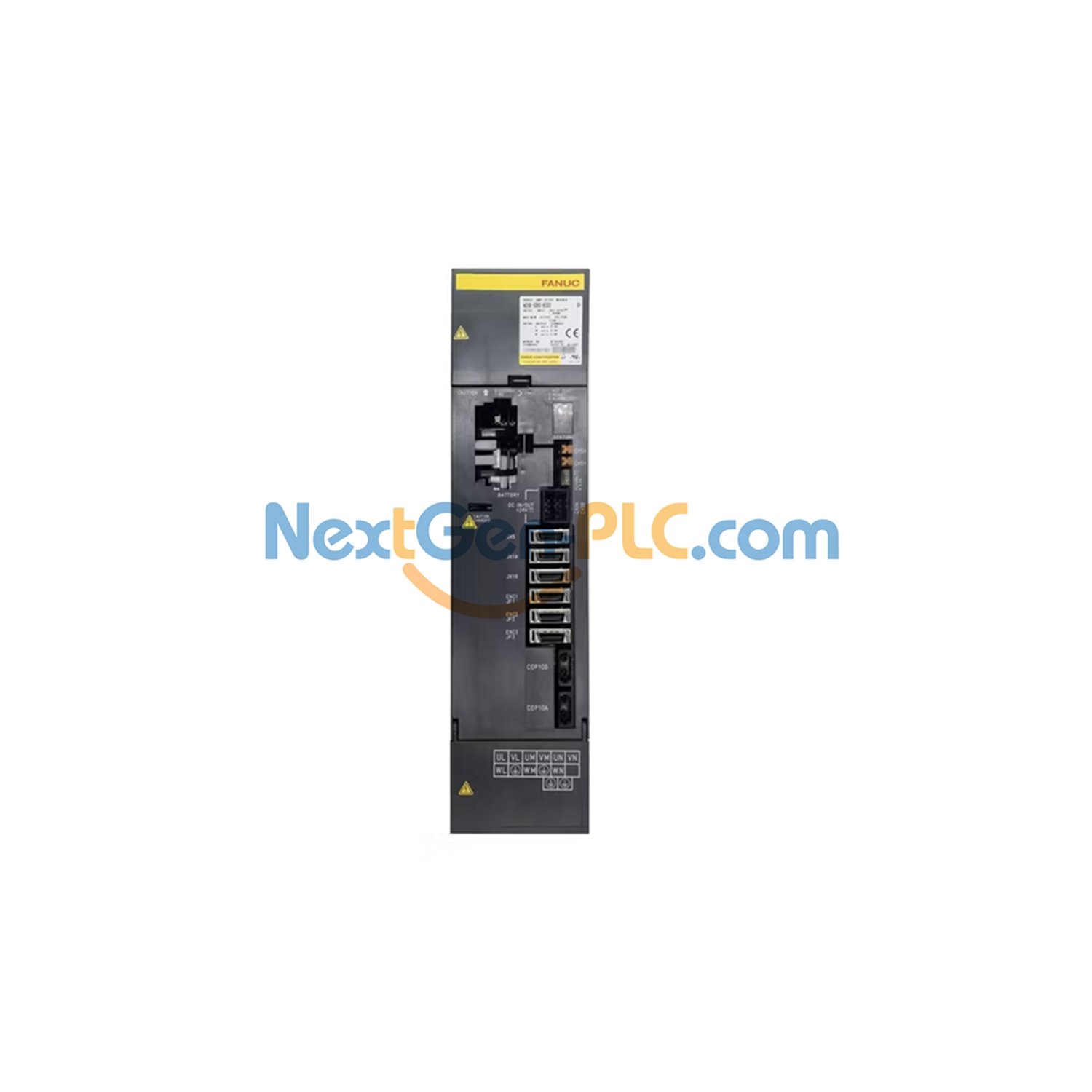

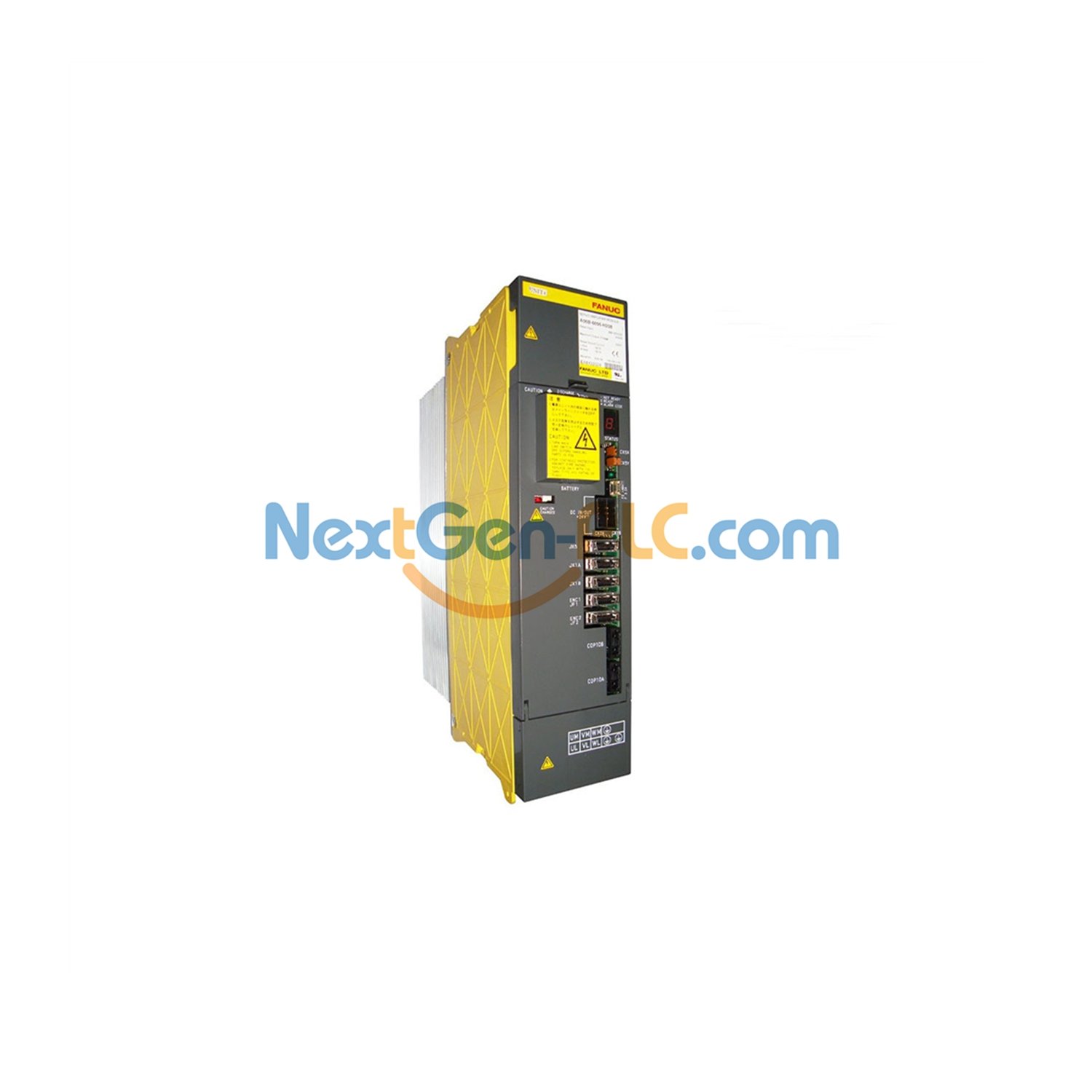

FANUC A06B-6096-H302 Servo Amplifier – 3-Axis Precision Control for CNC Systems

The A06B-6096-H302 from FANUC delivers precise servo control for CNC machines. This servo amplifier supports three axes in one unit. It provides stable power for demanding industrial applications. You can rely on it for accurate motion control.

• FANUC engineered the A06B-6096-H302 for multi-axis CNC systems. It handles three axes at once.
• It runs on 283-325V input voltage and delivers up to 230V output.
• Power rating is 2.4 kW, enough for heavy loads in machining centers.
• Current outputs: 3 amps for L-axis, and 5.9 amps each for M-axis and N-axis.
• It works in temperatures from 0°C to 40°C, suitable for factory floors.
• This unit tolerates 5G vibration and works up to 1000 meters altitude without losing performance.

Technical Specifications

• Manufacturer: FANUC
• Model: A06B-6096-H302 – Servo Amplifier
• Number of Axes: 3 axes
• Power Rating: 2.4 kW
• Input Voltage: 283-325V
• Output Voltage: 230V max
• L-Axis Current: 3 amps
• M-Axis Current: 5.9 amps
• N-Axis Current: 5.9 amps
• Operating Temperature: 0°C to 40°C
• Vibration Tolerance: 5G max
• Maximum Altitude: 1000 meters above sea level
• Weight: 9.98 kg (22.00 lbs)
• Application: CNC systems, multi-axis servo control

Frequently Asked Questions

• Q: Is the A06B-6096-H302 brand new and original?
  A: Yes. We sell brand new original FANUC units.
• Q: How many axes does this servo amplifier control?
  A: It controls three axes – L, M, and N – in one compact unit.
• Q: What is the power rating?
  A: It delivers 2.4 kW, suitable for demanding CNC applications.
• Q: What input voltage does it need?
  A: It requires 283-325V input. Output is up to 230V.
• Q: How fast do you ship?
  A: We ship within 5 business days via DHL, FedEx, or UPS.
• Q: Can I return it if needed?
  A: Yes. We offer 30-day returns on unopened units.
• Q: What is the operating temperature range?
  A: It works from 0°C to 40°C in industrial environments.
• Q: Does it handle vibration?
  A: Yes. It tolerates up to 5G vibration for stable performance.
