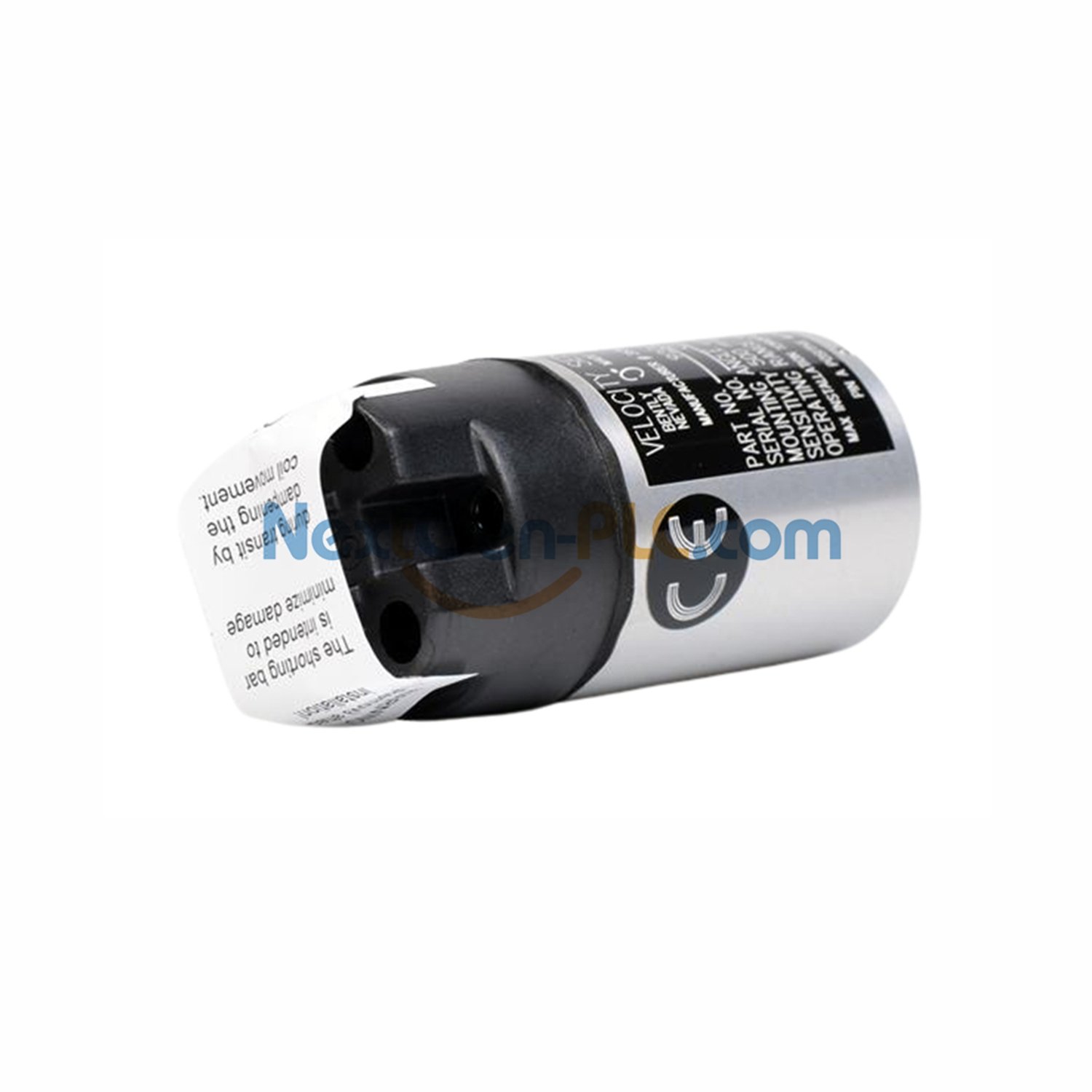

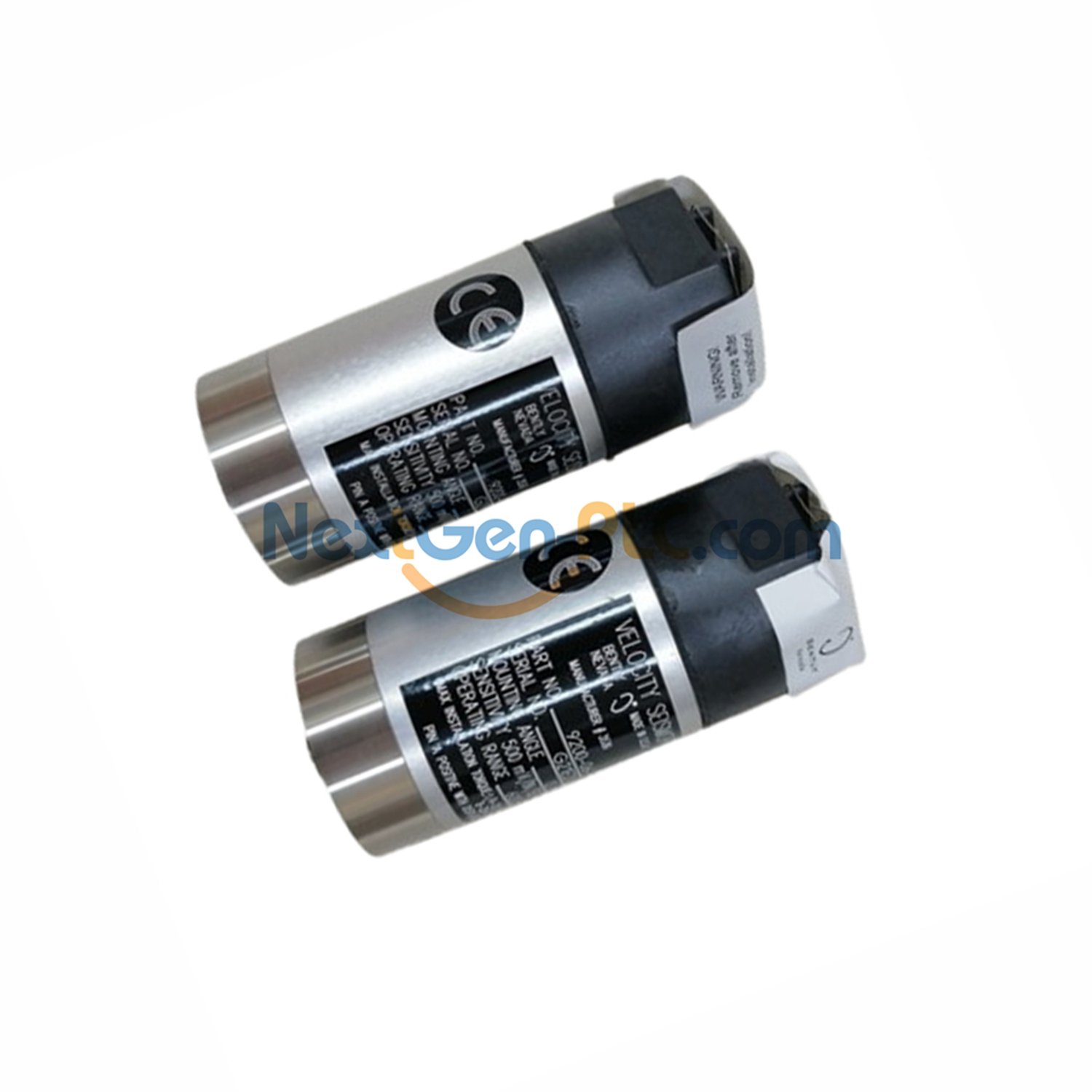

Bently Nevada 9200 Vibration Sensor
New and original in factory packing. This sensor checks machine health by measuring vibration. The two-wire design is easy to install. It gives accurate speed measurements in factories.
What the Model Number Means
9200-01-05-10-00:
01: Mounting Angle: 0±2.5° | Min. Operating Frequency: 4.5 Hz (270 cpm)
05: Connector: Terminal block top mount (no cable)
10: Mounting Base: Circular; M10X1 stud
00: Agency Approvals: None required
Technical Data
| Brand | Bently Nevada |
| Range | 25 mm/s (1 in/s) at 100Hz |
| Accuracy | ±5% |
| Output | 20 mV/mm/s (500 mV/in/s) |
| Temperature | -29°C to 121°C (-20°F to 250°F) |
| Coil Resistance | 1250 Ohms ±5% |
| Environment | Dust and moisture resistant. Up to 95% humidity. |
How to Install
Mount using the M10X1 stud. Point it the right way (as per calibration). Connect to terminal block pins A and B. Use a 10,000 Ohm load.
Works With
Fits standard systems that take vibration speed signals. Use on turbines, pumps, and compressors.
Certifications
No special approvals needed.
What’s in the Box
- 9200-01-05-10-00 Sensor unit
- Neoprene gasket
- Factory papers
Download PDF file here:9200 and 74712 Seismoprobe Velocity Transducers Datasheet – 141626
