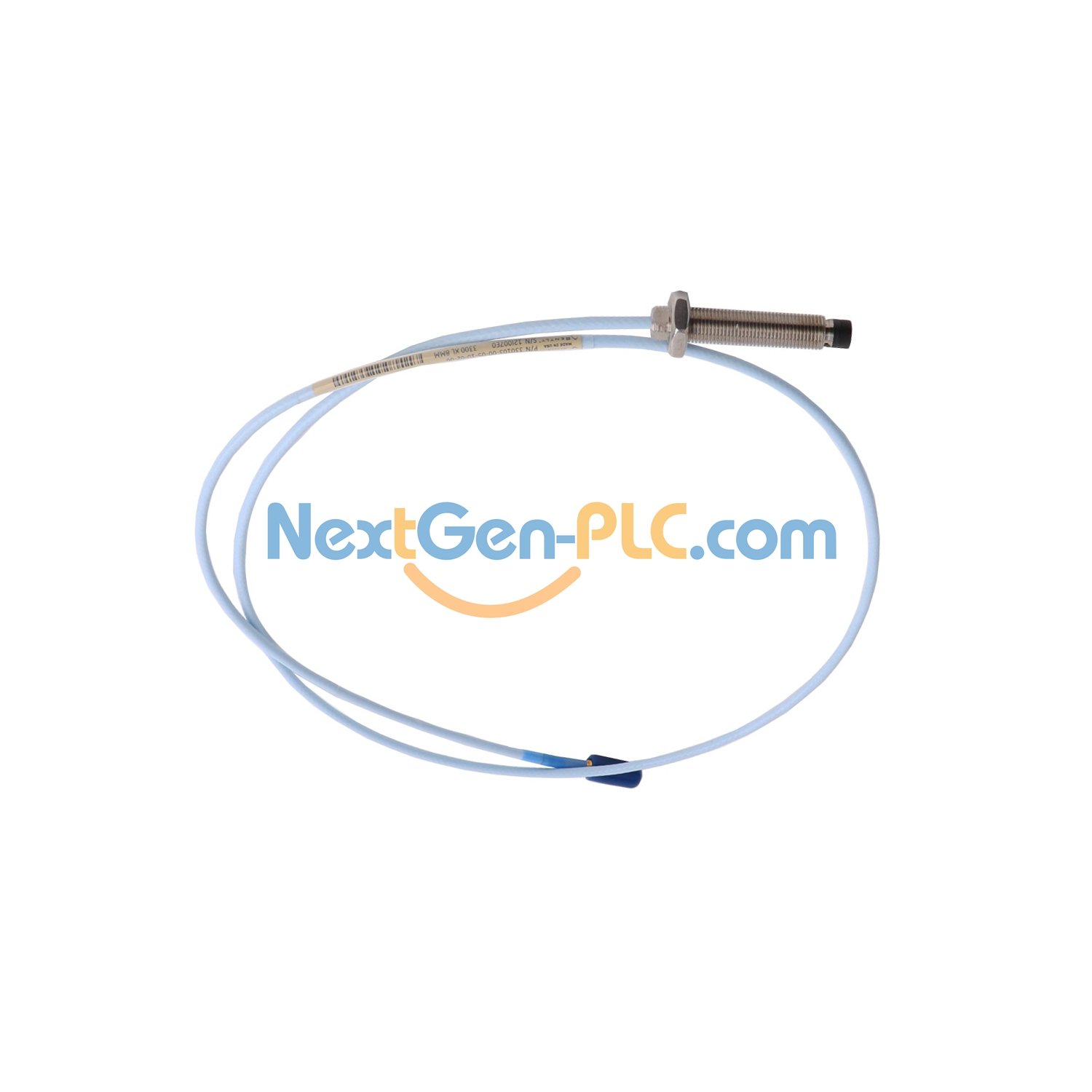

Bently Nevada 3300 XL 8mm Heavy-Duty Vibration Probe
Model: 330101-40-75-10-01-CN
Key Features:
- ✓ 8mm rugged probe tip
- ✓ 3/8-24 UNF threaded
- ✓ 330N cable pull strength
- ✓ -52°C to +218°C range
Basic Specs:
- • 2mm measurement range
- • 7.87 V/mm output
- • 1.0m cable length
- • Made in USA
Model Number Decoder
330101
Base model (8mm probe)
-40-
4.0″ unthreaded length
-75-
7.5″ overall case length
-10-
1.0 meter cable
-01
ClickLoc connector with protector
-CN
Country specific approval
Technical Highlights
- Linear Range: 0.25-2.3mm
- Accuracy: ±5% at 20°C
- Humidity: <3% change at 93% RH
- Cable: 69.9pF/m capacitance
- Weight: 323g/m
- Pressure Seal: Viton® O-ring
Installation Guide
- Mount with 3/8-24 UNF thread
- Set 1.27mm gap to target
- Use shielded 16-24 AWG cable
- Max 305m wiring distance
Industrial Applications
Power Generation
Oil & Gas
Marine Propulsion
Heavy Machinery
Package Contents
- 3300 XL 8mm Probe
- ClickLoc connector with protector
- Installation documentation
- Optional COO available
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
