8 mm Probes With Armor | Bently Nevada – 330104-00-03-90-11-00

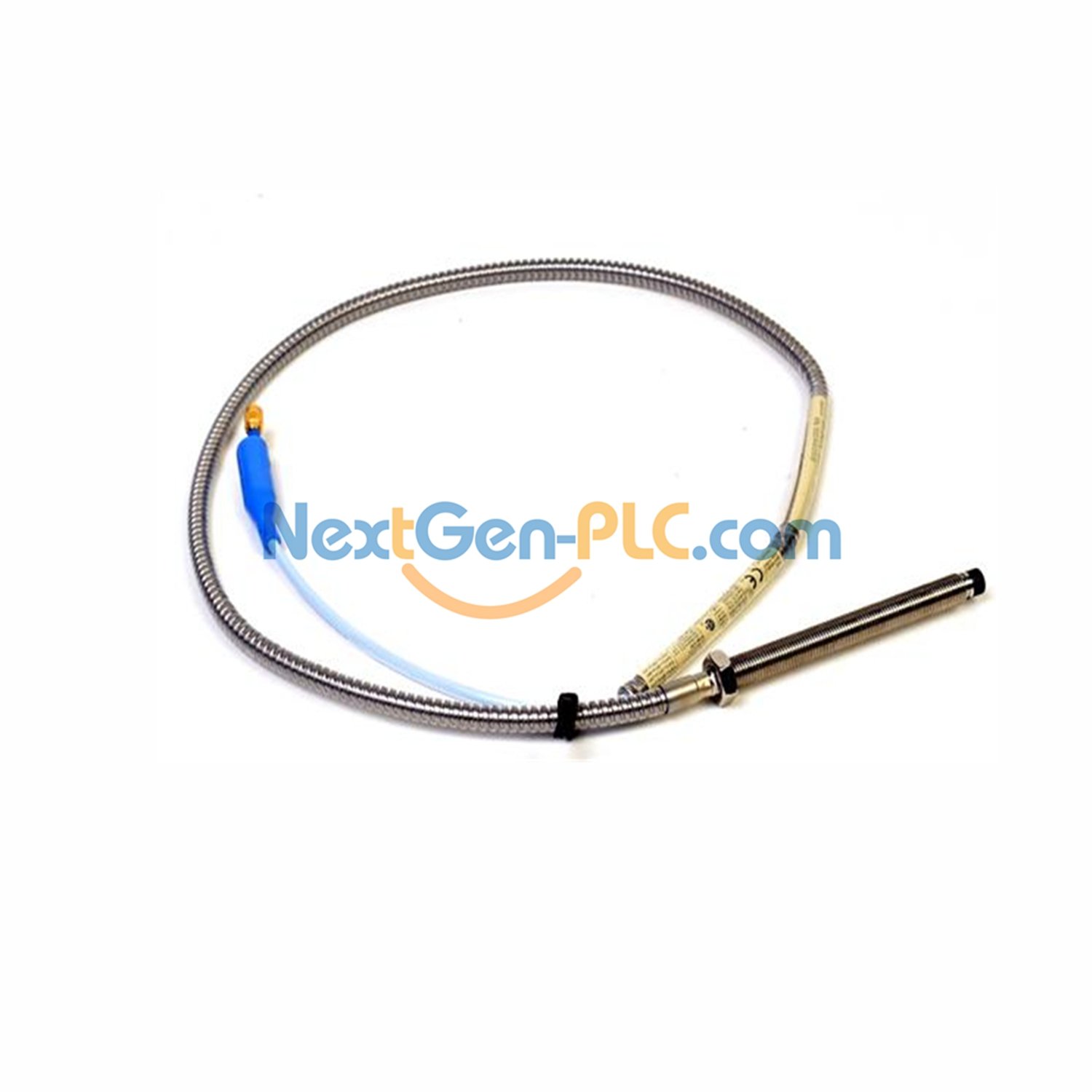

Bently Nevada 3300 XL 8mm Proximity Probe (Model: 330104-00-03-90-11-00)

Industrial-grade vibration sensor with 8mm range and stainless steel body. Perfect for machine health monitoring in normal environments.

Product Highlights

• Brand: Bently Nevada
• Model: 3300 XL 8mm
• Full Part Number: 330104-00–03–90–11–00
  • 00: Standard length (0mm unthreaded)
  • 03: 30mm case length
  • 90: 9m (29.5ft) cable
  • 11: ClickLoc connector with protector
  • 00: No special approvals needed

Key Features

• Thread Size: M10 x 1 with armor
• Measurement: 1.27mm (50 mils) gap
• Resistance: 9.87Ω ±0.50Ω
• Power: -17.5V to -26V DC
• Temp Range: -55°C to +232°C
• Materials: PPS tip, stainless steel body
• Seal: Viton® O-ring

Easy Installation

• Screw in with M10 threads
• Keep 1.27mm from target
• Works with standard 3300 XL monitors

Compatible With

• 3300 XL monitoring systems
• AISI 4140 steel targets
• Standard industrial environments

What You Get

• 1 proximity probe
• 9m FluidLoc cable with connector
• Connector protector

Common Uses

Ideal for pumps, motors, and gearboxes in non-hazardous areas. Monitors shaft vibration and position.

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
