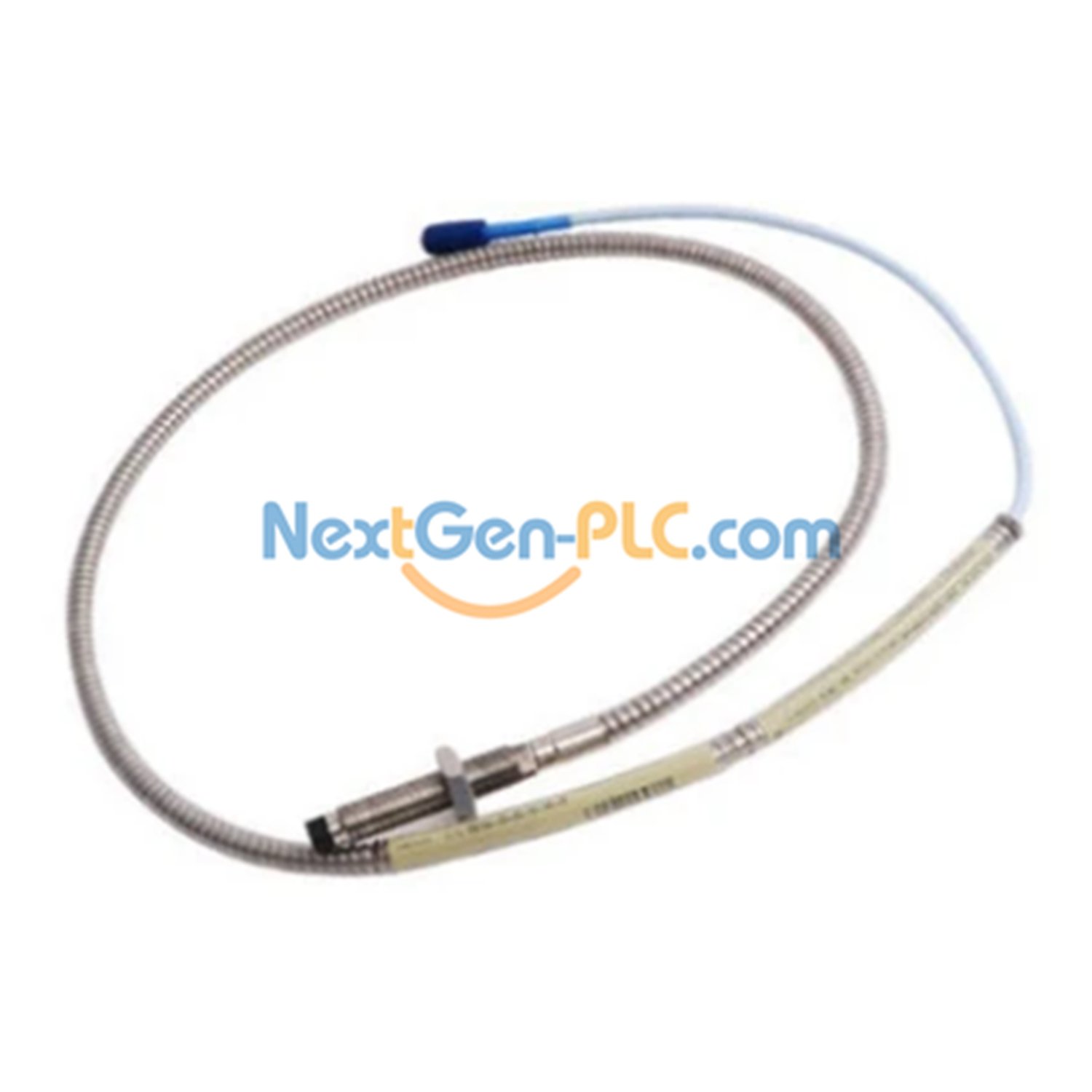

Bently Nevada 330910-14-19-10-02-00: 3300 NSv Proximity Probe

Key Technical Specifications

• Brand & Model: Bently Nevada 330910-14-19-10-02-00 (3300 NSv Probe).
• Linear Range: 1.5 mm (60 mils) from 0.25 mm to 1.75 mm (10 to 70 mils).
• Recommended Gap Setting: 1.0 mm (40 mils) for standard operation.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability error.
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils).
• Frequency Response: 0 to 10 kHz typical, +0, -3 dB with up to 305 m field wiring.
• Probe DC Resistance (RPROBE): 4.2 ± 0.5 ohms for 1.0 meter length.
• Extension Cable DC Resistance: Center conductor 0.220 Ω/m, shield 0.066 Ω/m.
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG), max length 305 meters (1000 feet).
• Operating & Storage Temperature: -52°C to +177°C (-62°F to +351°F).
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 304 stainless steel (SST).
• Probe Cable: 75 Ω coaxial FEP insulated, total lengths: 0.5, 1, 5, or 7 meters.
• Minimum Bend Radius: 25.4 mm (1.0 in) with or without SST armor.
• Target Size (flat target): Minimum 8.9 mm diameter, recommended 13 mm diameter.
• Pressure Seal: Viton O-ring designed for differential pressure sealing.
• Thread Type: M10X1 probe case thread.

Installation and Torque Guidelines

• Recommended probe case torque: Finger tight, maximum 0.56 N•m (5 in•lb).
• Connector-to-connector torque (3/8-24 or M10X1): Recommended 11.3 N•m (100 in•lb), maximum 33.9 N•m (300 in•lb).
• Connector first three threads torque: Recommended 7.5 N•m (66 in•lb), maximum 22.6 N•m (200 in•lb).
• Thread engagement limits (3/8-24): Maximum length 0.563 inches.
• System weight (typical): Probe from 14 to 150 grams (0.5 to 5.3 oz).
• Temperature classification (EPL Ga/Gc): T1 to T5 from -55°C up to +232°C depending on class.

Environmental and Mechanical Features

• The 3300 NSv Proximity Probe resists chemicals better than the 3300 RAM probe.
• Side-view characteristics improve gapping at the same distance from target.
• Probe operates reliably from -52°C to +177°C in harsh environments.
• FEP insulated coaxial cable ensures excellent signal integrity.
• Viton O-ring seals differential pressure between probe tip and case.
• AISI 304 stainless steel case provides strong corrosion resistance.
• Minimum target diameter is 8.9 mm, but 13 mm ensures stable scale factor.
• For shafts under 13 mm, reduce gap to limit scale factor change (see Figure 12).
