330910-06-13-10-01-CN Bently Nevada 3300 NSv Proximity Probe

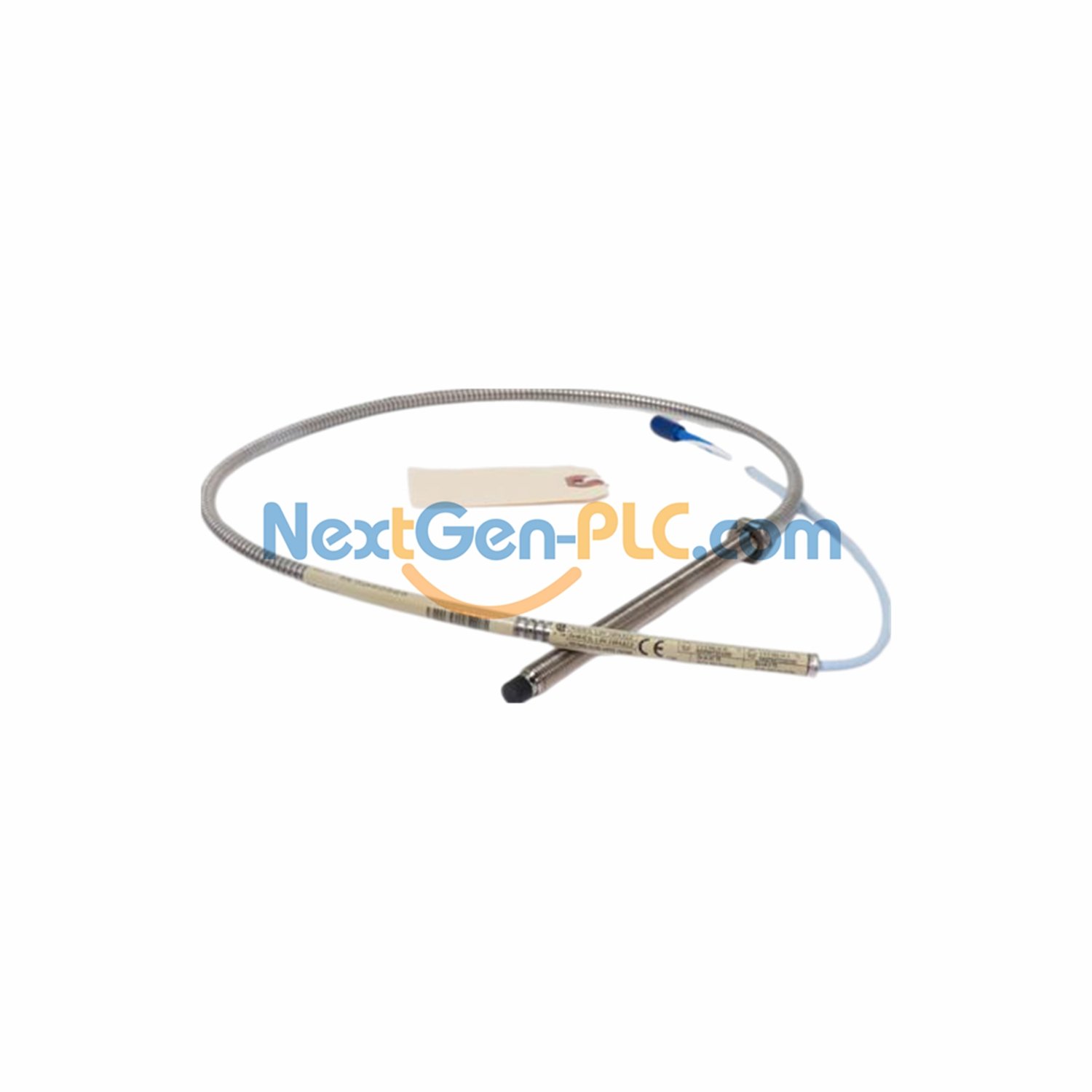

Bently Nevada 3300 NSv Proximity Probe – Model 330910-06-13-10-01-CN

Key Technical Specifications

• Brand & Model: Bently Nevada 330910-06-13-10-01-CN (3300 NSv Probe).
• Linear Range: 1.5 mm (60 mils) starting from 0.25 mm to 1.75 mm from target.
• Recommended Gap Setting: 1.0 mm (40 mils).
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability error.
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils).
• Frequency Response: 0 to 10 kHz with +0, -3 dB typical using up to 305 m field wiring.
• Probe DC Resistance: 4.2 ± 0.5 ohms (center to outer conductor).
• Extension Cable DC Resistance: Center conductor 0.220 Ω/m, shield 0.066 Ω/m.
• Extension Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Operating Temperature: -52°C to +177°C (-62°F to +351°F).
• Storage Temperature: Same range: -52°C to +177°C.
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 304 stainless steel (SST).
• Probe Cable: 75 Ω coaxial, FEP insulated, total length 1.0 meter (model -10 option).
• Minimum Bend Radius: 25.4 mm (1.0 inch) with or without SST armor.
• Maximum Torque (hand tight): 0.56 N•m (5 in•lb). Recommended: finger tight.
• Connector Type: Miniature coaxial ClickLoc with connector protector (-01 option).
• Thread Type: M10X1 thread with armor.
• Agency Approval: CN (Country Specific).

Mechanical & Environmental Robustness

• Pressure Seal Design: The 3300 NSv probe uses a Viton O-ring to seal differential pressure between tip and case.
• Chemical Resistance: Better than 3300 RAM probes, suitable for process compressor applications.
• Temperature Classification (EPL Ga/Gc): T1 (-55°C to +232°C), T2 (-55°C to +177°C), T3 (-55°C to +120°C), T4 (-55°C to +80°C), T5 (-55°C to +40°C).
• For EPL Dc: T280°C @ Ta -55°C to +232°C, T225°C @ Ta -55°C to +177°C, T170°C @ Ta -55°C to +120°C, T130°C @ Ta -55°C to +80°C, T105°C @ Ta -55°C to +100°C, T90°C @ Ta -55°C to +40°C.
• Target Size Recommendation: Minimum 8.9 mm diameter; recommended minimum 13 mm (0.5 in) diameter flat target.
• System Weight (probe only): Approximately 14 to 150 g (0.5 to 5.3 oz).
• Thread Engagement Limits (3/8-24): Maximum length 0.563 inches.
• Connector-to-connector torque (M10X1 case): Max rated 33.9 N•m (300 in•lb), recommended 11.3 N•m (100 in•lb).

Frequently Asked Questions (FAQ)

• Is this probe brand new and original? Yes, we provide only new & original Bently Nevada 3300 NSv probes in factory packing.
• What is the linear measurement range? The 330910-06-13-10-01-CN offers a 1.5 mm (60 mils) linear range from 0.25 mm to 1.75 mm from target.
• Can I use this probe with existing 3300 RAM extension cables? Yes, the 3300 NSv series is mechanically and electrically interchangeable with the previous 3300 RAM probes.
• What is the maximum field wiring length? You can use up to 305 meters (1000 feet) of three-conductor shielded triad cable between the Proximitor Sensor and the monitor.
• Do you have stock available? Yes, we keep original 3300 NSv probes in stock for immediate shipment.
• How fast will you ship? We dispatch all orders within 5 business days after payment confirmation.
• Which carriers do you use? We ship via FedEx, UPS, and DHL for reliable worldwide delivery.
• What is your return policy? We support 30-day returns for unused items in original condition.
• What temperature range can this probe withstand? The probe operates from -52°C to +177°C (-62°F to +351°F).
• Does the probe include armor? Yes, this model features stainless steel armor for enhanced durability.
