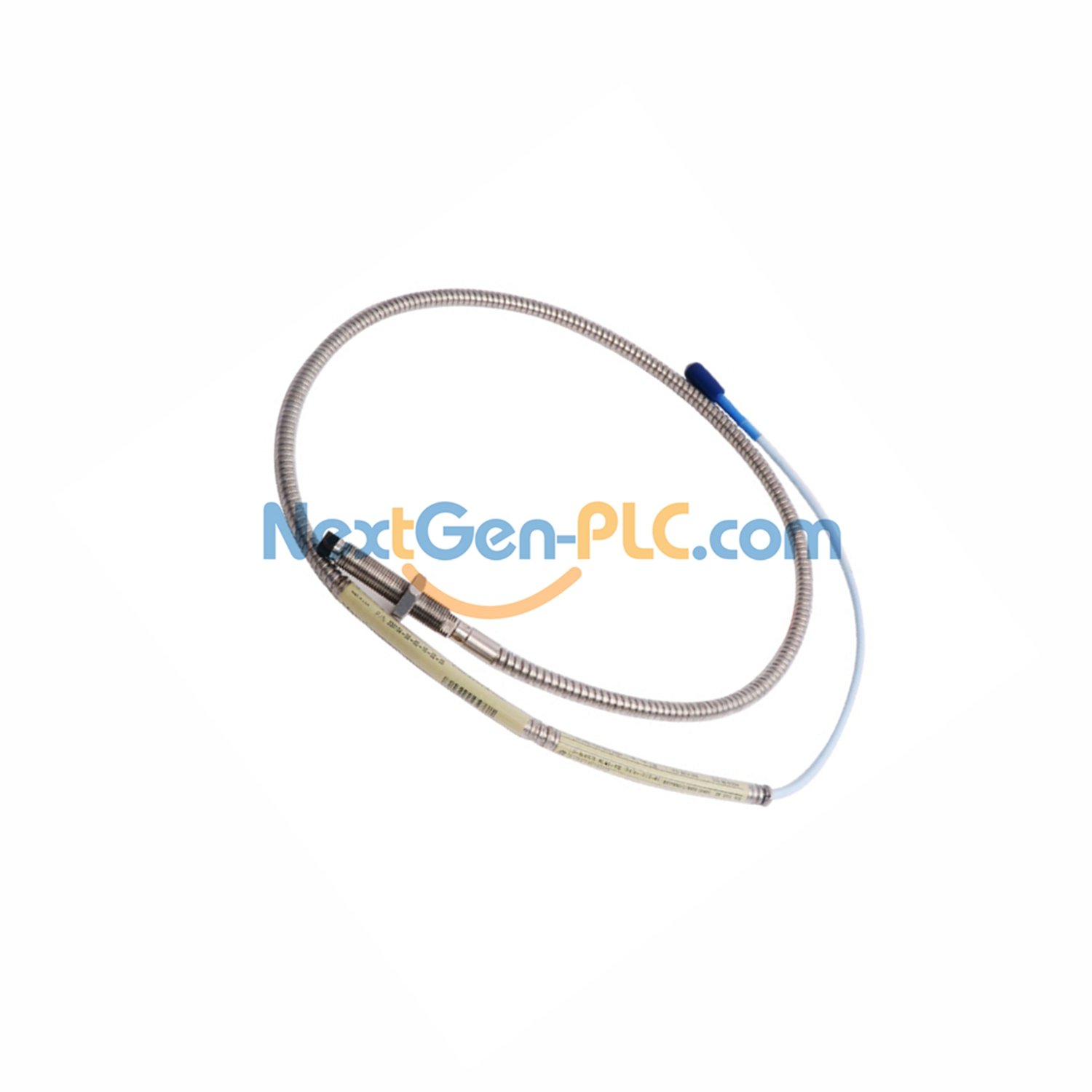

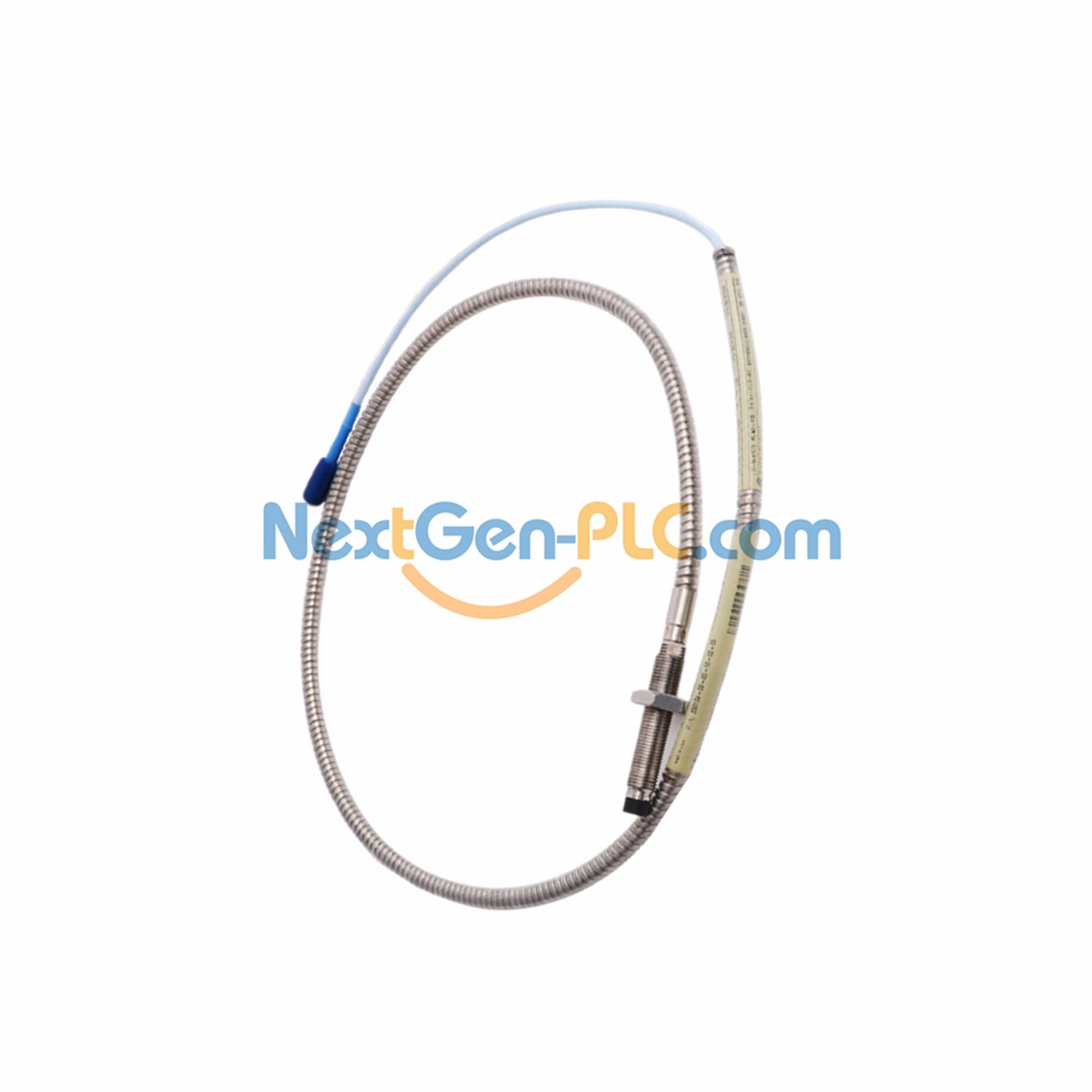

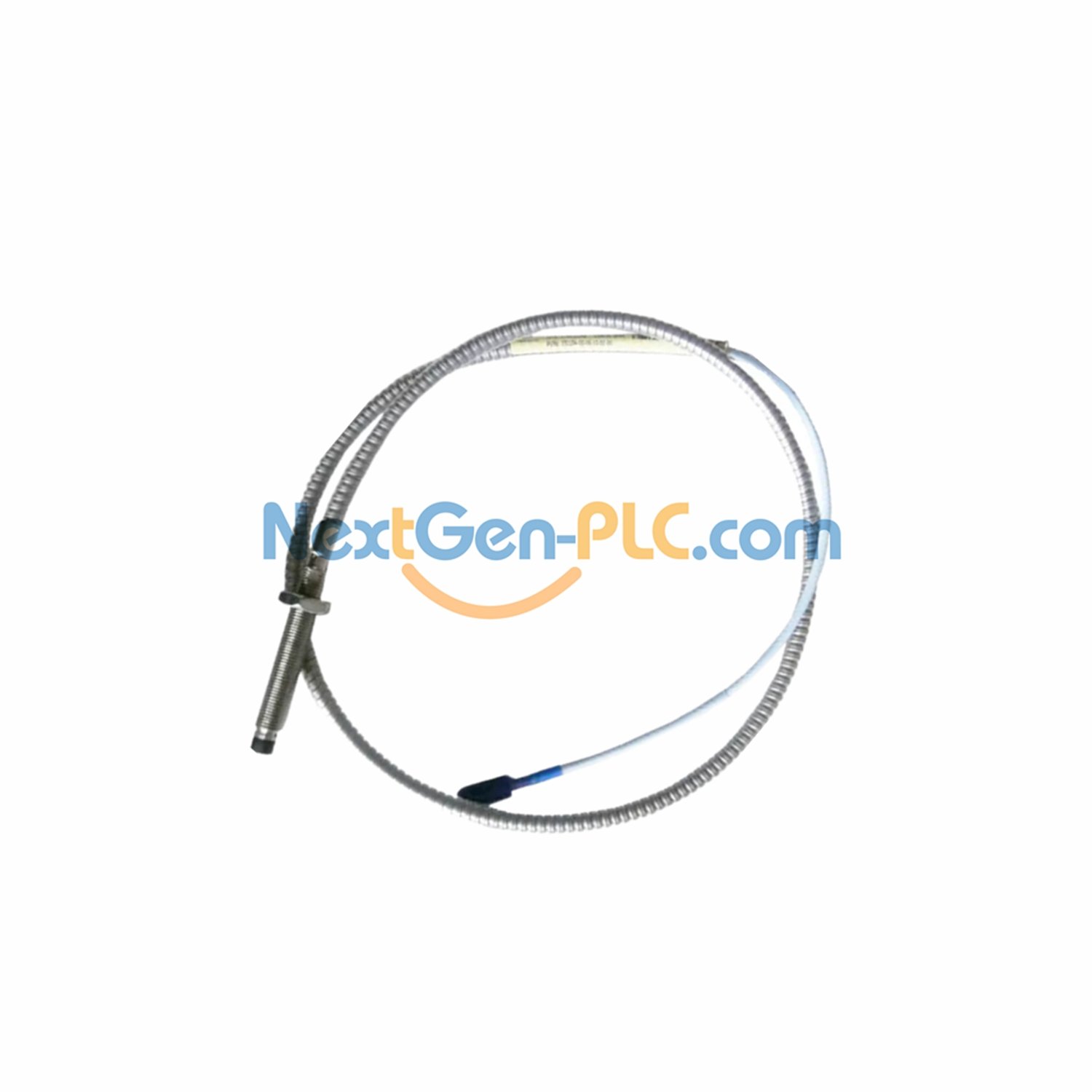

330909-00-60-10-01-CN Bently Nevada 3300 NSv Proximity Probe

330909-00-60-10-01-CN – Bently Nevada 3300 NSv Proximity Probe

Key Technical Specifications

• Brand & Model: Bently Nevada 3300 NSv Proximity Probe (Part 330909-00-60-10-01-CN).
• Linear Range: 1.5 mm (60 mils) from 0.25 mm to 1.75 mm (10 to 70 mils).
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5% / -20% interchangeability error.
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils).
• Frequency Response: 0 to 10 kHz (+0, -3 dB typical) with up to 305 m field wiring.
• Recommended Gap Setting: 1.0 mm (40 mils).
• Operating Temperature: -52°C to +177°C (-62°F to +351°F).
• Storage Temperature: -52°C to +177°C (-62°F to +351°F).
• Probe Tip Material: Polyphenylene sulfide (PPS).
• Probe Case Material: AISI 304 stainless steel (SST).
• Minimum Bend Radius (with armor): 25.4 mm (1.0 in).
• Maximum Torque for Probe Case: 0.56 N•m (5 in•lb) finger tight maximum.
• Connector Type: Miniature coaxial ClickLoc with connector protector.
• Total Length Option: 1.0 meter (39 inches) standard cable.
• Probe DC Resistance (RPROBE): 4.2 ± 0.5 ohms (center to outer conductor).

Environmental & Mechanical Durability

• The 3300 NSv probe provides increased chemical resistance compared to the previous 3300 RAM model. This feature makes it ideal for process compressor applications.
• Side-view characteristics improve when gapping at the same distance from the target.
• Pressure sealing uses a Viton O-ring to seal differential pressure between tip and case.
• Temperature classification includes T1 to T5 for various ambient ranges (EPL Ga/Gc).
• Probe cable uses 75 ohm coaxial FEP insulation, available in lengths 0.5, 1, 5, or 7 meters.
• Minimum target size for flat target: 8.9 mm diameter; recommended minimum: 13 mm diameter.

Extension Cable & Field Wiring Compatibility

• The 3300 NSv probe and extension cable interchange directly with Bently Nevada’s previous 3300 RAM proximity probes.
• Extension cable DC resistance: center conductor 0.220 Ω/m, shield 0.066 Ω/m.
• Extension cable capacitance: 69.9 pF/m (21.3 pF/ft) typical.
• Field wiring: 0.2 to 1.5 mm² (16 to 24 AWG), maximum length 305 meters between Proximitor Sensor and monitor.
• Use three-conductor shielded triad cable for best signal integrity.

Frequently Asked Questions (FAQ)

• Q: Is this 3300 NSv probe brand new and original?
  A: Yes, it is 100% new, original Bently Nevada in factory packing. We never sell used or counterfeit products.
• Q: What is the linear range of the 330909-00-60-10-01-CN?
  A: The linear range spans 1.5 mm (60 mils), starting at 0.25 mm from target up to 1.75 mm.
• Q: Can I use this probe with the previous 3300 RAM extension cables?
  A: Yes, the 3300 NSv probe is mechanically and electrically compatible with 3300 RAM extension cables.
• Q: What is the maximum length of field wiring?
  A: Up to 305 meters (1000 feet) between the Proximitor Sensor and the monitor without signal degradation beyond -3dB at 10kHz.
• Q: What is the typical scale factor?
  A: Incremental Scale Factor is 7.87 V/mm (200 mV/mil) including interchangeability tolerance.
• Q: What shipping carriers do you use?
  A: We use FedEx, UPS, and DHL for fast, trackable worldwide delivery.
• Q: Do you have stock for this model?
  A: Yes, we maintain stock for 330909-00-60-10-01-CN and ship within 5 days.
• Q: Can I return the product?
  A: Absolutely, we support 30-day returns for items in original condition.
• Q: What is the recommended gap setting?
  A: Bently Nevada recommends 1.0 mm (40 mils) for optimal performance.
