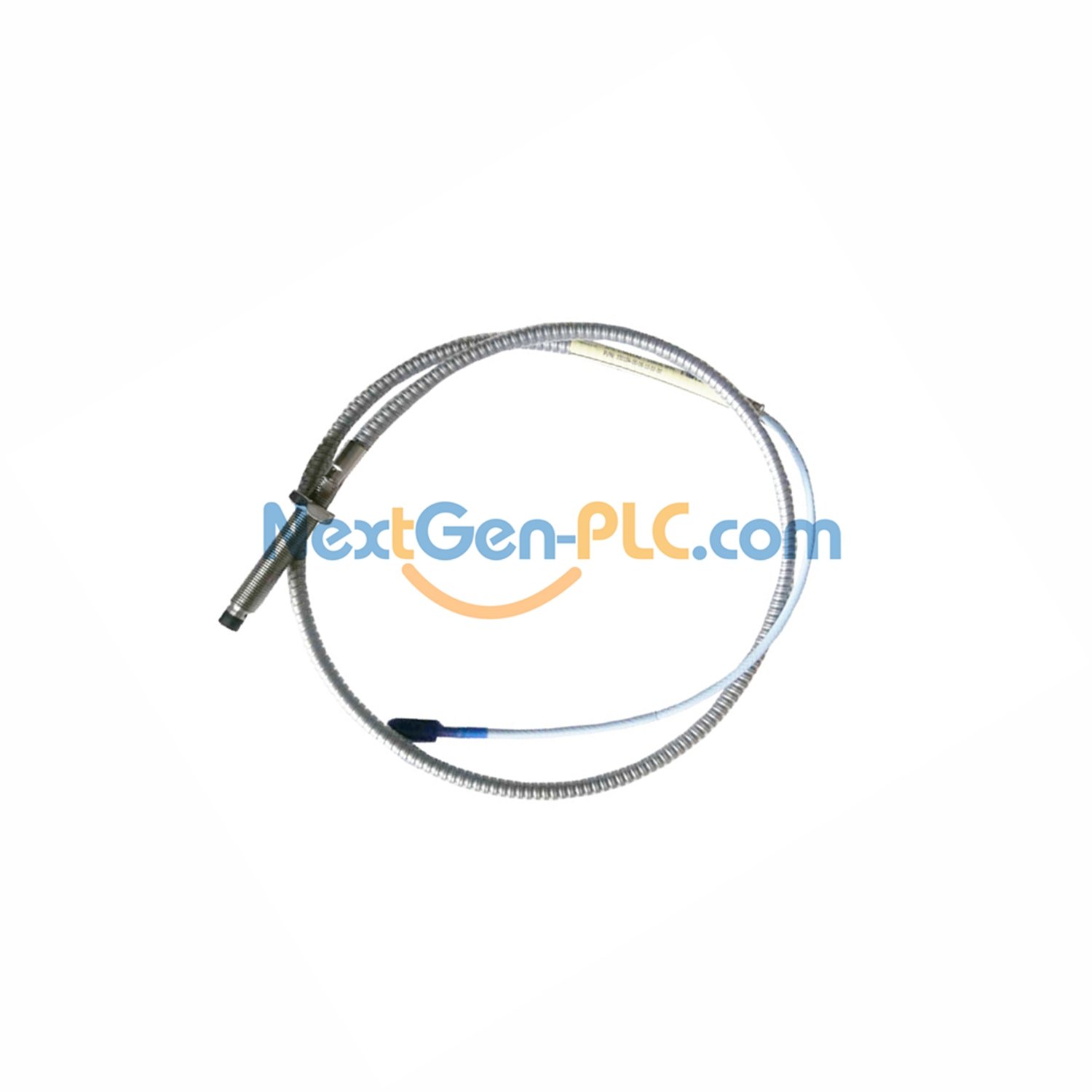

330904-09-17-05-01-05 Bently Nevada 3300 NSv 90mm Unthreaded

3300 NSv Proximity Probe Model 330904-09-17-05-01-05

Key Technical Specifications

• Brand & Model: Bently Nevada 330904-09-17-05-01-05 (3300 NSv Probe).
• Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm (10 to 70 mils).
• Recommended Gap Setting: 1.0 mm (40 mils) for optimal performance.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability error.
• Deviation from Best Fit Straight Line (DSL): Less than ±0.06 mm (±2.3 mils).
• Frequency Response: 0 to 10 kHz with +0, -3 dB typical (up to 305 m field wiring).
• Probe DC Resistance: 4.0 ± 0.5 ohms (center to outer conductor) for 0.5 meter length.
• Operating Temperature: -52°C to +177°C (-62°F to +351°F).
• Storage Temperature: Same range: -52°C to +177°C (-62°F to +351°F).
• Probe Tip Material: Polyphenylene sulfide (PPS) for harsh environments.
• Probe Case Material: AISI 304 stainless steel (SST).
• Minimum Target Diameter: 8.9 mm (0.35 in) flat target; recommended 13 mm (0.5 in).

Mechanical Dimensions & Thread Options

• Unthreaded Length: 90 mm for this model 330904-09-17-05-01-05.
• Overall Case Length: 170 mm.
• Total Probe Length: 0.5 meter (20 inches).
• Connector Type: Miniature coaxial ClickLoc connector with connector protector and standard cable.
• Agency Approval: Option -05 = Multiple Approvals.
• Probe Case Thread: M8x1 with maximum 12 mm thread engagement.

Environmental & Mechanical Tolerances

• Chemical Resistance: Increased compared to 3300 RAM probe, suitable for compressors.
• Pressure Rating: Seals differential pressure with a Viton O-ring (not pressure tested).
• Maximum Torque on Probe Case: 0.56 N•m (5 in•lb) finger tight; connector-to-connector max 7.3 N•m.
• Minimum Bend Radius: 25.4 mm (1.0 in) with or without stainless steel armor.
• Recommended Torque for Connector Joint: 5.1 N•m (45 in•lb).
• Temperature Schedule (EPL Ga/Gc): T1 (-55°C to +232°C) down to T5 (-55°C to +40°C).

Frequently Asked Questions (FAQ)

• Q: Is the 330904-09-17-05-01-05 probe new and original?
  A: Yes, we supply only brand new, original factory packed units with full traceability.
• Q: What is the linear range of the 3300 NSv probe?
  A: The linear range is 1.5 mm (60 mils) from 0.25 mm to 1.75 mm from target.
• Q: Can I use this probe with previous Bently Nevada extension cables?
  A: Yes, the NSv probe is mechanically and electrically compatible with 3300 RAM cables.
• Q: What is the maximum field wiring length to the monitor?
  A: You can use up to 305 meters (1000 feet) of field wiring between sensor and monitor.
• Q: Do you have this item in stock?
  A: Yes, we maintain stock of the 330904-09-17-05-01-05 for immediate dispatch.
• Q: How long does delivery take?
  A: We process orders within 5 days, then shipping takes 3-7 days via DHL/FedEx/UPS.
• Q: What is the recommended torque for the probe case?
  A: Apply finger tight torque only; maximum allowed is 0.56 N•m (5 in•lb).
• Q: What are the unthreaded and case lengths for this model?
  A: The unthreaded length is 90 mm, and the overall case length is 170 mm.
