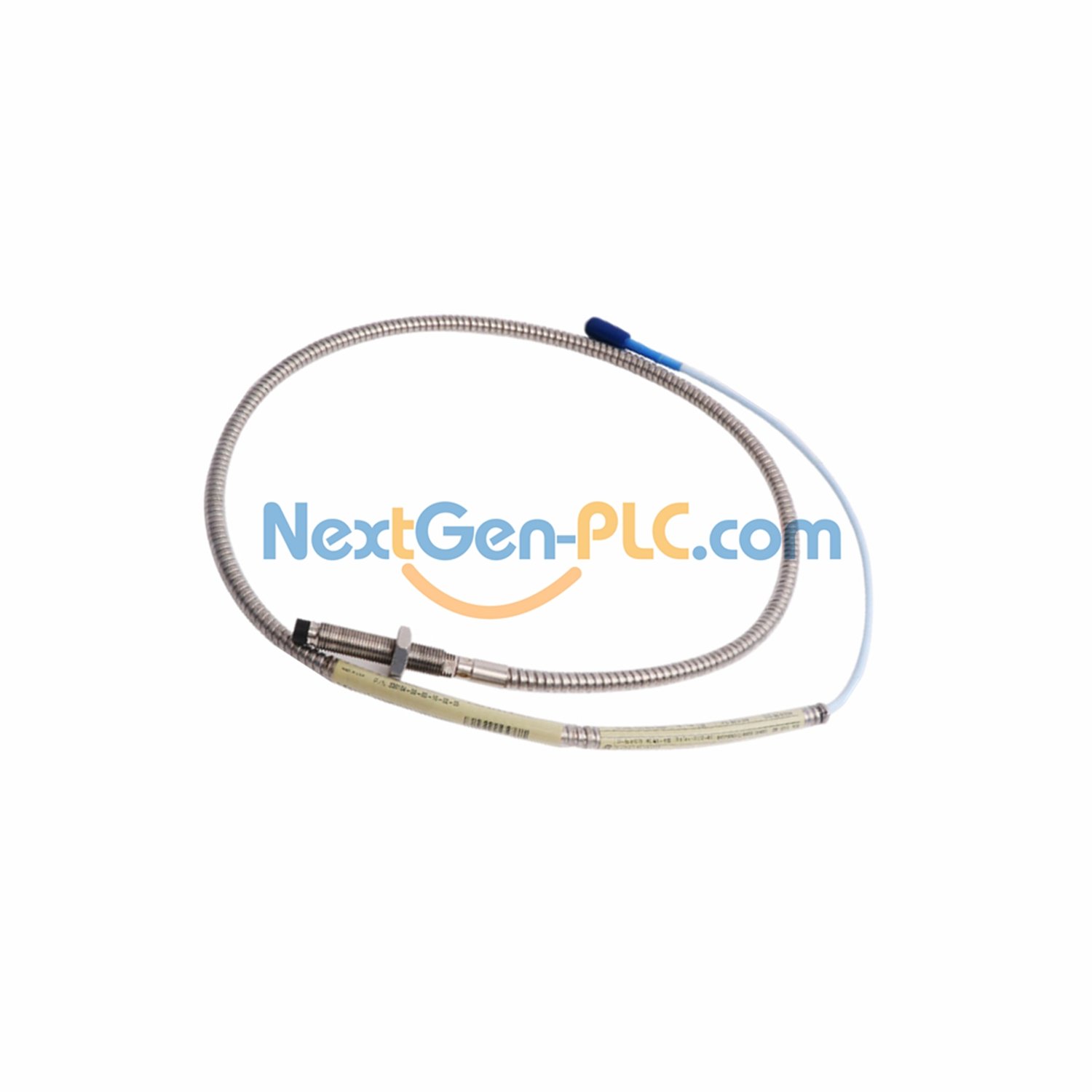

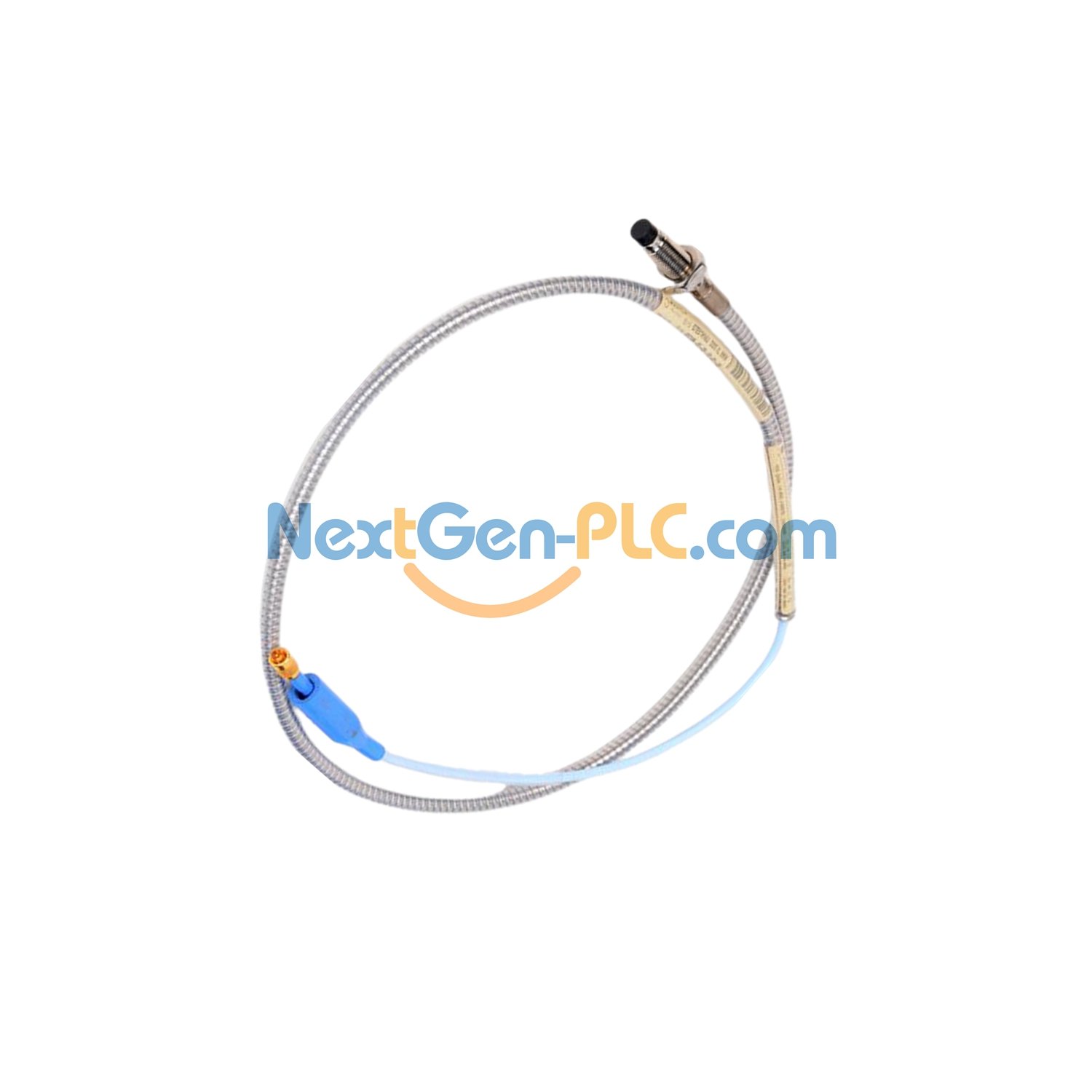

The 330904-05-14-05-02-00 is a 3300 NSv Proximity Probe from Bently Nevada. It comes new and in factory packing. This probe resists chemicals well. It works great in process compressors. The probe fits with older 3300 RAM parts. Its side view is also better than the 190 probe at the same gap.

• Linear range: 1.5 mm (60 mils). It starts at 0.25 mm (10 mils). It ends at 1.75 mm (70 mils). Output is -1 to -13 Vdc.
• Best gap setting: 1.0 mm (40 mils).
• Scale factor (ISF): 7.87 V/mm (200 mV/mil). Error is +12.5% / -20%.
• Linearity error (DSL): less than ±0.06 mm (±2.3 mils).
• Frequency response: 0 to 10 kHz, +0/-3 dB. Works with up to 305 m (1000 ft) of field wire.
• Probe DC resistance: 4.0 ± 0.5 ohms for 0.5 meter length.
• Extension cable resistance: center 0.220 Ω/m, shield 0.066 Ω/m.
• Extension cable capacitance: 69.9 pF/m (21.3 pF/ft).
• Flat target size: minimum 8.9 mm (0.35 in). Best is 13 mm (0.5 in) or more.
• Probe tip: PPS plastic. Probe case: AISI 304 stainless steel.
• Cable type: 75 Ω coaxial with FEP insulation. Total length is 0.5 meter (20 inches).
• Connector: Miniature coaxial ClickLoc connector, standard cable (option 02).
• Agency approval: -00 not required.
• Temperature range: -52°C to +177°C (-62°F to +351°F). Same for storage.
• Pressure seal: Viton O-ring. Bently Nevada does not test each unit before shipping.
• Max thread depth: 15 mm for M10x1 case.
• Torque: finger tight. Max is 0.56 N·m (5 in·lb). For M10x1 connectors, use 11.3 N·m (100 in·lb).
• Min bend radius: 25.4 mm (1.0 in) with or without armor.

FAQ

• Is this probe brand new? Yes. We sell only new and original Bently Nevada 3300 NSv probes in factory packing.
• How fast do you ship? We ship within 5 days. We use FedEx, UPS, or DHL for fast delivery.
• Do you have this part in stock? Yes. We have 330904-05-14-05-02-00 in stock now.
• Can I return it? Yes. You have 30 days to return the product. It must be unused and in original packing.
• Does it work with 3300 RAM cables? Yes. The 3300 NSv probe works with old 3300 RAM probes and cables. They swap directly.
• What target size do I need? Use a flat target of at least 8.9 mm wide. For best results, use 13 mm or larger.
• How long can my field wire be? You can run up to 305 meters (1000 feet) of triad cable to the monitor.
• Do you test the pressure seal before shipping? No. Bently Nevada does not test each probe. The Viton O-ring makes the seal. Contact us if you need a test.
