330904-00-14-05-02-00 3300 NSv Proximity Probe Bently Nevada

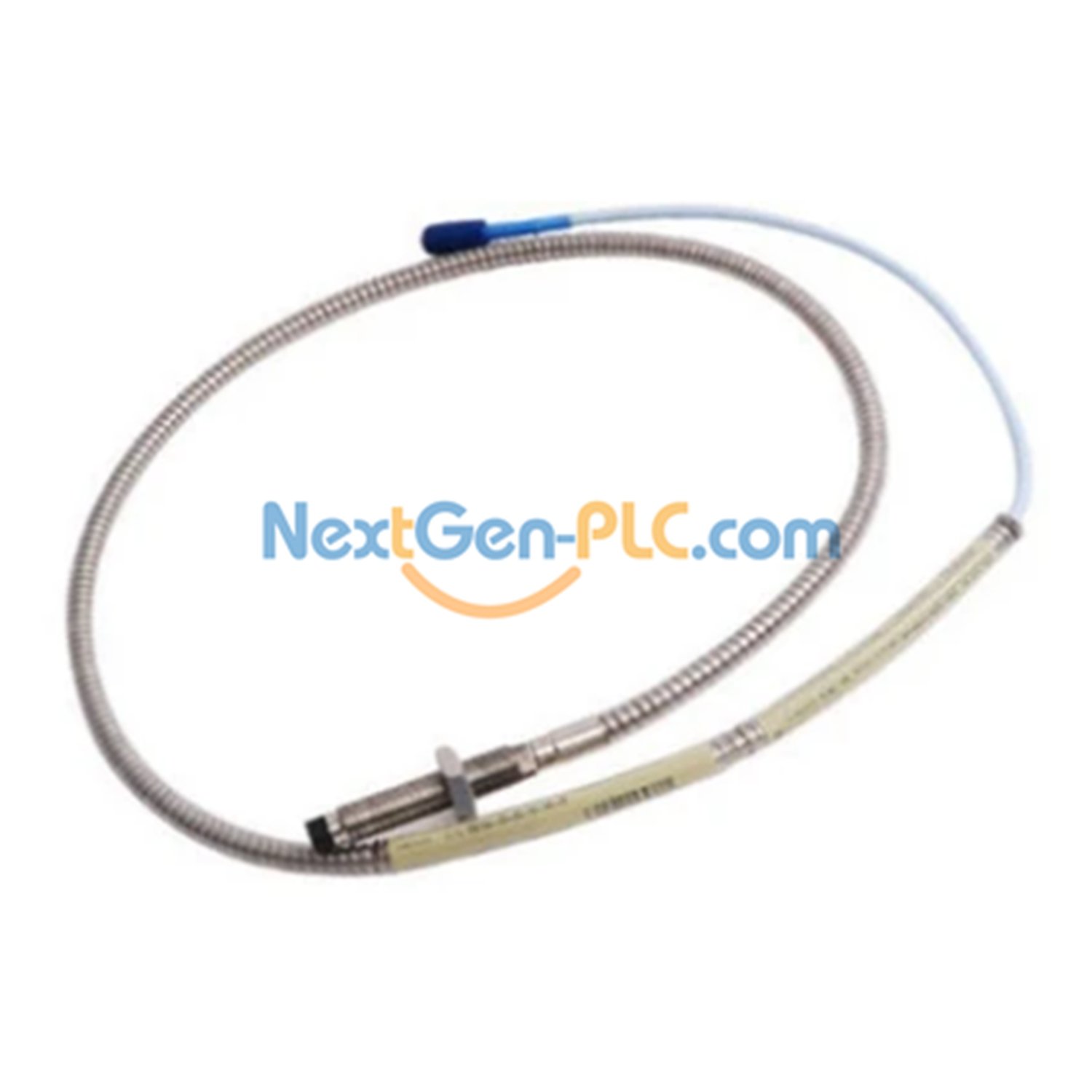

Bently Nevada 3300 NSv Proximity Probe – Model 330904-00-14-05-02-00

The 330904-00-14-05-02-00 belongs to the 3300 NSv Proximity Probes series from Bently Nevada. This new original probe comes in factory packing with full traceability. It delivers reliable non-contact vibration and position measurements for industrial machinery. The probe features a robust M8x1 threaded case with armor for demanding environments.

• Brand & Model: Bently Nevada 3300 NSv Proximity Probe – full part number 330904-00-14-05-02-00.
• Unthreaded Length Option: -00- equals 00 mm – no extra unthreaded section.
• Overall Case Length Option: -14 means 140 mm case length for proper mounting depth.
• Total Probe Length: 05 indicates 0.5 meter (20 inches) standard cable.
• Connector Type: 02 = Miniature coaxial ClickLoc connector with standard coaxial cable.
• Agency Approval: -00 = not required for this configuration.

Key Technical Specifications

• Probe DC Resistance: 4.0 ± 0.5 ohms from center to outer conductor at 0.5m length.
• Linear Range: 1.5 mm (60 mils) starting from ~0.25 mm (10 mils) up to 1.75 mm (70 mils).
• Output Voltage Range: approximately -1 to -13 Vdc over the linear range.
• Recommended Gap Setting: 1.0 mm (40 mils) for optimal performance.
• Incremental Scale Factor (ISF): 7.87 V/mm (200 mV/mil) with +12.5%/-20% interchangeability error.
• Deviation from Best Fit Straight Line (DSL): less than ±0.06 mm (±2.3 mils).
• Frequency Response: 0 to 10 kHz typical with +0, -3 dB using up to 305 m (1000 ft) field wiring.
• Target Size: minimum 8.9 mm diameter; recommended minimum 13 mm diameter for flat targets.

Environmental & Mechanical Ratings

• Probe Tip Material: Polyphenylene sulfide (PPS) – provides excellent chemical resistance.
• Probe Case Material: AISI 304 stainless steel (SST) for corrosion resistance.
• Probe Cable: 75 Ohm coaxial with FEP insulation; total lengths available: 0.5, 1, 5, or 7 meters.
• Operating Temperature: -52°C to +177°C (-62°F to +351°F).
• Storage Temperature: identical range -52°C to +177°C.
• Maximum Torque on Probe Case: 0.56 N•m (5 in•lb) – finger tight recommended.
• Minimum Bend Radius: 25.4 mm (1.0 in) even with stainless steel armor.
• Connector-to-Connector Torque: maximum rated 7.3 N•m (65 in•lb), recommended 5.1 N•m (45 in•lb).
• Maximum Thread Engagement Length: 12 mm for M8x1 thread.

Frequently Asked Questions (FAQ)

• Q: Is this 330904-00-14-05-02-00 a genuine new original Bently Nevada probe?
  A: Yes, it is brand new and original in factory packing. We never sell used or counterfeit parts.
• Q: Do you have this 3300 NSv probe in stock?
  A: Yes, we have 330904-00-14-05-02-00 in stock and ready to ship immediately.
• Q: What is your typical shipping time and carriers?
  A: We process orders within 5 days. We use FedEx, UPS, and DHL for fast worldwide delivery.
• Q: Can I return the probe if it doesn’t fit my application?
  A: We support a 30-day return policy for unused items in original packaging.
• Q: What is the maximum field wiring length for this probe system?
  A: You can use up to 305 meters (1000 feet) of field wiring between the Proximitor Sensor and monitor.
• Q: Does the probe work with previous 3300 RAM extension cables?
  A: Yes, the 3300 NSv probe is mechanically and electrically compatible with 3300 RAM extension cables.
• Q: What is the recommended target material and size?
  A: Use a flat ferromagnetic target at least 13 mm diameter; minimum acceptable is 8.9 mm diameter.
