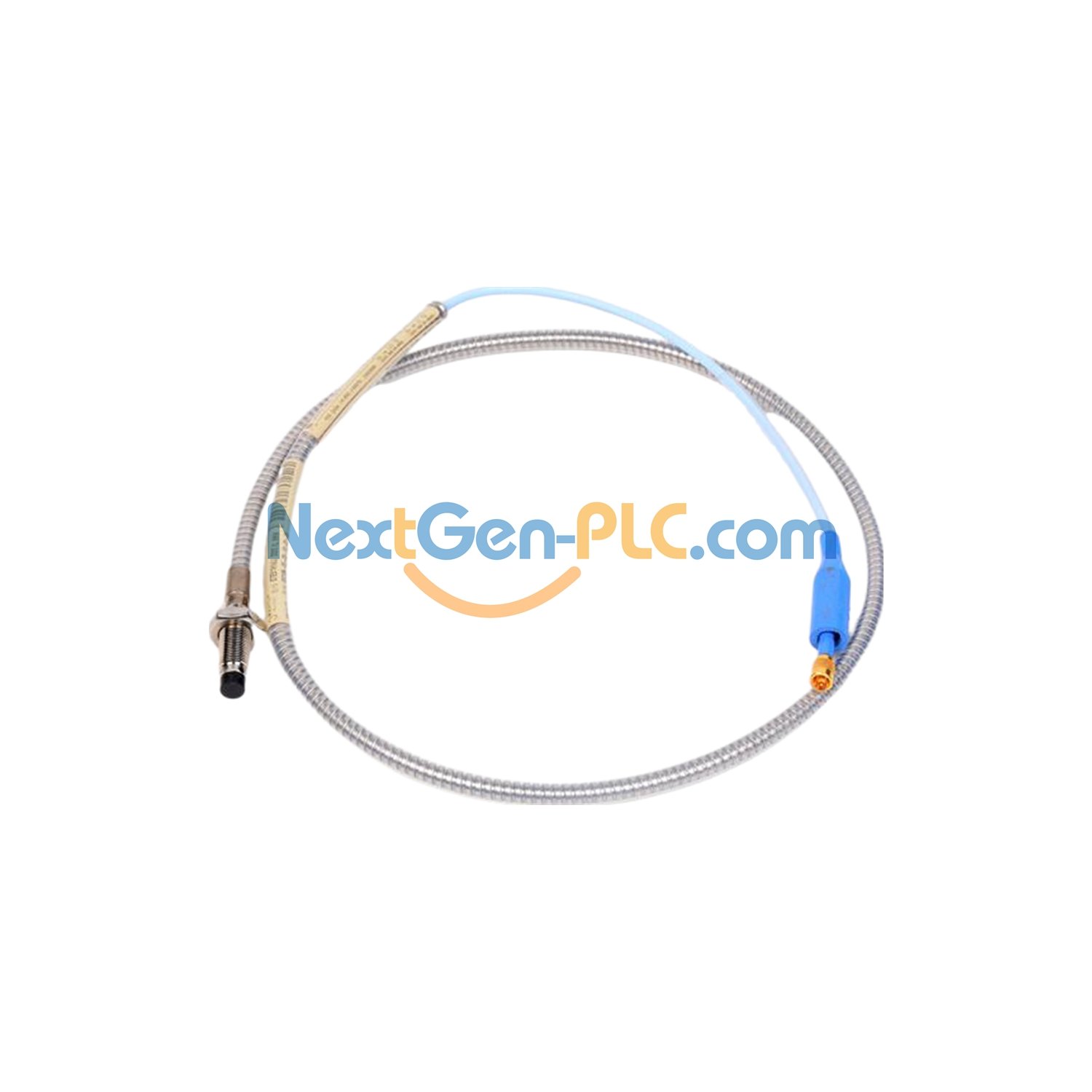

Bently Nevada 3300 XL 11 mm Proximity Probe (330708-00-24-50-11-00)

Product Description

The 3300 XL 11 mm Proximity Probe (Model 330708-00-24-50-11-00) is a tough industrial sensor made by Bently Nevada in the U.S.A. It has a 5/8-18 UNF threaded case, 5.0m FEP-insulated cable, and protected Miniature ClickLoc connector. The probe works well in extreme temperatures (-51°C to +177°C) with its PPS tip and 304 stainless steel case.

Model Suffix Details

330708-00-24-50-11-00 breaks down as:

330708: Base model – 3300 XL 11mm probe, 5/8-18 UNF thread, no armor
00: Unthreaded length: 0 inches
24: Case length: 2.4 inches
50: Cable length: 5.0 meters (16.4 feet)
11: Connector: Miniature ClickLoc with protector & FluidLoc cable
00: Approvals: Not required

Key Specs

Brand: Bently Nevada
Model: 330708-00-24-50-11-00
Type: 3300 XL 11mm Proximity Probe
Tip Material: Polyphenylene sulfide (PPS)
Case Material: AISI 304 stainless steel
Cable: 75Ω triaxial FEP-insulated (5m)
Temp Range: -51°C to +177°C (-60°F to +351°F)
Resistance: 7.2±0.8 ohms
Weight: 0.17 Kg
Use With: 5-meter Proximitor Sensors only

Installation Guide

Thread: 5/8-18 UNF
Max Thread Engagement: 0.938 inches
Recommended Torque: 15.2 N•m (133 in•lb)
Connector Torque: Finger tight (max 0.565 N•m/5 in•lb)
Bend Radius: 25.4mm (1.0 inch)

Certifications

Approval Code 00: No agency approvals needed

What’s Included

1 x 3300 XL 11mm Proximity Probe (330708-00-24-50-11-00)
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
