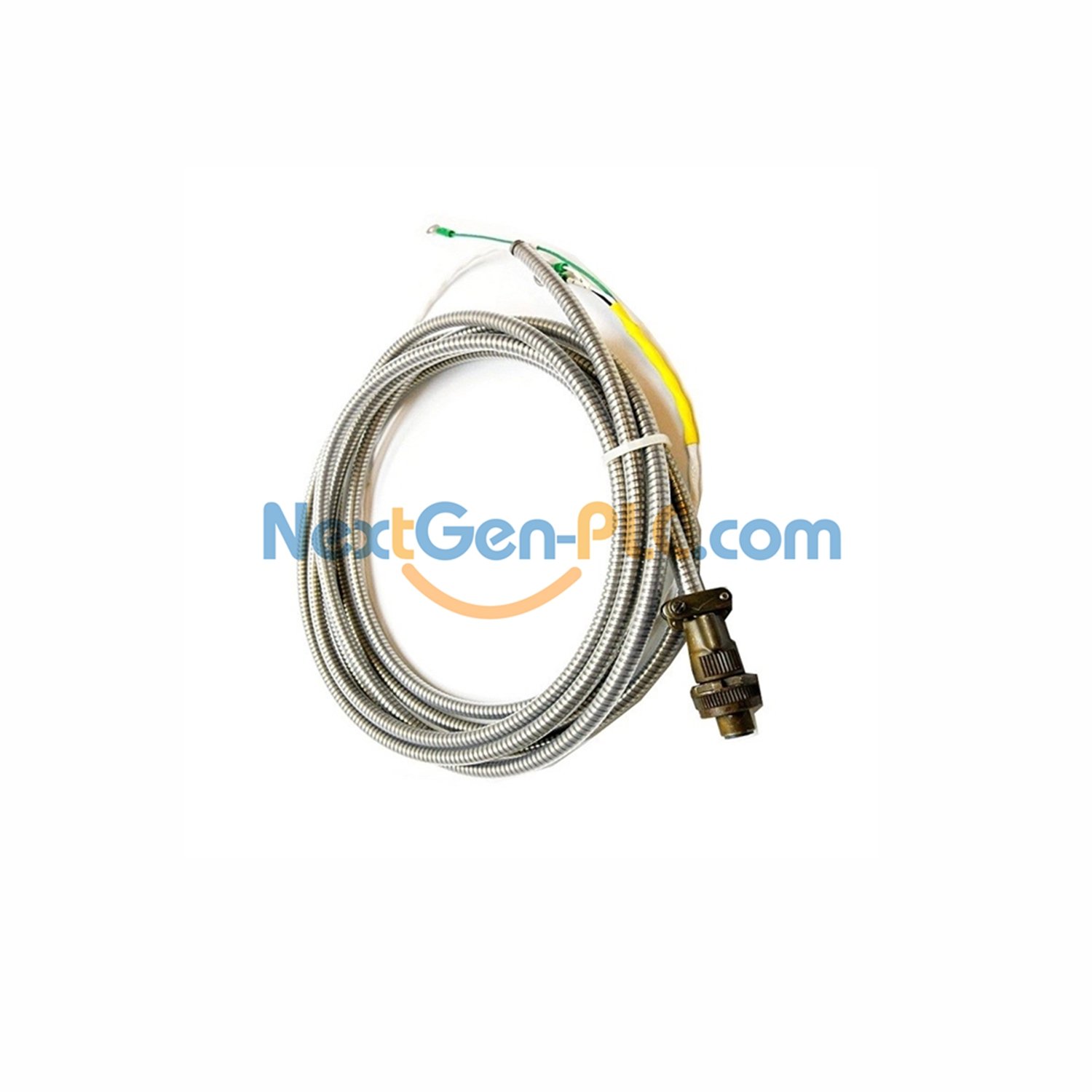

Bently Nevada 3300 XL 11mm Proximity Probe
Model: 330708-00-10-90-12-05
MODEL NUMBER EXPLAINED:
- 330708 – Base Model
- 3300 XL 11mm Probe
- 5/8-18 UNF Thread
- No Armor
- 00 – Unthreaded Length (0 in)
- 10 – Case Length (1.0 in)
- 90 – Cable Length (9.0m/29.5ft)
- 12 – Connector Type
- Miniature ClickLoc
- FluidLoc Cable
- 05 – Approvals (Multiple)
KEY FEATURES:
- ✅ 9m FluidLoc Cable – Oil/Chemical Resistant
- ✅ ClickLoc Connector – Secure Connection
- ✅ Stainless Steel Body – Extremely Durable
- ✅ Wide Temp Range (-51°C to +177°C)
- ✅ Multiple Safety Approvals
TECHNICAL SPECIFICATIONS:
| Category | Details |
|---|---|
| Probe Size | 11mm Diameter |
| Thread Type | 5/8-18 UNF |
| Materials | PPS Tip / 304 SST Body |
| Cable Type | 75Ω Triaxial FEP |
| Temperature Range | -51°C to +177°C |
| Weight | 0.17kg |
INSTALLATION GUIDE:
- 🔧 Max Thread Engagement: 0.938 in
- 🔧 Recommended Torque: 15.2 N•m
- 🔧 Min Bend Radius: 25.4mm
- 🔧 Connector: Finger Tight
BEST FOR:
🛢️ Oil & Gas
⚡ Power Plants
🏭 Heavy Industry
🏗️ Large Machinery
WHAT’S INCLUDED:
- 📦 1x 11mm Probe
- 📦 9m FluidLoc Cable
- 📦 ClickLoc Connector
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
