Bently Nevada 3300 XL 11 mm Proximity Probe (330707-00-10-10-12-00)

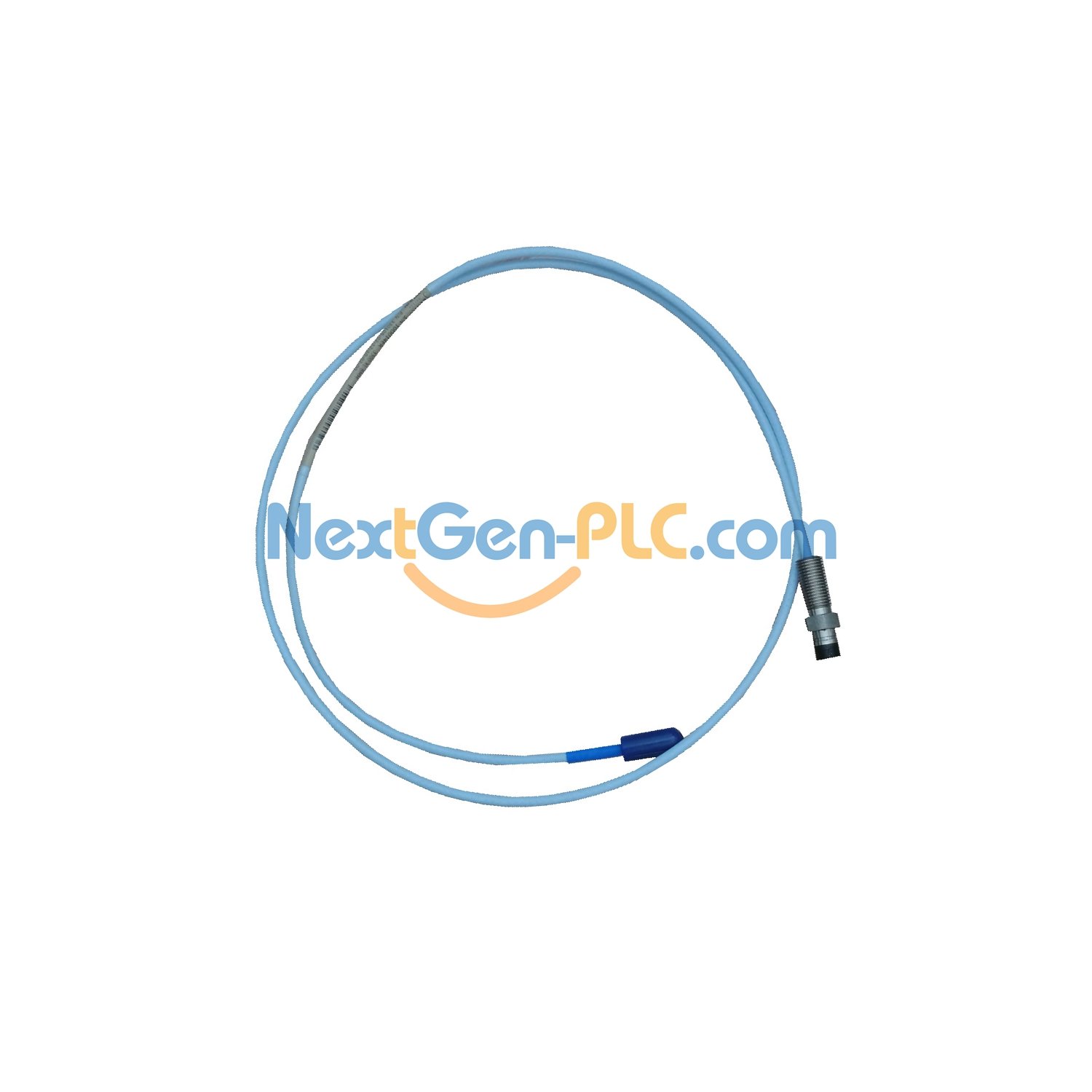

Bently Nevada’s high-quality proximity probe works for accurate industrial monitoring. It has a strong PPS tip and AISI 304 stainless steel case. It works well in tough environments. The 1-meter FEP-insulated triaxial cable has a Miniature coaxial ClickLoc connector for steady signal transfer.

Model Suffix Explanation

330707: 3300 XL 11 mm Probe, 5/8-18 UNF thread, no armor
00: Unthreaded Length: 0 in
10: Overall Case Length: 1.0 in
10: Total Length: 1.0 metre (3.3 feet)
12: Connector: Miniature coaxial ClickLoc, Cable: FluidLoc
00: Agency Approval: Not required

Technical Specifications

Brand: Bently Nevada
Model: 330707-00-10-10-12-00
Type: 3300 XL 11 mm Proximity Probes
Made In: U.S.A
Tip Material: Polyphenylene sulfide (PPS)
Case Material: AISI 304 stainless steel (SST)
Cable: 75 Ω triaxial, FEP insulated
Operating Temp: -51°C to +177°C (-60°F to +351°F)
Storage Temp: -52°C to +177°C (-62°F to +351°F)
Resistance: 5.9 ± 0.5 ohms (1.0m length)
Shipping Weight: 0.17 Kg

Installation Guide

Case Thread: 5/8-18 UNF
Max Thread Engagement: 0.938 in
Recommended Torque: 15.2 N•m (133 in•lb)
Max Torque: 45.2 N•m (400 in•lb)
Connector Torque: Finger tight (Max: 0.565 N•m/5 in•lb)
Min Bend Radius: 25.4 mm (1.0 in)

Agency Approvals

Not required (Option 00)

Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
