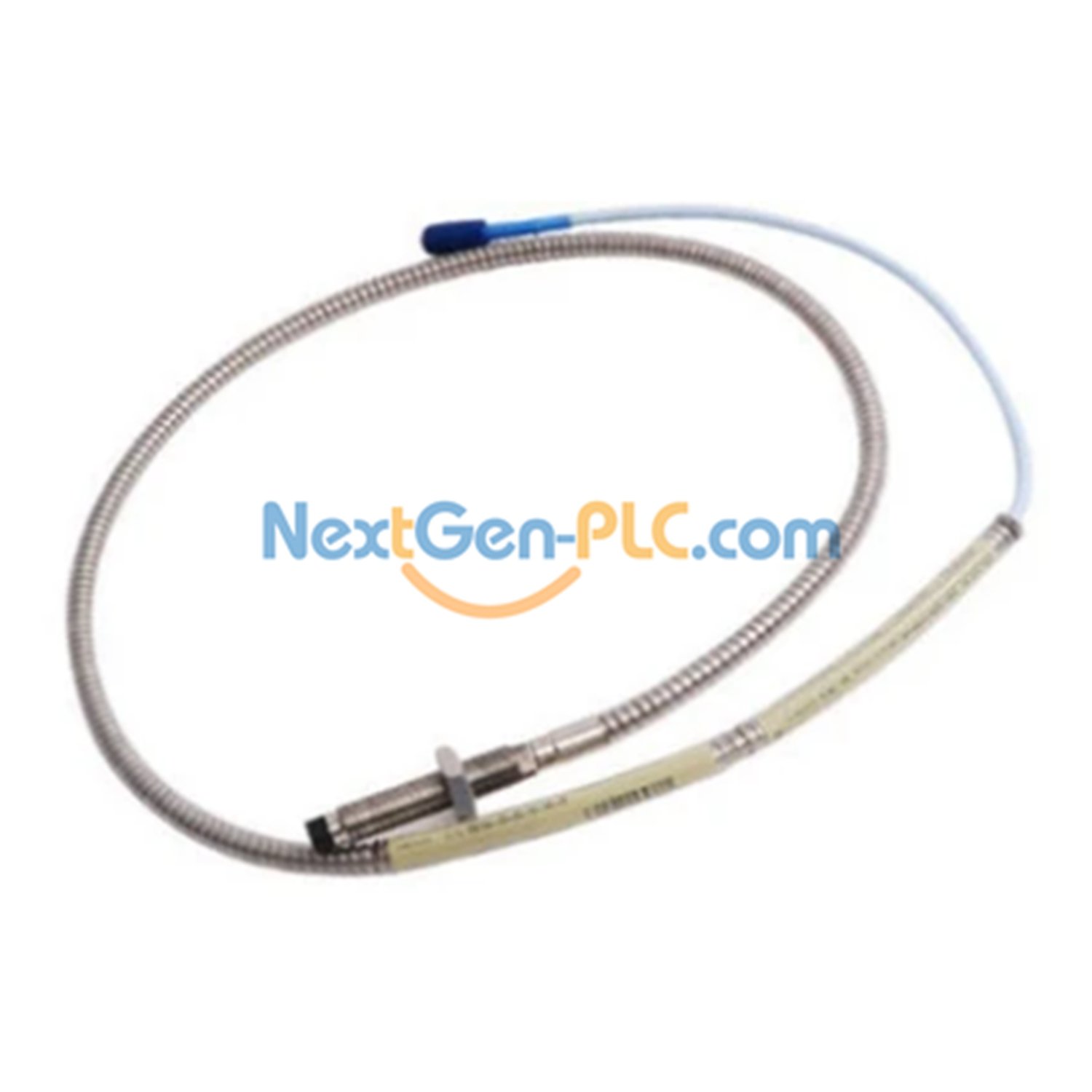

Bently Nevada 330702-00-24-90-11-00
9m Industrial Proximity Probe System
11mm sensing range
9 meter extended cable
-51°C to +177°C operation
Armored stainless steel
PRODUCT DETAILS
- Model: 3300 XL 11mm Probe
- Thread: 1/2-20 UNF with armor
- Cable: 9m FluidLoc with ClickLoc connector
- Material: 304 stainless steel case
- Tip: PPS polymer
TECHNICAL SPECIFICATIONS
Resistance
8.5 ± 1.1 Ω
8.5 ± 1.1 Ω
Max Torque
15.2 N•m
15.2 N•m
Bend Radius
25.4mm min
25.4mm min
Weight
0.17kg
0.17kg
INSTALLATION NOTES
- For use with 9m Proximitor only
- Hand-tighten connectors (0.565 N•m max)
- Maintain minimum bend radius
- Avoid temperatures below -34°C during installation
MODEL BREAKDOWN
| 330702 | Base model |
| 00 | 0″ unthreaded |
| 24 | 2.4″ case |
| 90 | 9m cable |
| 11 | ClickLoc connector |
| 00 | No approvals |
Download PDF file here:3300 XL 11 mm Proximity Transducer System Datasheet
