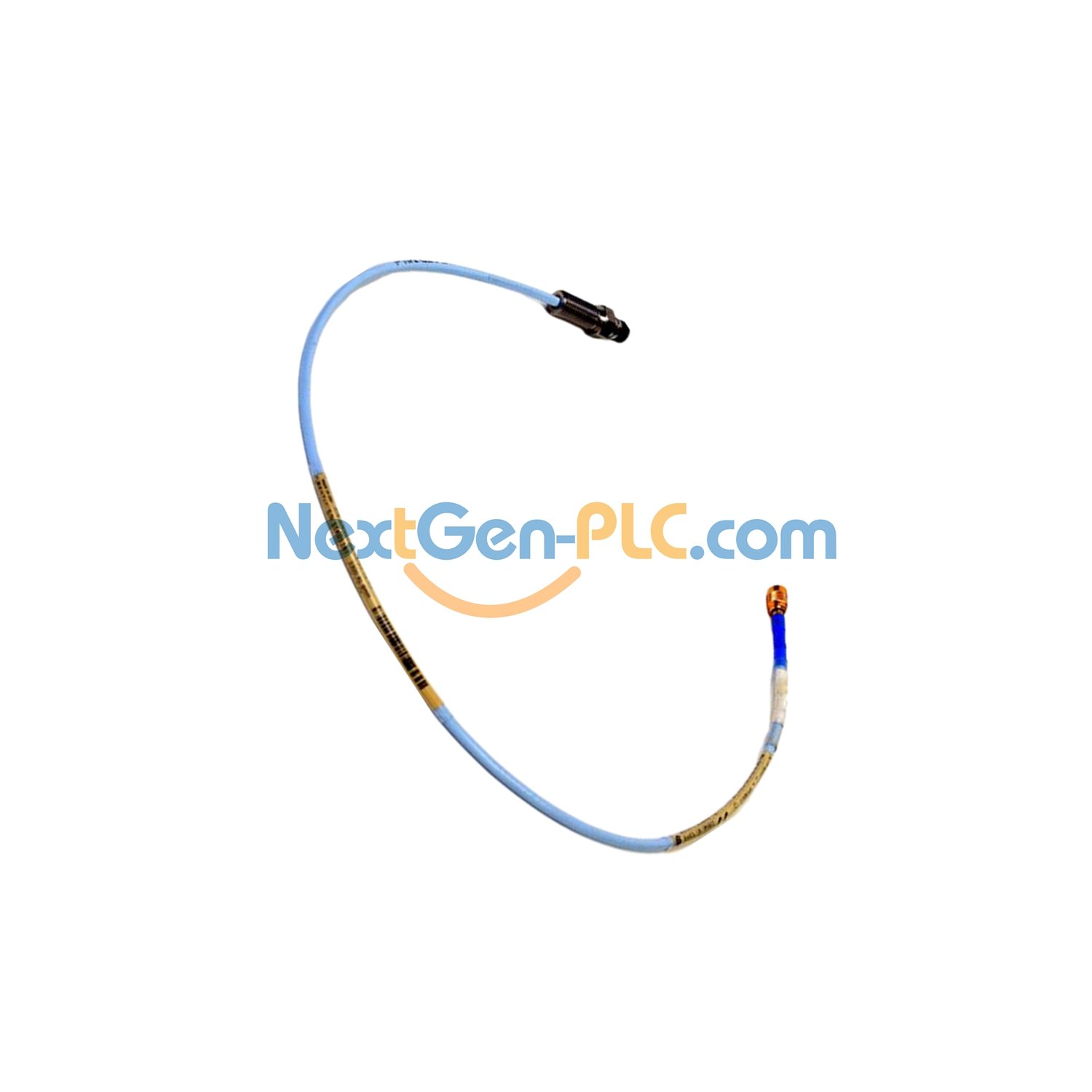

330173-00-05-10-02-00 Bently Nevada | 3300 5mm Proximity Probe

Bently Nevada 3300 Series Precision Vibration Probe

Industrial-grade 5mm proximity sensor with M8 threading for critical machinery health monitoring. Made in USA with rugged stainless steel construction.

Product Identification

Brand: Bently Nevada
Full Model: 330173-00-05-10-02-00
Configuration: 50mm case · 1.0m cable · ClickLoc connector

Performance Specifications

Measurement Range: 1.27mm (50 mils) optimal gap
Accuracy: ±0.5% full scale at 24VDC
Output Signal: -17.5 to -26VDC (12mA max)
Temp Range: -35°C to +177°C (-31°F to +351°F)

Technical Features

• Construction: AISI 304 SST body with PPS tip
• Electrical: 50Ω output · 7.59±0.50Ω probe resistance
• Mechanical: 222N tensile strength · 5.1N·m install torque
• Cable: 1.0m FEP-insulated triaxial (75Ω)
• Bend Radius: Minimum 25.4mm

Installation Guide

1. Mount with M8×1 thread at target location
2. Set 1.27mm gap to rotating component
3. Apply 5.1N·m torque to housing
4. Maintain >25.4mm cable bend radius
5. Connect to monitoring system

Compatibility

Works with Bently Nevada 3300/3500 systems. Ideal for:
– Steam turbines · Gas compressors · Generator sets
– Centrifugal pumps · Motor drives

Certifications & Origin

No agency approvals required. U.S. manufactured (COO available).

Package Contents

• Probe assembly (50mm length)
• 1.0 meter triaxial cable
• ClickLoc™ connector
• Installation guide

Warranty Terms

12-month material/workmanship warranty from date of purchase.

Industry Applications

Power Generation: Turbine shaft monitoring at 3600 RPM
Oil Refining: Compressor vibration detection
Water Treatment: Pump bearing wear analysis with 0.05mm resolution

Download PDF file here:3300 5 mm Transducer System Datasheet – 172036
