330171-10-24-05-02-00 | 5mm Proximity Probe – Bently Nevada

Bently Nevada 5mm Vibration Sensor: Industrial Precision Monitoring

Professional-grade proximity probe engineered for accurate machinery vibration detection in demanding environments. This 3300 series sensor features stainless steel construction and advanced materials for reliable operation from -35°C to +177°C.

Core Specifications

• Brand & Model: Bently Nevada 330171-10-24-05-02-00
• Thread Type: 1/4-28 UNF
• Unthreaded Length: 1.0 inch
• Case Length: 2.4 inches
• Cable Length: 0.5 meter

Performance Details

• Operating Voltage: -17.5 to -26 VDC
• Power Consumption: 12mA max
• Output Resistance: 50 Ω
• Probe Resistance: 7.45Ω ±0.50
• Temperature Tolerance: -35°C to +177°C

Physical Construction

• Probe Tip: Polyphenylene sulfide (PPS)
• Case Material: AISI 304 stainless steel
• Connector: Miniature coaxial ClickLoc
• Weight: 0.323 Kg
• Bend Radius: 25.4mm minimum

Installation Requirements

1. Mounting Thread: 1/4-28 UNF
2. Thread Engagement: Max 0.375 inch
3. Recommended Torque: 5.1 N·m
4. Maximum Torque: 7.3 N·m
5. Drill Requirement: #3 tap or larger

Compatibility Information

Designed for integration with Bently Nevada 3300 monitoring systems. Optimal performance with AISI 4140 steel targets at 1.27mm gap. Uses 75Ω triaxial FEP-insulated cable.

Certifications & Origin

Manufactured in U.S.A. Agency Approval: Not Required (00). Certificate of Origin available upon request.

Package Contents

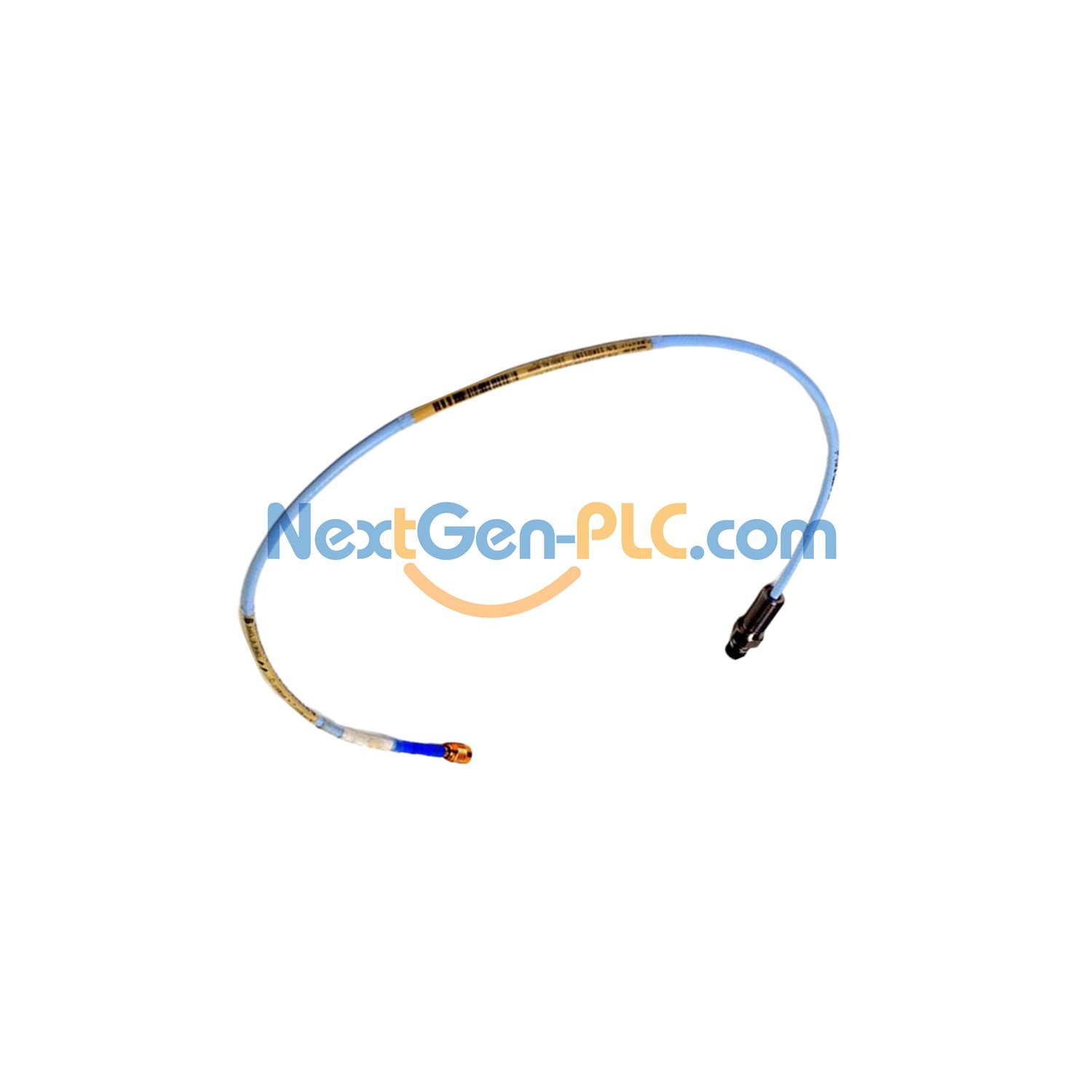

• 5mm vibration probe with 0.5m cable
• ClickLoc connector assembly
• Installation specifications sheet

Warranty Coverage

1-year comprehensive manufacturer warranty against defects.

Industrial Applications

• Turbine vibration monitoring at power generation facilities
• Compressor shaft measurement in oil and gas operations
• Pump bearing analysis in water treatment plants

Download PDF file here:3300 5 mm Transducer System Datasheet – 172036
