330171-00-20-90-02-00 | Bently Nevada New 5mm Proximity Probe

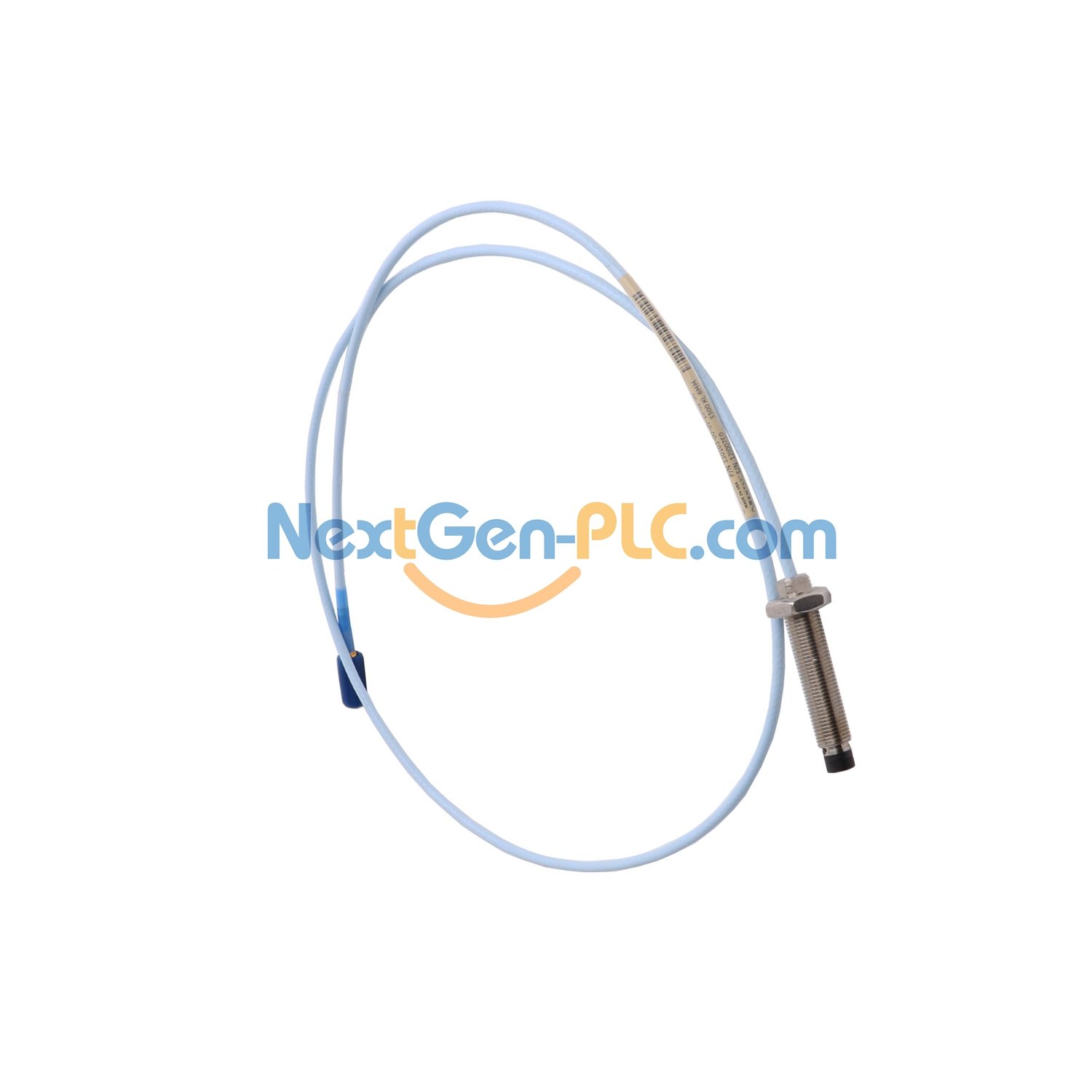

Bently Nevada 5mm Vibration Probe: Precision Monitoring Solution

Product Description

This industrial-grade vibration probe features a 5mm sensing tip with PPS material for durability. Designed with 1/4-28 UNF threading and 9-meter cable length (29.5 feet), it delivers precise measurements in demanding environments. Made in USA with stainless steel casing.

Key Specifications

Brand: Bently Nevada

Model: 330171-00-20-90-02-00

Sensing Tip: 5mm Polyphenylene sulfide (PPS)

Case Material: AISI 304 Stainless Steel

Range: 1.27mm target gap

Accuracy: <2mV/V supply sensitivity

Output Signal: -17.5 to -26 VDC

Temp Range: -35°C to +177°C (-31°F to +351°F)

Cable Resistance: 9.87Ω ±0.90

Installation Guide

• Use #3 or larger tap drill for mounting holes
• Apply 5.1 N·m torque (45in·lb) to case
• Maintain minimum bend radius: 25.4mm (1.0in)
• Maximum thread engagement: 0.375 inch

Compatibility

Works with 3300 monitoring systems. Features Miniature coaxial ClickLoc connector (standard cable). Suitable for AISI 4140 steel targets.

Certifications

• Certificate of Origin (COO) available
• Agency approvals: Not required

What’s Included

• Probe with 9m cable
• ClickLoc connector
• Product documentation
• 1-year manufacturer warranty

Industrial Applications

• Turbine vibration monitoring
• Pump and compressor diagnostics
• Bearing health analysis
• Rotating machinery protection

Download PDF file here:3300 5 mm Transducer System Datasheet – 172036
