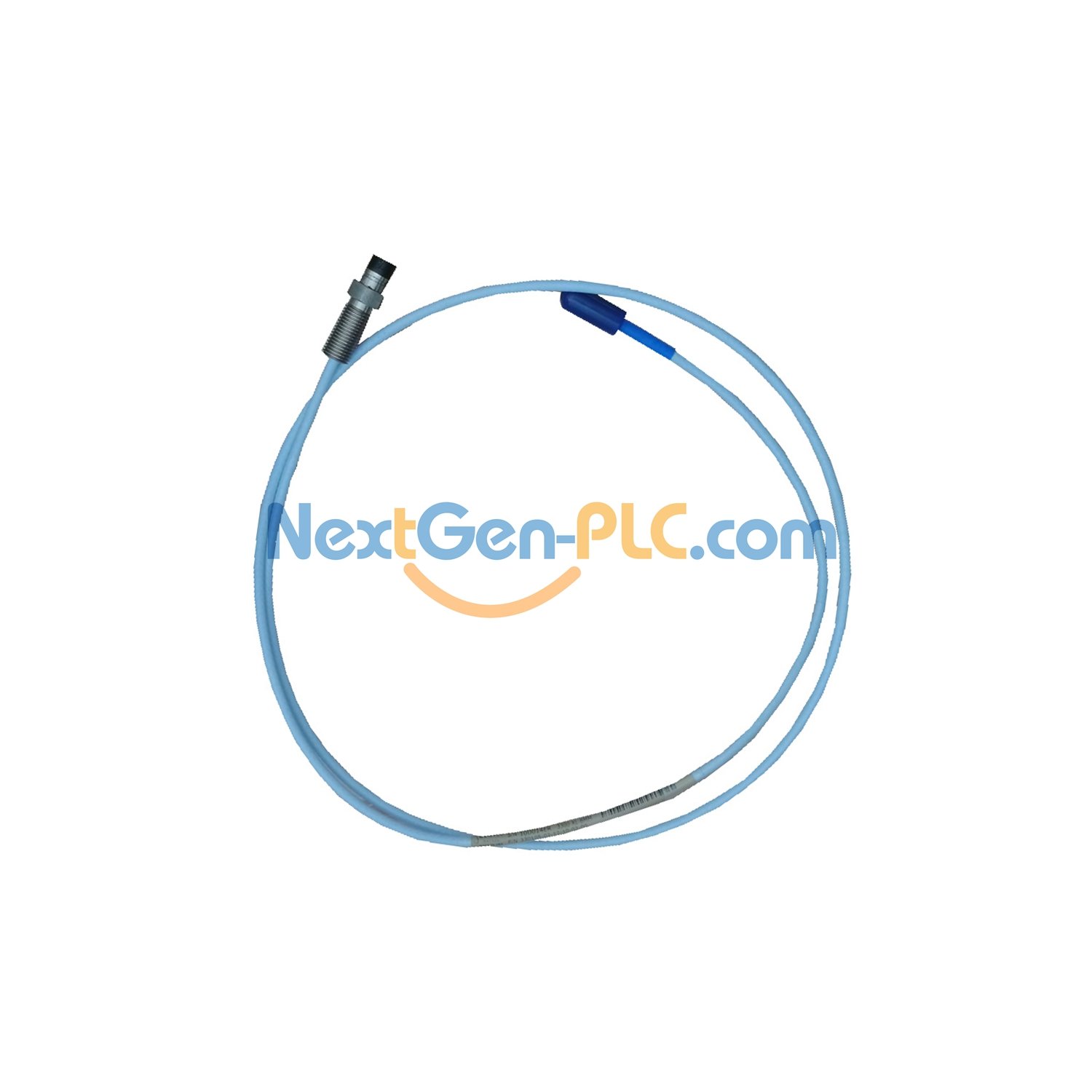

Bently Nevada 3300 XL 8mm Industrial Vibration Probe
Precision vibration monitoring sensor with rugged stainless steel construction for demanding industrial environments.
MODEL: 330104-04-10-05-01-00
├─ 330104 → 8mm Probe (M10×1 thread, armored)
├─ 04 → 40mm unthreaded section
├─ 10 → 100mm case length
├─ 05 → 0.5m (1.6ft) cable
├─ 01 → ClickLoc connector + protector
└─ 00 → Standard approvals
Technical Specifications
- Electrical: -17.5 to -26V DC, 12mA max
- Resistance: 7.45Ω ±0.50
- Output: 50Ω impedance
- Temperature: -55°C to +232°C
Construction
- Case: AISI 303/304 stainless steel
- Tip: PPS plastic
- Seal: Viton® O-ring
- Thread: M10×1
Key Features
- Precision 8mm sensing diameter
- Rugged stainless steel housing
- Secure ClickLoc connector system
- Short 0.5m cable for compact spaces
- Viton® sealed for harsh environments
- Made in USA quality
Installation Parameters
- Optimal gap: 1.27mm (50 mils)
- Target material: AISI 4140 steel
- Max altitude: 2000 meters
Typical Applications
Motor monitoring
Pump vibration
Compressor shafts
Turbine protection
Pump vibration
Compressor shafts
Turbine protection
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
