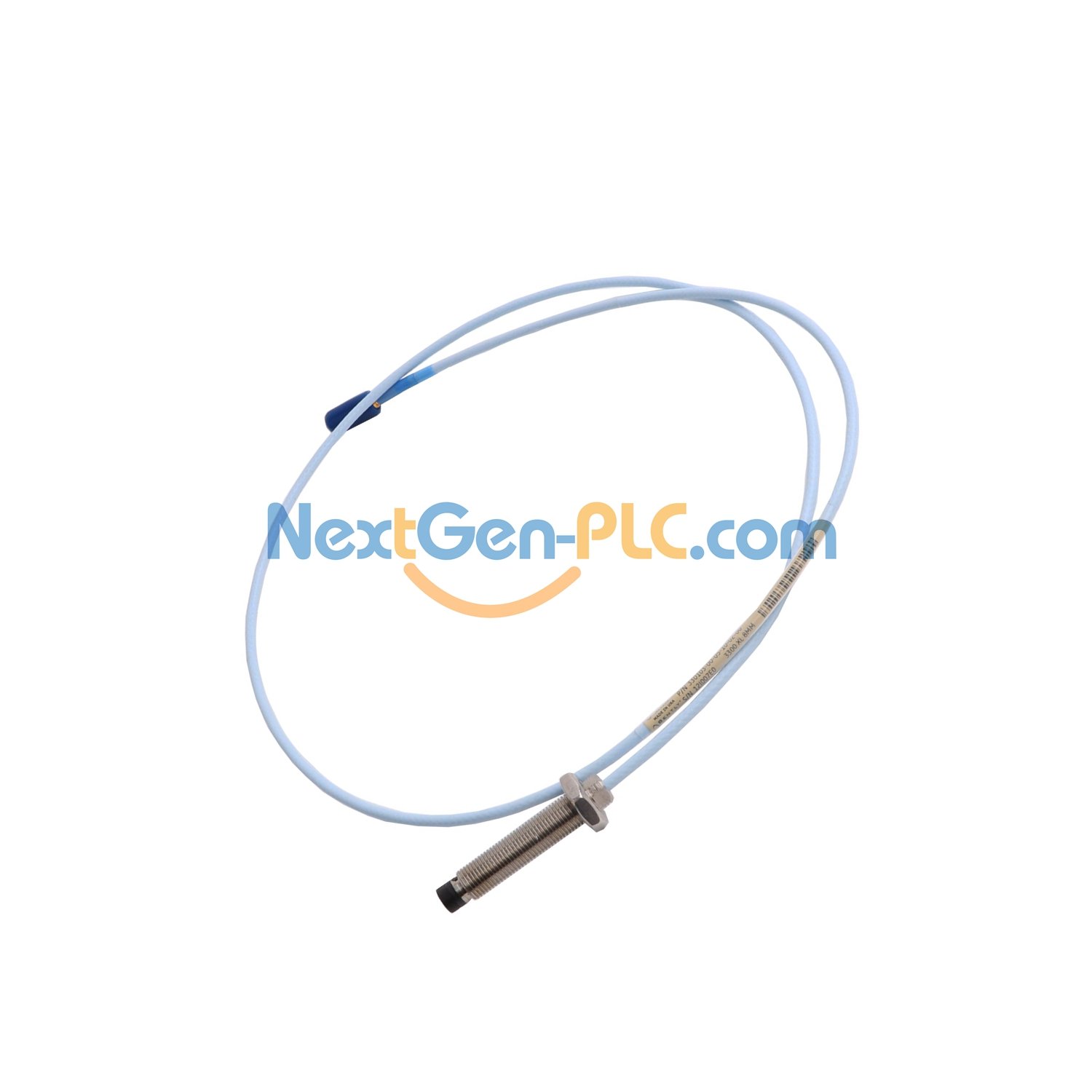

Bently Nevada 330104-00-24-10-02-00: 3300 XL 8mm Proximity Probe

What It Does

Designed for non-contact industrial measurements, this probe uses a rugged PPS tip and AISI 303/304 stainless steel case. Sealed with a Viton® O-ring to handle pressure, it delivers reliable data in tough environments—no extra approvals needed here.

Model Code Breakdown (Tree View)

• 330104 – Base: 3300 XL 8mm Probe (M10x1 thread, armored)
• -00
  Unthreaded Length: 0mm (no unthreaded section)
• -24
  Case Length: 240mm (full case length)
• -10
  Total Length: 1.0m (3.3ft) cable
• -02
  Connector: Miniature coaxial ClickLoc (standard cable)
• -00
  Approvals: No certifications required

Key Tech Specs

Brand: Bently Nevada
Part Number: 330104-00-24-10-02-00
Type: 3300 XL 8mm Proximity Probe
Probe Resistance: 7.59 ± 0.50Ω (1.0m cable)
Output Resistance: 50Ω (stable signal delivery)
Voltage Sensitivity: <2mV change per volt input (consistent performance)
Power Range: -17.5Vdc to -26Vdc (nonincendive); -23Vdc to -26Vdc (with barriers)
Temp Limits (Probe Only): -55°C to +232°C (T1) ↔ -55°C to +40°C (T5) (varies by rating)

Install Right

Use with:

Nonincendive circuits (Drawing 140979)
Zener barriers/galvanic isolators (Drawing 141092)
Set gap at 1.27mm (50 mils) with AISI 4140 steel target for best accuracy.

Works With

Pair with:

3300-series 5mm probes
3300 XL 8mm extension cables
Note: Accuracy only guaranteed with AISI 4140 steel targets.

Safety Notes

No mandatory approvals (-00 suffix). For hazardous zones, optional ratings apply when paired with barriers/isolators:

Class I, Zone 0 (Ga) for gas/dust
Class I, Zone 2 (Gc) for general use

What’s in the Box

1x 3300 XL 8mm Probe, 1x Miniature coaxial ClickLoc connector, 1x 1.0m standard cable.

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
