330104-00-02-15-02-05 | Bently Nevada | 8 mm Armored Probes

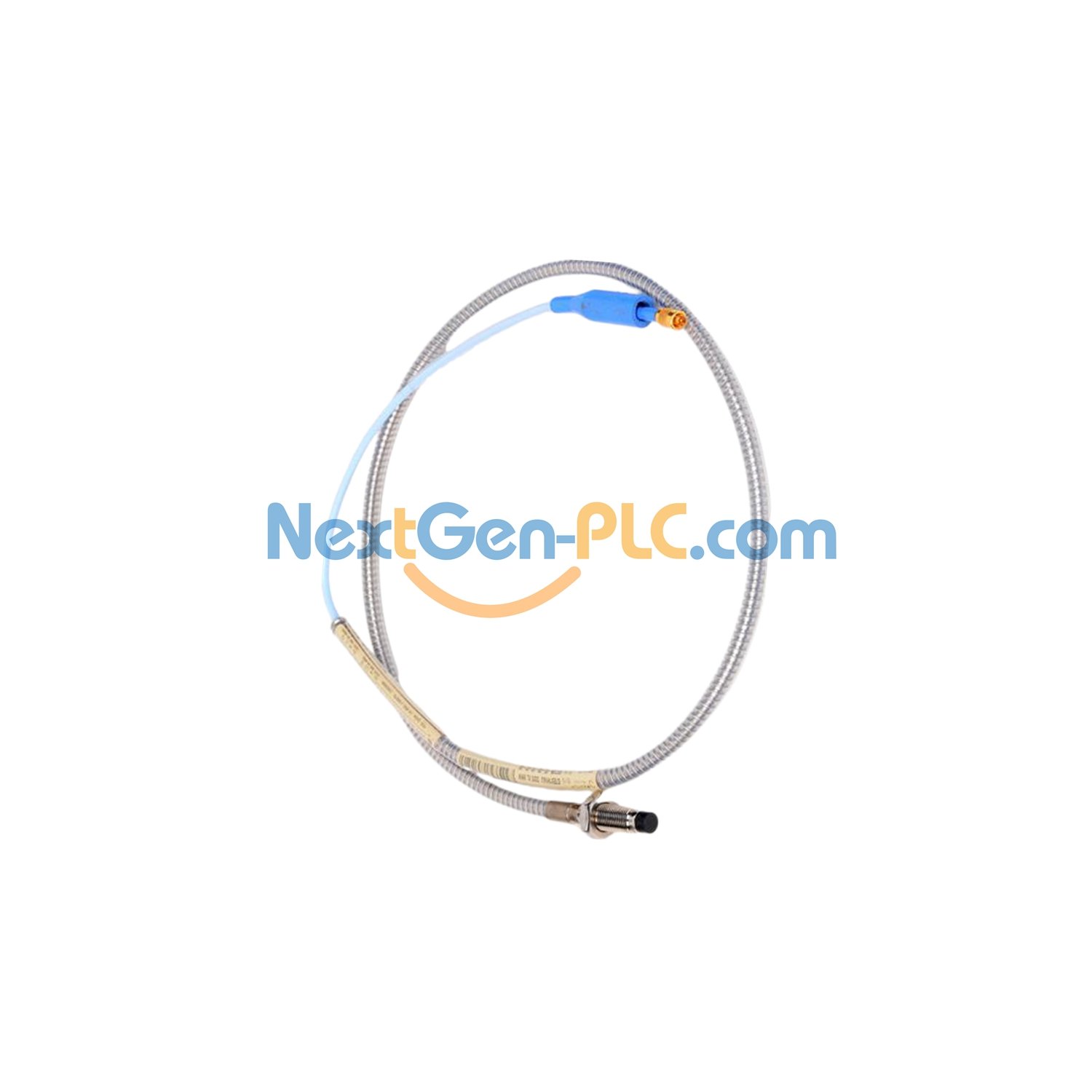

Bently Nevada 330104-00-02-15-02-05 3300 XL 8 mm Proximity Probe

Description

This 3300 XL 8 mm proximity probe by Bently Nevada is designed for non-contact measurement in industrial machinery monitoring. It features a durable stainless steel case, PPS probe tip, and a sealed O-ring design to handle pressure differences. Perfect for reliable performance in critical applications.

Technical Data

Brand: Bently Nevada
Model: 330104-00-02-15-02-05 (3300 XL 8 mm series)

Model Suffix Breakdown:

00: Unthreaded length (0mm)
02: Overall case length (20mm)
15: Total cable length (1.5m / 4.9ft)
02: Connector type (Miniature coaxial ClickLoc with standard cable)
05: Approvals (CSA, ATEX, IECEx)
Key Specifications:

Probe DC Resistance: 7.73 ± 0.50Ω (1.5m length)
Input Voltage: -17.5Vdc to -26Vdc (non-incendive), -23Vdc to -26Vdc (with barriers)
Output Resistance: 50Ω
Sensitivity: <2mV output change per 1V input change
Operating Temp: +18°C to +27°C (+64°F to +80°F)
Max Altitude: 2000m

Installation Guide

Connect using non-incendive circuits as per drawing 140979. Ensure proper gapping (1.27mm/50 mils) with AISI 4140 steel targets for best performance.

Compatibility

Works with 3300-series 5mm probes, 3300 XL 8mm probes, and compatible extension cables.

Certifications

CSA, ATEX, and IECEx approved for safe use in hazardous environments.

Package Includes

1x 3300 XL 8 mm Proximity Probe
1x User Manual

Download PDF fie here:3300 XL 8 mm Proximity Transducer System Datasheet</a
