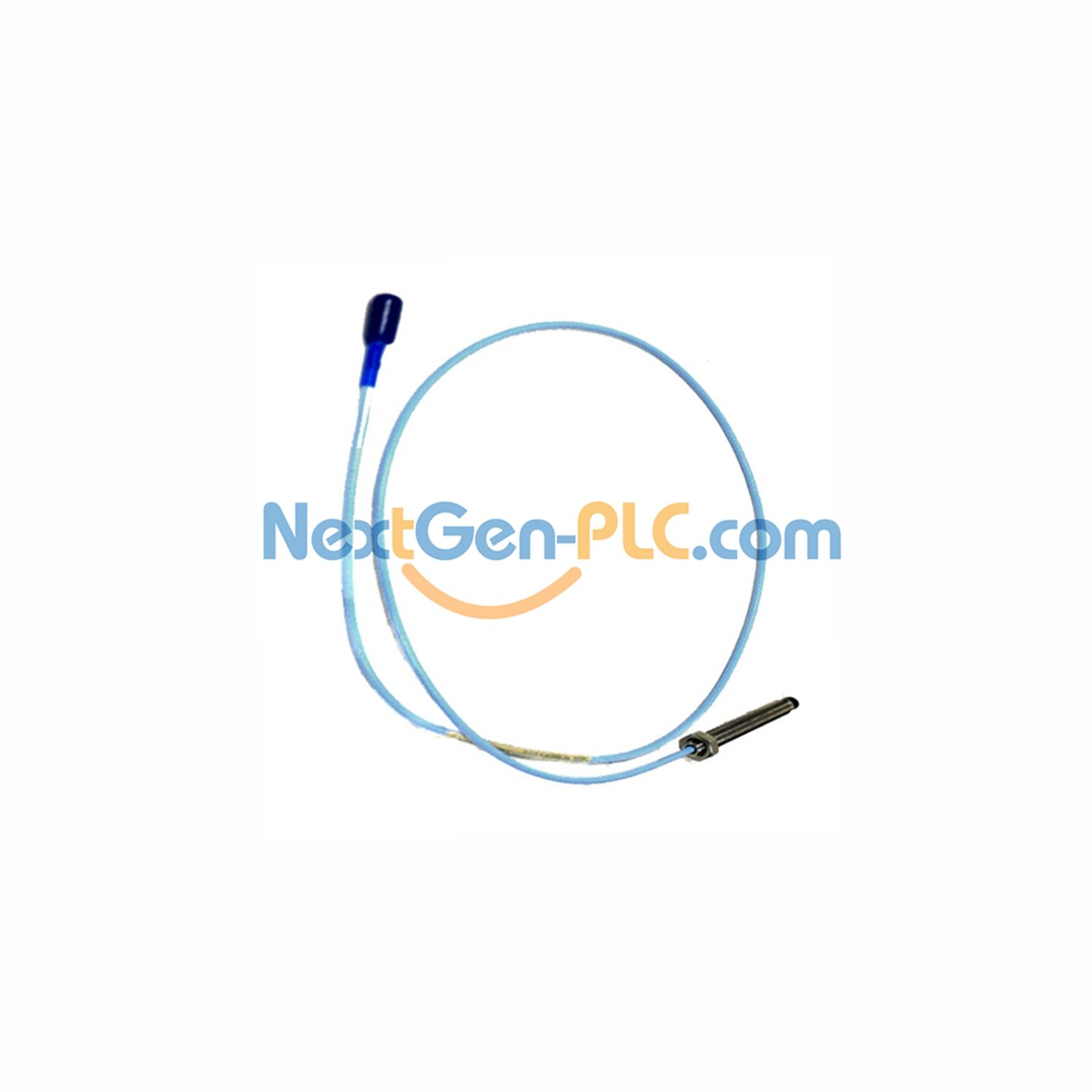

Bently Nevada 3300 XL 8 mm Proximity Probe (Model: 330103-00-15-10-02-CN)

Product Description

Ideal for industrial vibration monitoring, this 8mm proximity probe from Bently Nevada delivers reliable, high-precision measurements. Built with durable materials and advanced sealing, it works efficiently in challenging environments.

Technical Data

Model Suffix Breakdown

330103: Base model – 3300 XL 8mm probe with M10x1 thread (no armor).
00: Unthreaded length – 0mm.
15: Overall case length – 150mm.
10: Total length – 1.0 meter (3.3 feet).
02: Connector type – Miniature coaxial ClickLoc (standard cable).
CN: Country-specific agency approval.

Key Specifications

Linear Range: 2mm (80 mils) from 0.25mm to 2.3mm (10 to 90 mils).
Recommended Gap: -9 Vdc (≈1.27mm/50 mils).
Probe Resistance: 7.59Ω ±0.50Ω (1.0m length).
Materials: Probe tip – Polyphenylene sulfide (PPS); case – AISI 303/304 stainless steel.
Temperature Range:
Standard: -52°C to +177°C (-62°F to +350°F).
Extended (tip): -52°C to +218°C (-62°F to +425°F); cable/connector: -51°C to +260°C (-60°F to +500°F).

Installation Guide

Use 0.2-1.5mm² (16-24 AWG) wiring. Recommended: 3-conductor shielded triad cable with tinned ends. Max field wiring length: 305 meters (1,000 feet).

Compatibility

Designed for use with 3300 XL Proximitor Sensors. Signal quality may reduce at high frequencies with longer wiring – check frequency response graphs for details.

Certifications

Intrinsically Safe (ia): Class I Zone 0 (AEx/Ex ia IIC T5…T1 Ga); Class I Groups A/B/C/D, Class II E/F/G, Class III.
Nonincendive (nA/ec): Class I Zone 2 (AEx/Ex nA/ec IIC T5…T1 Gc); Class I Division 2 Groups A/B/C/D.

Package Includes

1x Probe Unit, 1x Miniature Coaxial ClickLoc Connector, 1x User Manual (basic setup instructions).
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
