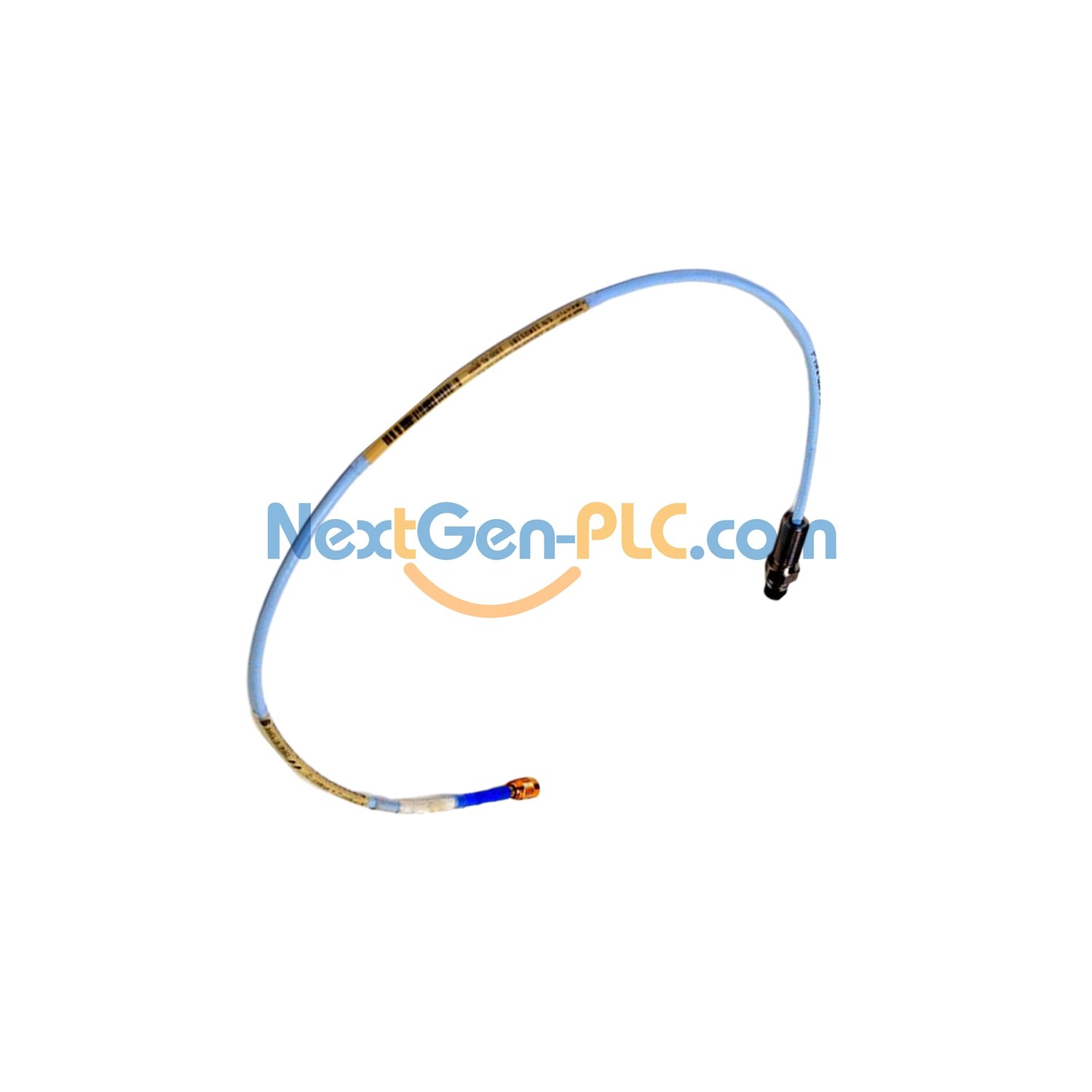

Bently Nevada 3300 XL 8mm Proximity Probe
Model: 330103-00-11-10-12-00
Probe Dimensions
8.0mm sensing tip
110mm stainless steel body
Measurement Range
0.25mm → 2.3mm
(-1V to -17V output)
Temperature Range
-52°C to +177°C
(-62°F to +350°F)
Model Number Architecture
┬ 330103 (Base 8mm Probe)
├─┬ 00 (Unthreaded Length)
│ └── 0mm smooth section
├─┬ 11 (Case Length)
│ └── 110mm stainless body
├─┬ 10 (Cable Length)
│ └── 1.0 meter (3.3ft)
├─┬ 12 (Connector Type)
│ └── ClickLoc + FluidLoc®
└─┬ 00 (Approvals)
└── Standard certification
├─┬ 00 (Unthreaded Length)
│ └── 0mm smooth section
├─┬ 11 (Case Length)
│ └── 110mm stainless body
├─┬ 10 (Cable Length)
│ └── 1.0 meter (3.3ft)
├─┬ 12 (Connector Type)
│ └── ClickLoc + FluidLoc®
└─┬ 00 (Approvals)
└── Standard certification
Precision Specs
- Resistance: 7.59Ω ±0.50
- Optimal Gap: 1.27mm (50 mils)
- Weight: 323g/m (11.4 oz/ft)
Durability Features
- Viton® O-ring seals
- PPS thermoplastic tip
- AISI 303/304 SST housing
Installation Guide
- Mount with M10×1 thread (max 15mm engagement)
- Set 1.27mm gap from target surface
- Use shielded triad cable (0.2-1.5mm²)
- Max 305m (1000ft) to monitor
⚠️ Critical: Avoid sustained temperatures below -34°C (-30°F)
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
