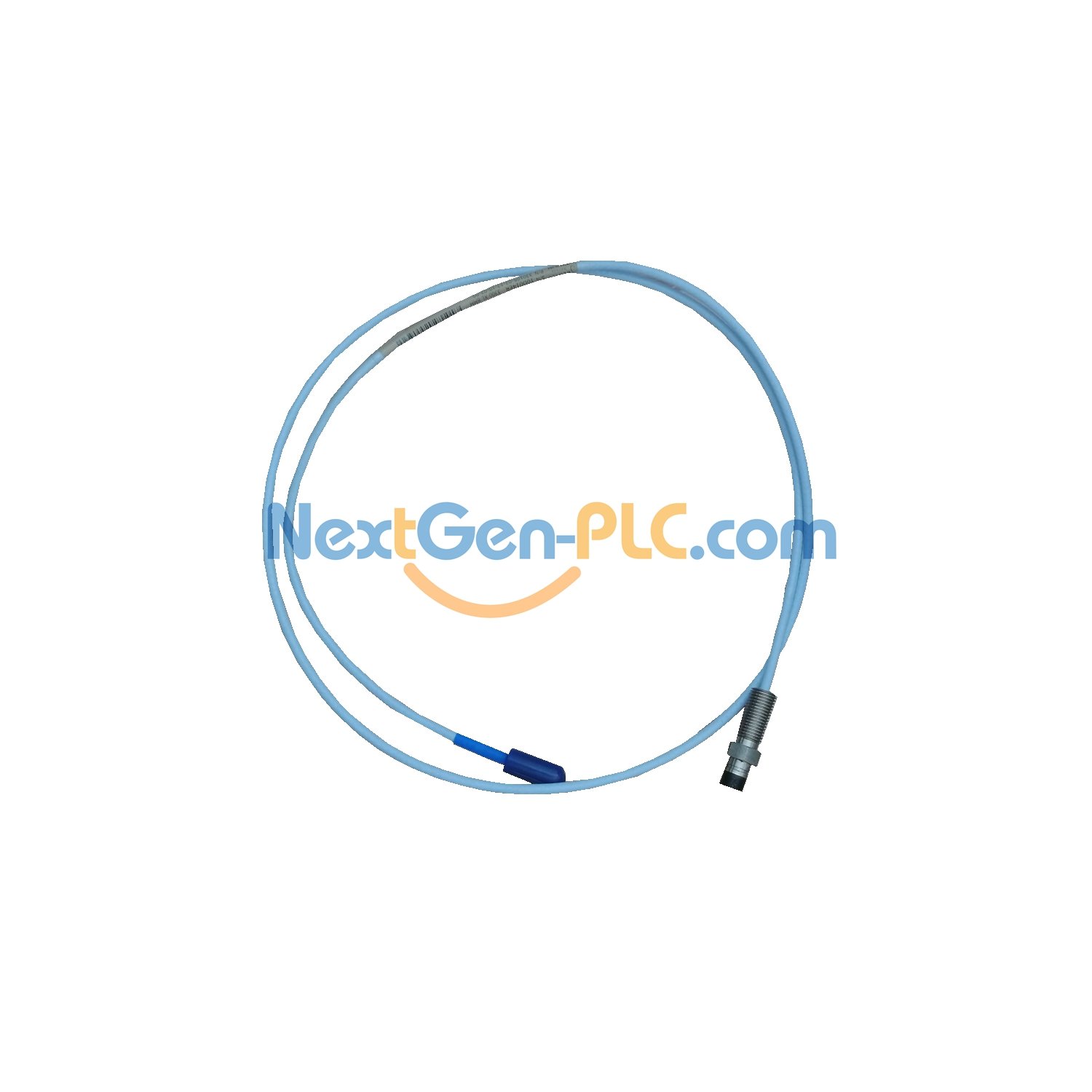

Bently Nevada 3300 XL 8 mm Proximity Probe – Model 330103-00-06-10-12-05

What You Get

A top-tier vibration monitoring sensor built for tough industrial use. Features a PPS tip, stainless steel body, and rugged FluidLoc cable—designed to perform in extreme temperatures and high humidity.

Model Code Explained (330103-00-06-10-12-05)

330103: Base 8mm probe (M10x1 thread, no armor)
00: Unthreaded length (0mm)
06: Case length (60mm)
10: Total cable length (1.0m/3.3ft)
12: Connector (Miniature coaxial ClickLoc + FluidLoc cable)
05: Includes CSA, ATEX, IECEx approvals

Key Features at a Glance

Linear Range: 2mm (80 mils) | Works from 0.25-2.3mm (10-90 mils)
DC Resistance: 7.59 ± 0.50Ω (1.0m cable)
Temp Range (Standard): -52°C to +177°C (-62°F to +350°F)
Extended Tip Temp: -52°C to +218°C (-62°F to +425°F)
Materials: PPS tip + AISI 303/304 stainless steel body
Humidity Resistance: <3% signal change at 93% humidity (56 days max)

Installation & Compatibility

Wiring: Use 0.2-1.5mm² (16-24 AWG) wires. Best with 3-conductor shielded triad (tinned).
Max Distance: 305m (1,000ft) between probe and monitor. Longer wires may reduce high-frequency signals.
Pair With: 3300 XL Proximitor Sensors for full system performance.

Safety Certifications

Intrinsically Safe (ia): Class I Zone 0, AEx/Ex ia IIC T5…T1 Ga
Nonincendive (nA/ec): Class I Zone 2, AEx/Ex nA/ec IIC T5…T1 Gc
Additional Approvals: CSA, ATEX, IECEx (via suffix “05”)

Package Includes

1x 3300 XL 8mm Probe (M10x1 thread, no armor)
1x 1.0m FluidLoc cable with Miniature coaxial ClickLoc connector

Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet</a
