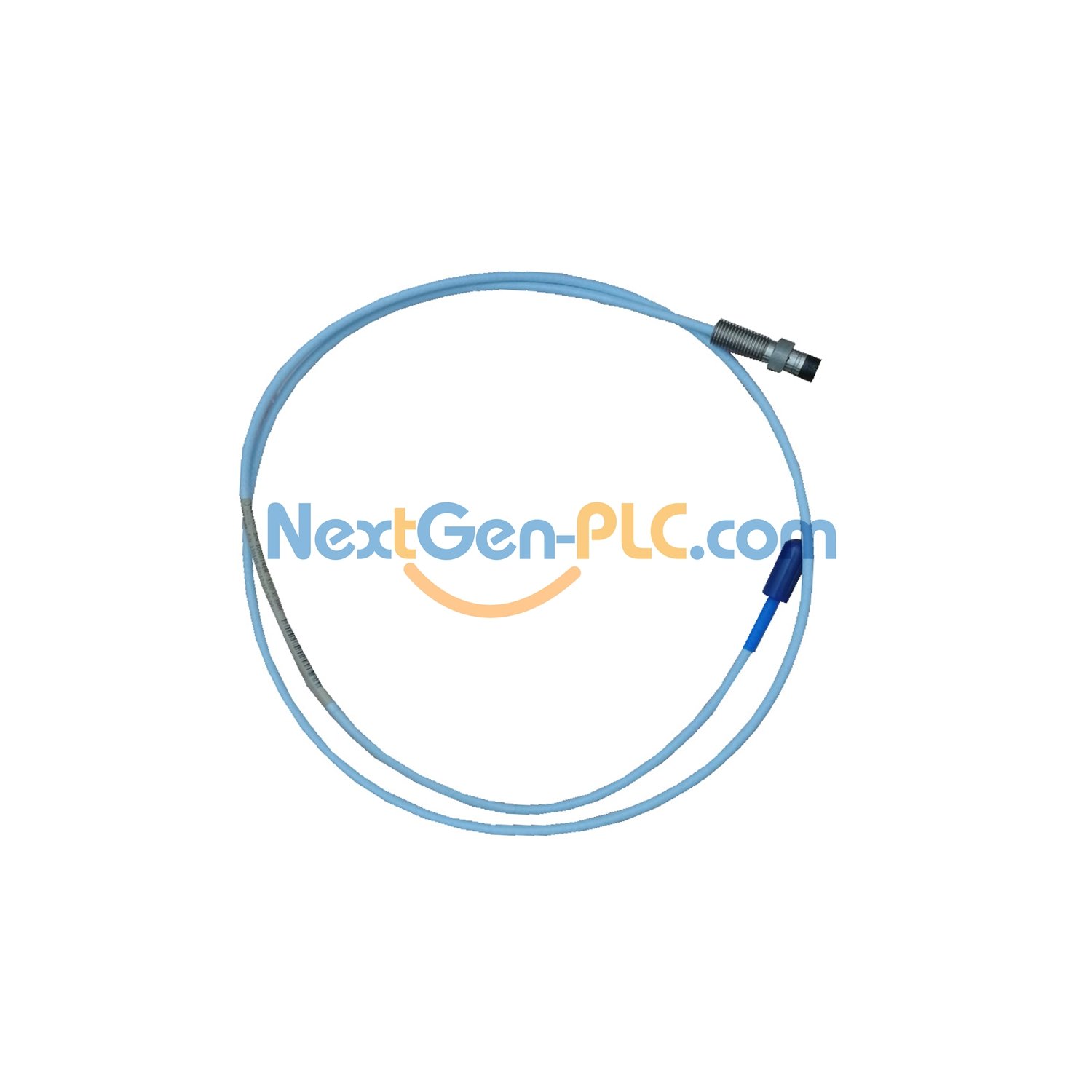

Bently Nevada 330103-00-04-10-02-00 3300 XL 8mm Proximity Probe

1. Core Purpose

A compact, industrial-grade sensor for monitoring machine vibration. Ideal for tight spaces in factories or workshops, this 8mm probe from Bently Nevada delivers reliable performance in tough environments.

2. Model Breakdown

Let’s decode 330103-00-04-10-02-00:

330103: Base 8mm probe (M10x1 thread, no armor)
00: Unthreaded length (0mm)
04: Case length (40mm)
10: Total probe length (1.0m / 3.3ft)
02: Connector type (mini coaxial ClickLoc + standard cable)
00: No special safety approvals needed

3. Key Specs

Measure Range: 2mm (80 mils), from 0.25mm (10 mils) to 2.3mm (90 mils)
DC Resistance: 7.59Ω ±0.50Ω (for 1m length)
Temperature Range: Works from -52°C to +177°C (-62°F to +350°F). Tip handles up to +218°C (+425°F).
Cable Limit: Up to 305m (1,000ft) between probe and monitor

4. Build Quality

Tip Material: PPS (polyphenylene sulfide) – heat-resistant, durable plastic.
Case Material: AISI 303/304 stainless steel – rust-proof, long-lasting.
Seal: Viton O-ring – seals pressure between tip and case.
Weight: 323g/m (11.4oz) – lightweight but sturdy.

5. Safety Ratings

Explosive Zones (ia): Safe for Class I Zone 0 (Groups A-D), Class II (Groups E-G).
Non-Explosive Zones (nA/ec): Safe for Class I Zone 2 (Division 2, Groups A-D).

6. Installation Tips

Use 3-conductor shielded cable (0.2-1.5mm² / 16-24 AWG).
Tin field wiring for better connections.
Avoid temperatures below -34°C (-30°F) to prevent seal damage.

7. Compatibility

Designed to work with 3300 XL Proximitor Sensors for full system integration.

8. What’s Included

1x 330103-00-04-10-02-00 proximity probe unit.
Download PDF file here:3300 XL 8 mm Proximity Transducer System Datasheet
